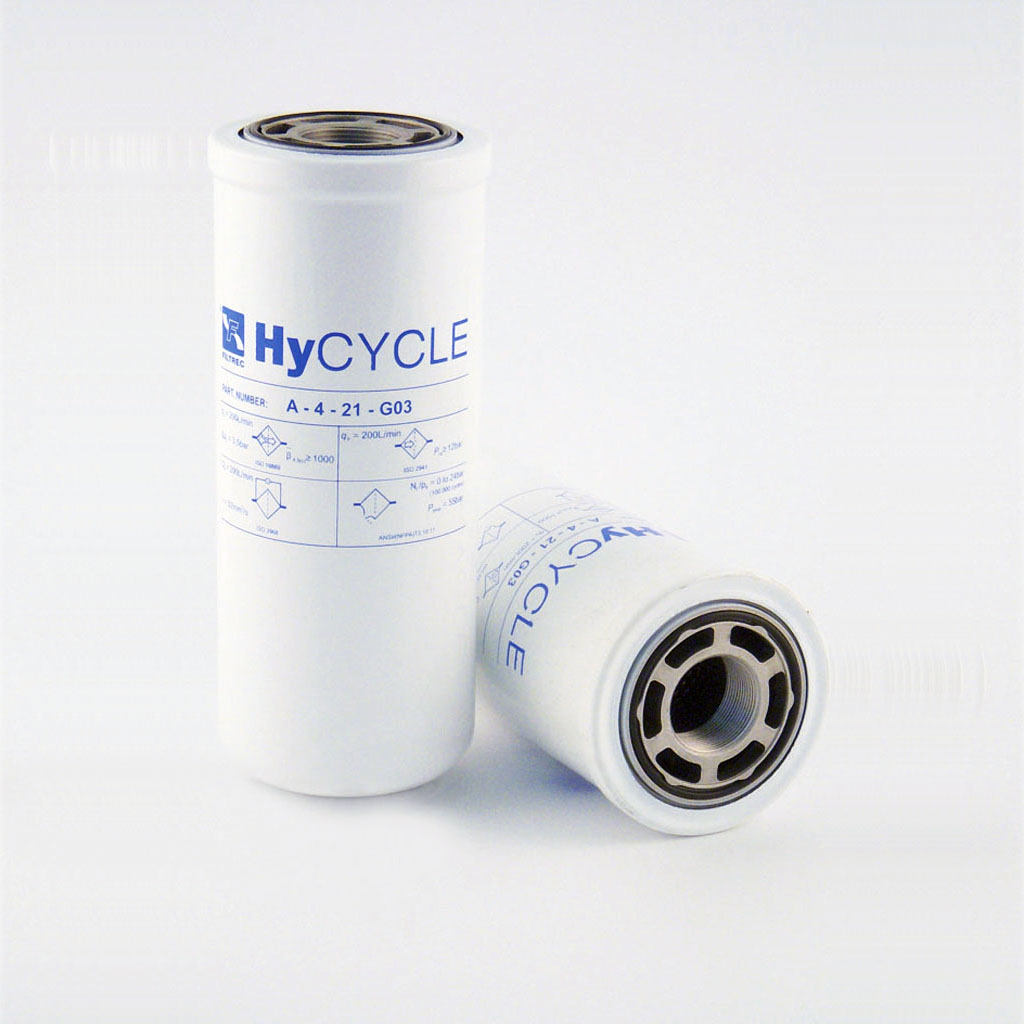

FILTREC A421G10
Filtrec
Filtrec produces a huge range of quality hydraulic filter elements, cartridges and spin-on cannisters to replace the majority of hydraulic filter brands. Each hydraulic filter is carefully designed to ensure full dimensional compatibility and meet or exceed the filtration performance of the original.
Product Features:
FILTREC A421G10
| OD (D1) (MM) | ID (D2) (MM) | LENGTH 1 (H1) (MM) | LENGTH 2 (H2) (MM) | THREAD SIZE | MEDIA/MICRON RATING | COLLAPSE PRESSURE (BAR) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | BYPASS FITTED | BYPASS SETTING (BAR) | FLOW DIRECTION | SEALS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 117 | 0 | 297.5 | 0 | 1 3/4"-12 UN 2B | G10 | 12 | 24 | 55 | NO | 0 | OUT-IN | NBR |
FILTREC FA-4 INLINE PRESSURE AND RETURN SPIN ON FILTERS
Technical Information
In line pressure and return spin-on filter assemblies.
Max flow rate: 200 l/min
Max working pressure: As per NFPA T 3.10.17
Test pressure: As per NFPA T 3.10.17
Burst pressure: As per NFPA T 3.10.17
Pressure fatigue test: As per NFPA T 3.10.17
Connection Ports: BSP, NPT
By-pass setting: 3,5 Bar (50psi)
Indicator: Visual and Electrical
Working temperature: -25C + 120C
Materials: Head aluminium
Housing: Carbon stell
Seal Buna-N / Viton
Filter Element
Filter media: Microglass fiber 3,6,10,15,25,40um
Cellulose 10, 25um
Wire mesh 150um
Collapse pressure: As per ISO 2941
THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITY OF 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERING TO THE TECHNICAL INFORMATRION.
Manufacturers code: A421G10
| MANUFACTURER | STOCK CODE |
|---|---|
| BALDWIN | BT8313MPG |
| BALDWIN | BT8879MPG |
| BALDWIN | BT8911MPG |
| BLOUNT | 10061130 |
| CASE | 87308937 |
| CASE | N9086 |
| CHARLES MACHINE | 157486 |
| CHARLES MACHINE | 432140 |
| CHARLES MACHINE | 432140A |
| CHARLES MACHINE | VLS012A |
| CNH | 85802793 |
| DONALDSON | P165659 |
| DONALDSON | P176567 |
| DONALDSON | P176779 |
| FAI FILTRI | CSD40000A10A |
| FLEETGUARD | HF6547 |
| GEHL | 137359 |
| IKRON | HHC02760 |
| JOHN DEERE | F435511 |
| MAIN FILTER | MF0575553 |
| NEW HOLLAND | 9821388 |
| SAME | 244197300 |
| TIMBERJACK | F434370 |
| TIMBERJACK | F435201 |
| VOLVO | 11037868 |
