Flowfit Gear Pumps

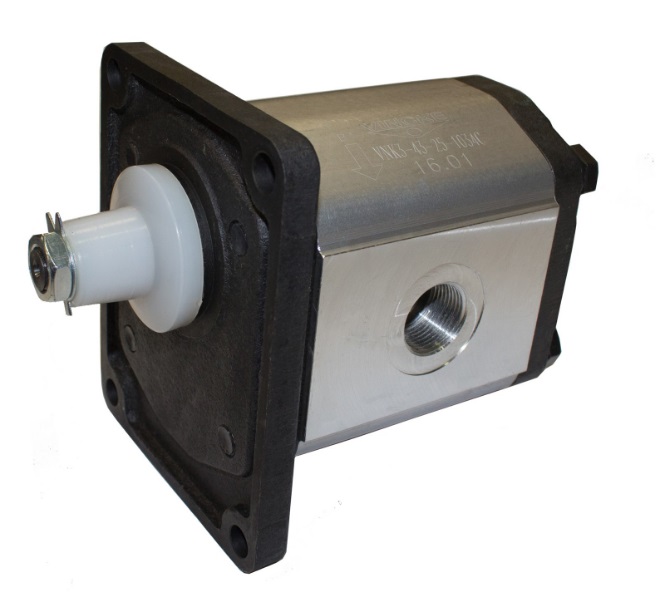

Flowfit Hydraulic Gear Pump, GP1, 1.1CC, Clockwise 3/8" Inlet & 3/8" Outlet BSP Ports, 4 Bolt EU Flange

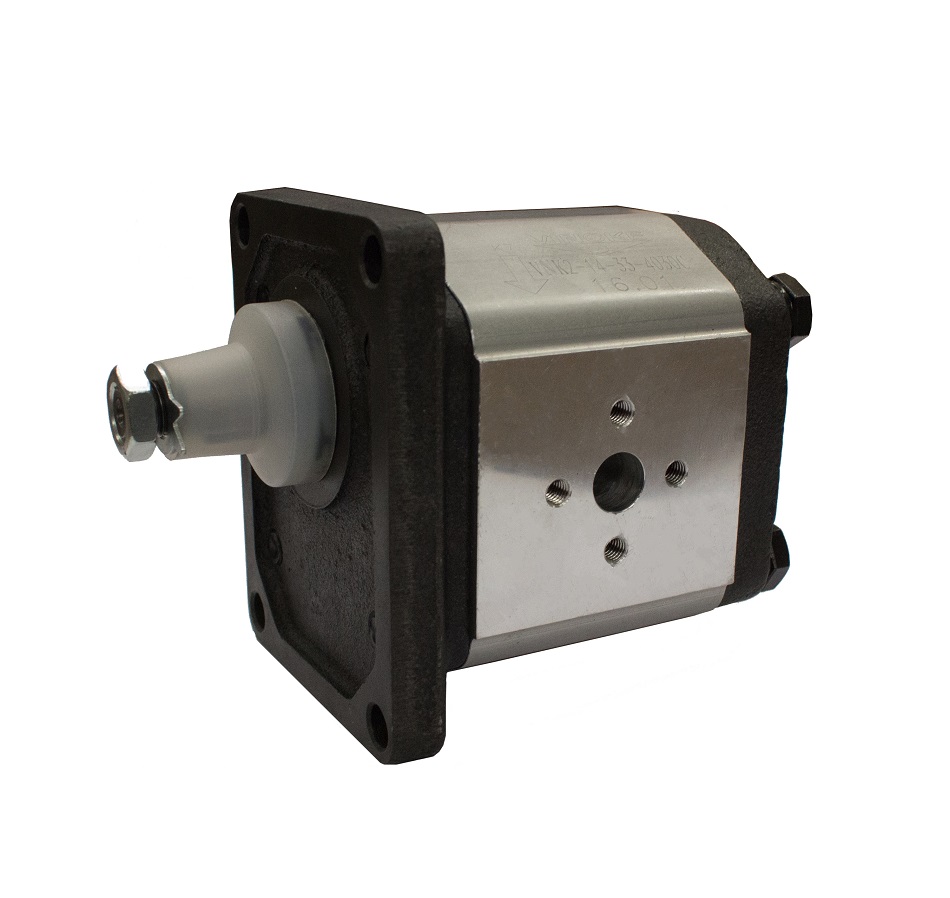

Flowfit Hydraulic Gear Pump, GP1, 1.1CC, Clockwise 30mm Inlet & 30mm SQ Outlet Flanged Ports, 4 Bolt EU Flange

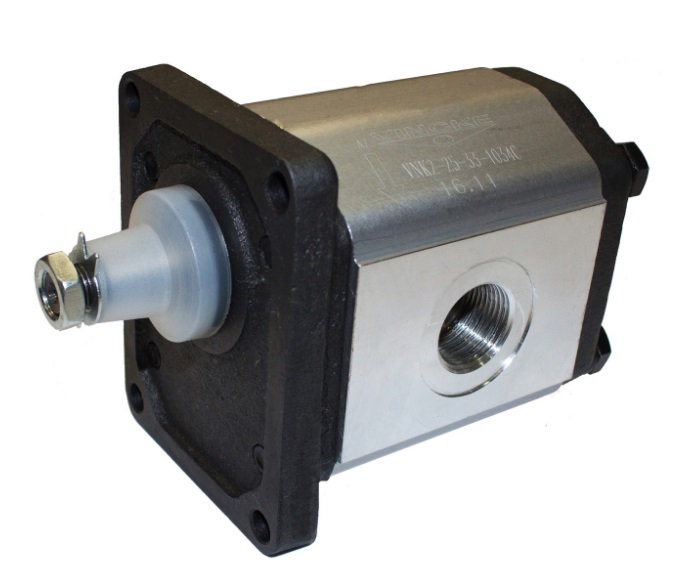

Flowfit Hydraulic Gear Pump, Group 2, 4.0CC, Clockwise 1/2" Inlet & 3/8" Outlet BSP Ports, 4 Bolt EU Flange
Flowfit Hydraulic Gear Pump, Group 2, 4.0CC, Clockwise 30mm Inlet x 30mm Outlet Flanged Ports, 4 Bolt EU Flange
Flowfit Hydraulic Gear Pump, Group 3, Clockwise 25CC, 1" Inlet & 3/4" Outlet BSP Ports, 4 Bolt EU Flange

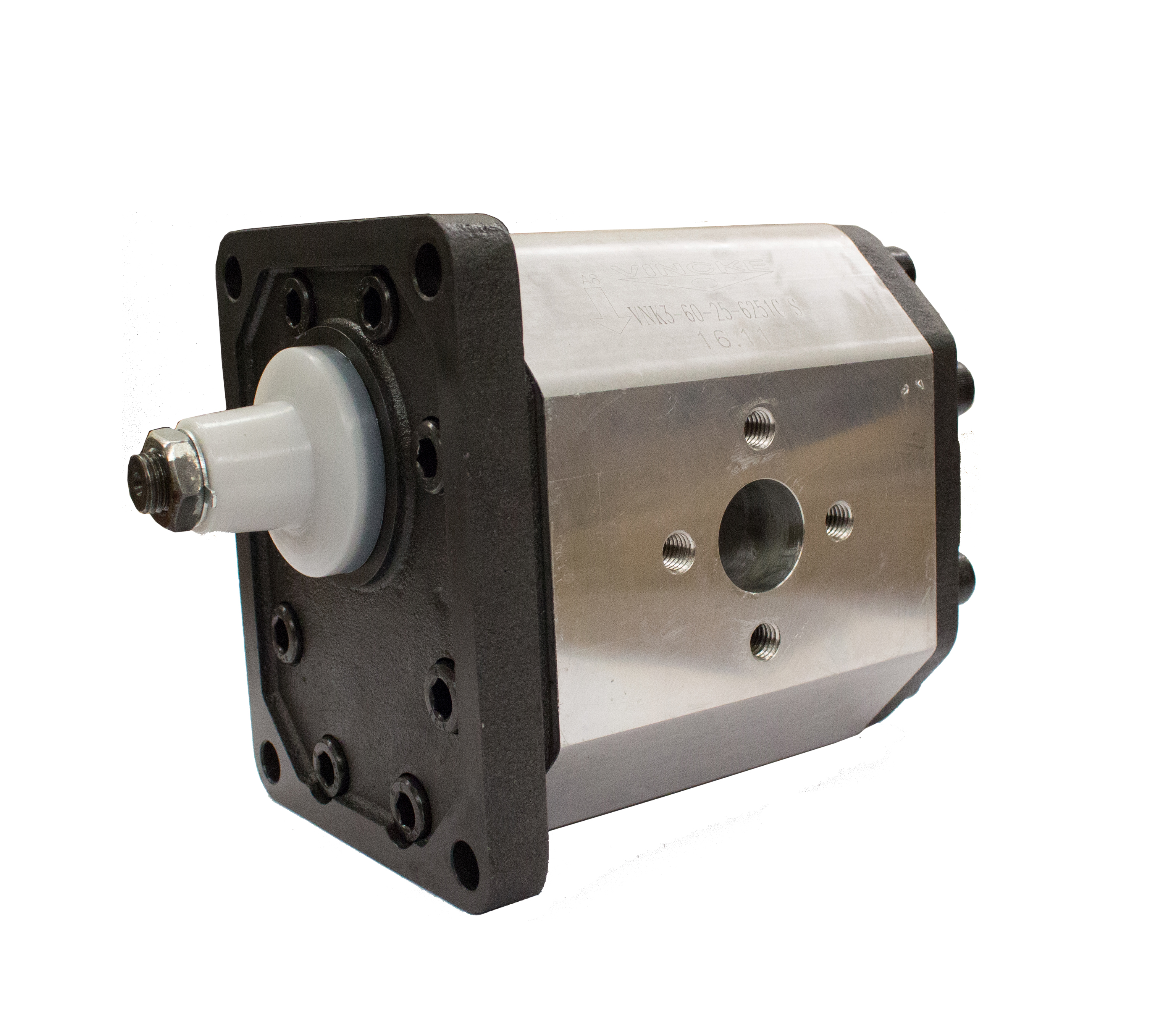

Flowfit Hydraulic Gear Pump, Group 3, Clockwise 25CC, 51mm Inlet x 40mm Outlet Flanged Ports, 4 Bolt EU Flange
Flowfit Hydraulic Gear Pumps - High-Pressure Solutions In Stock
Stop waiting and start powering your machinery today. Flowfit hydraulic gear pumps are the industry standard for reliable, high-pressure fluid transfer across industrial, residential, and commercial applications. With an expansive range and guaranteed stock availability, you can find the perfect pump to meet your exact hydraulic needs and get it fast.
Why Choose Flowfit Gear Pumps?
Unmatched Versatility: Available in 31 displacements ranging from 0.8cc to a powerful 89cc.
High-Pressure Performance: Built to handle extreme demands with working pressures of up to 300 Bar.
Ready to Ship: We stock a vast inventory of our most popular Flowfit Gear Pumps:
Universal Compatibility: All pumps come standard with essential features for fast installation:
- Industry-standard 1:8 taper shafts.
- 4-bolt European flange mounting.
- Both BSP and Flanged ports.
Understanding Hydraulic Gear Pumps: High Flow & Efficiency
Hydraulic gear pumps operate using simple, efficient design principles. By utilising interlocking cogs and gears that rotate, they continuously draw in and transfer fluid, creating the necessary suction at the inlet to establish a tight liquid seal within the pump enclosure.
External Gear Pumps: A motor drives one gear, which in turn drives a second, ensuring powerful fluid displacement.
Internal Gear Pumps: Feature a compact design where a larger, internally-toothed gear rotates a smaller spur gear.
The Benefits of Hydraulic Gear Pumps
Known for their robust and reliable performance, hydraulic gear pumps are a preferred choice because of their:
- Straightforward, Efficient Design
- Self-Priming Capability
- Suitability for High Flow Rates and Pressures
- Bi-Directional Operation (on many models) for enhanced versatility
Need a Custom Solution?
While our standard range is extensive and available for immediate purchase, we understand complex systems may require special configurations.
For alternative port configurations, mounting flanges, or shaft options, please contact our dedicated sales team directly.
Call us on 01584 876 033 or email us at sales@flowfionline.com to discuss your custom hydraulic requirements.
