Swept Elbow Hydraulic Adaptors

Swept Elbow Hydraulic Adaptors

Flowfit supplies a wide range of swept elbow hydraulic adaptors for industrial, agricultural, construction, commercial and mobile hydraulic systems. These adaptors are designed to help change the direction of a hydraulic connection while supporting smooth, reliable oil flow.

Our range includes male to female swept elbows, male to male swept elbows and female to female swept elbows, making it easier to route hydraulic hoses, pipework and components neatly through compact or awkward spaces.

Hydraulic Elbow Adaptors for Hose Routing

Swept elbow hydraulic adaptors are useful where a straight fitting is not suitable due to space, alignment or hose routing requirements. Their angled design helps direct the hydraulic connection around machinery, frames, guards and other components.

By helping to improve hose positioning, swept elbow adaptors can reduce unnecessary strain on hydraulic hoses and fittings, supporting a cleaner and more reliable installation.

Male to Female, Male to Male and Female to Female Swept Elbows

Swept elbow hydraulic fittings are available in different connection styles to suit a wide range of hydraulic systems. Male to female swept elbows are used to connect compatible male and female threaded components, while male to male and female to female swept elbows allow matching threaded components to be joined at an angle.

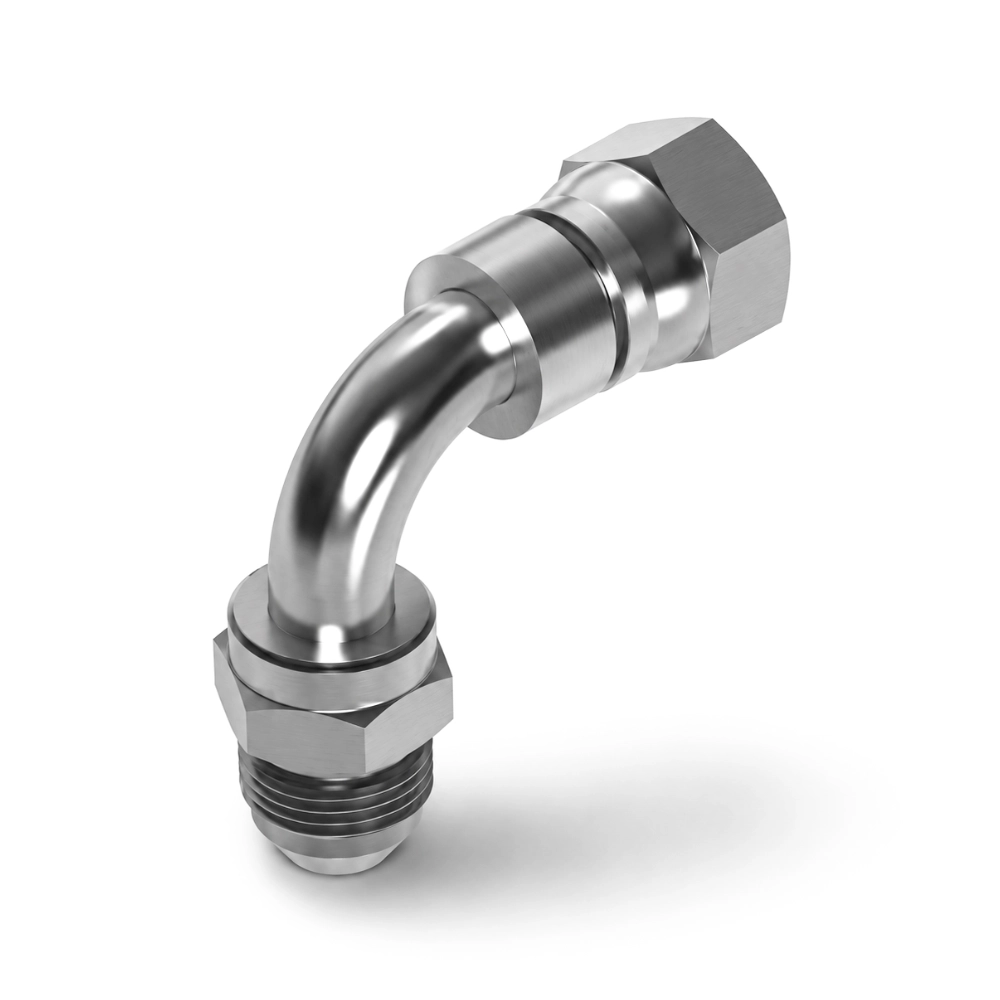

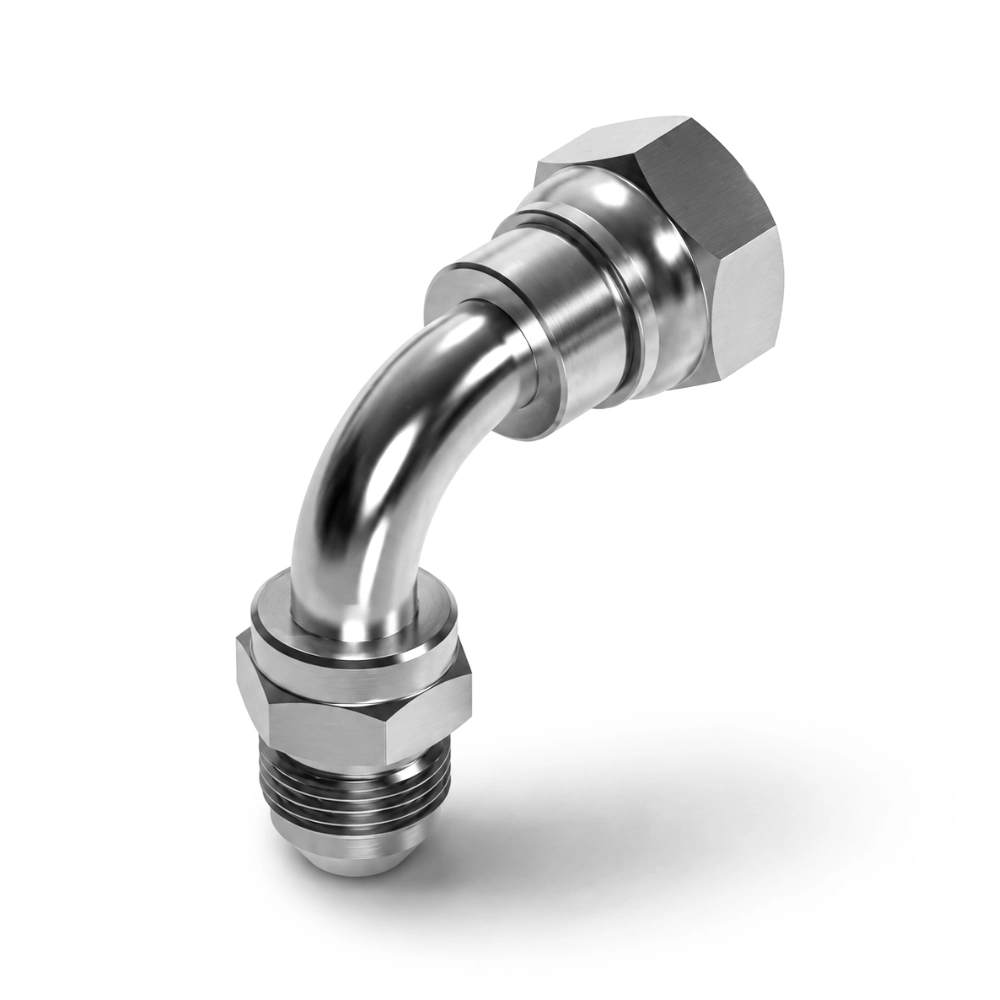

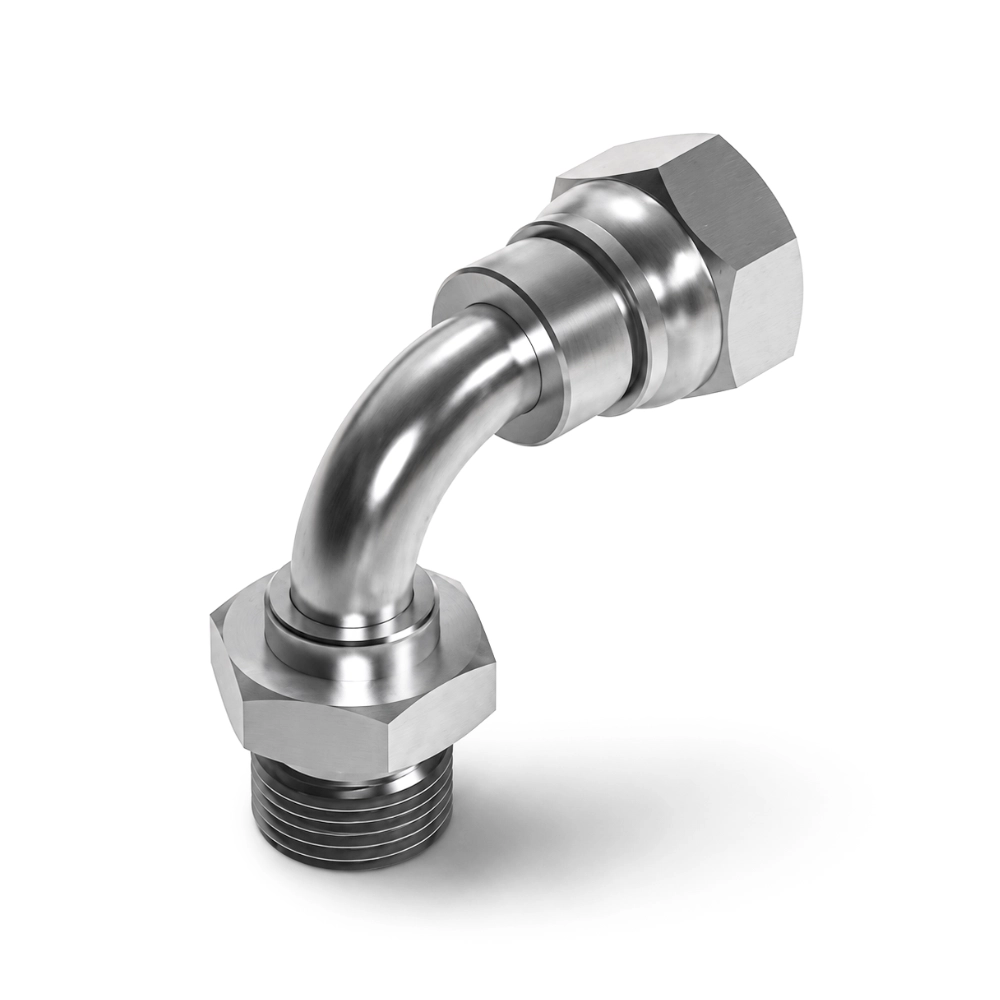

• Male to female swept elbows for adapting hydraulic hose and port connections

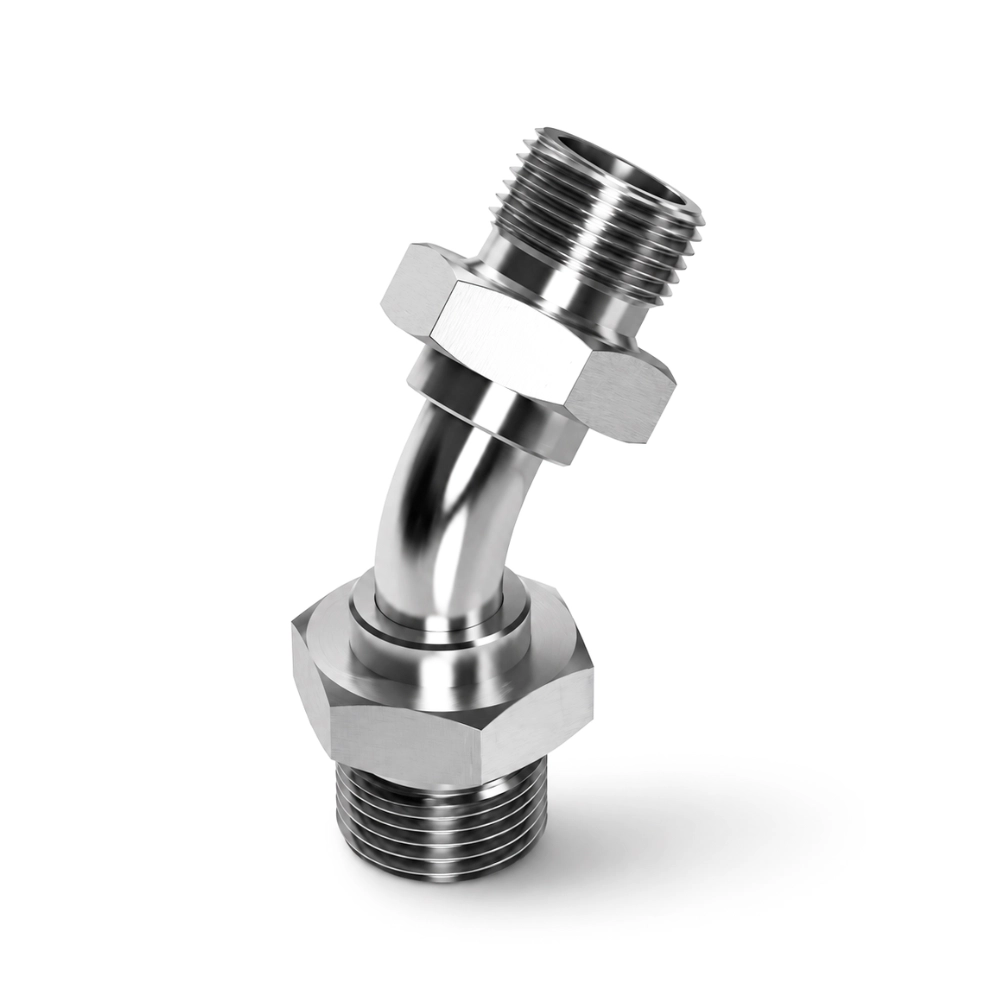

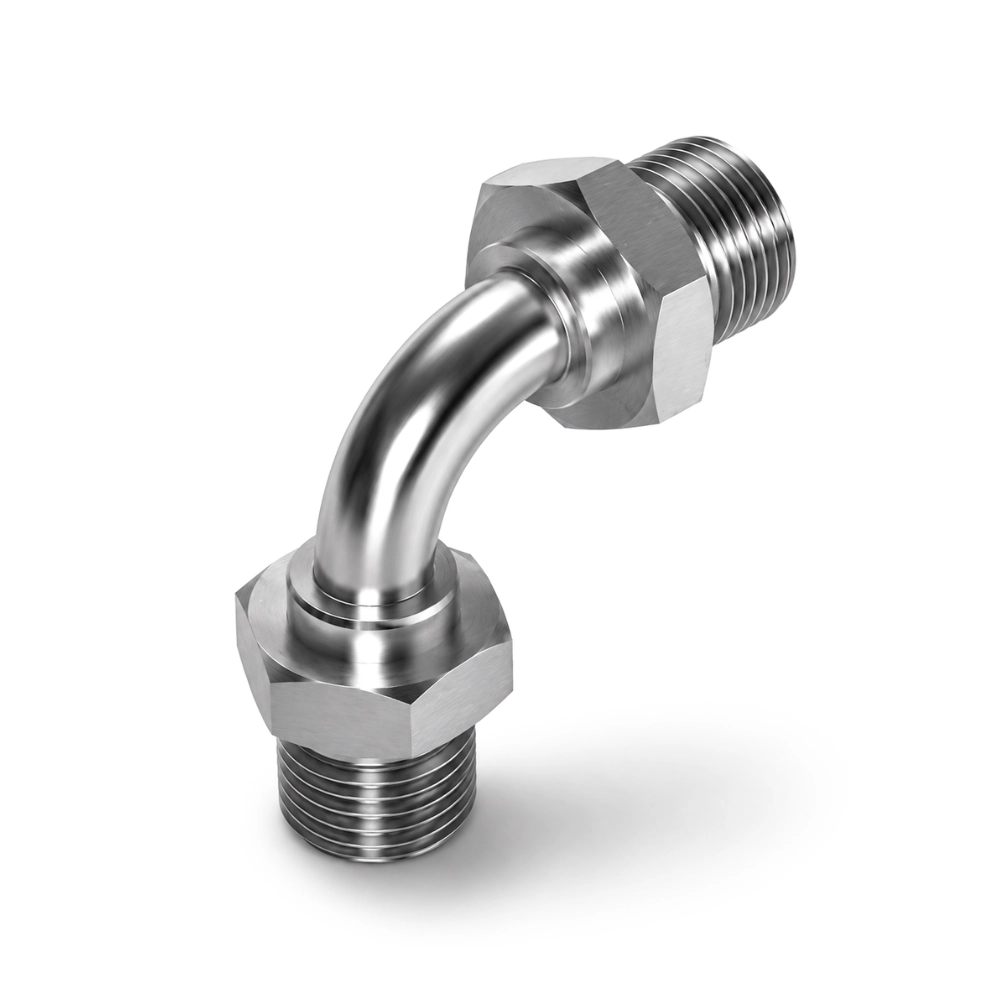

• Male to male swept elbows for connecting compatible female threaded components

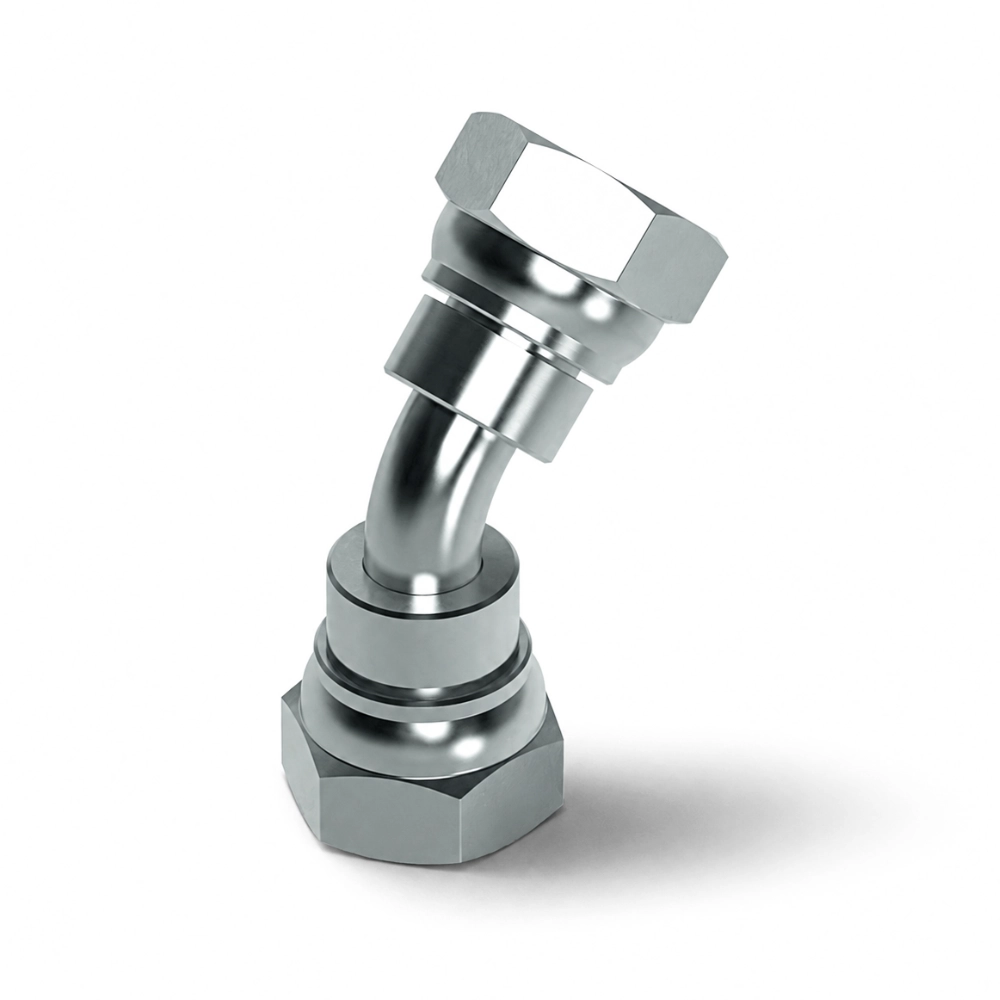

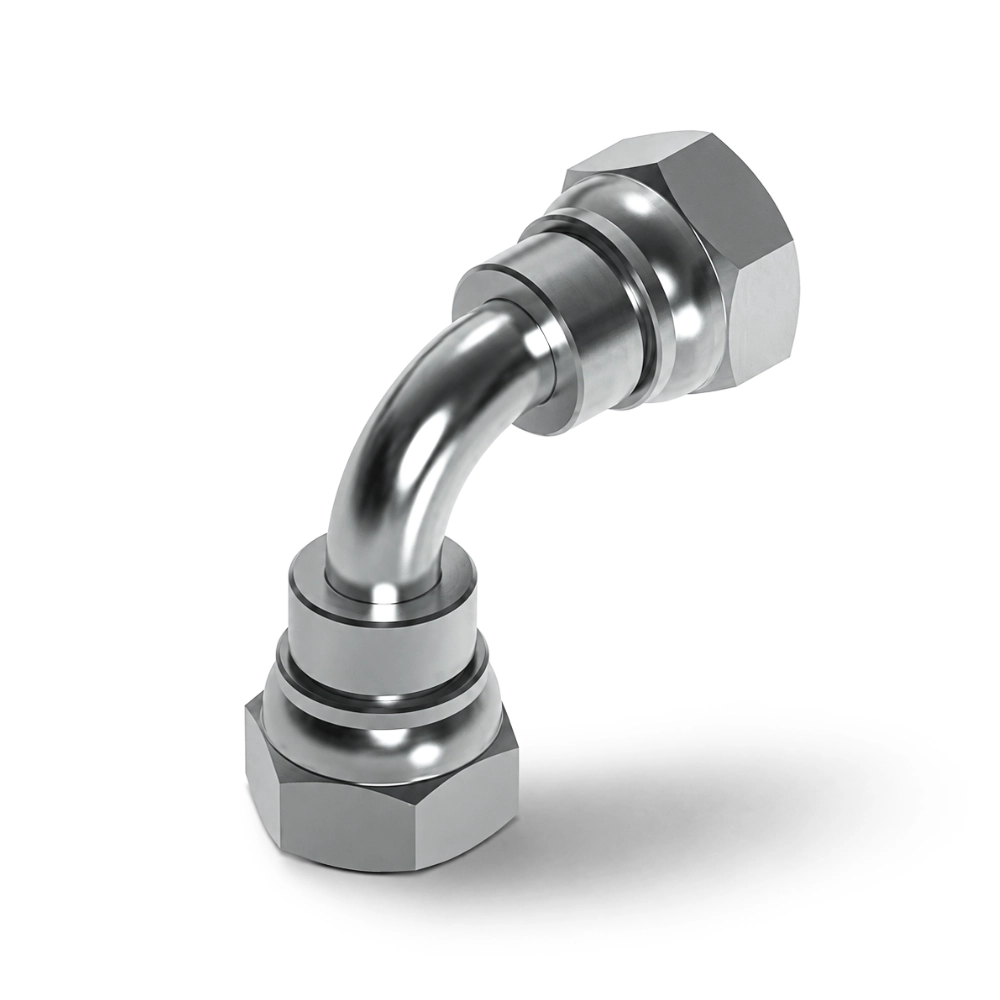

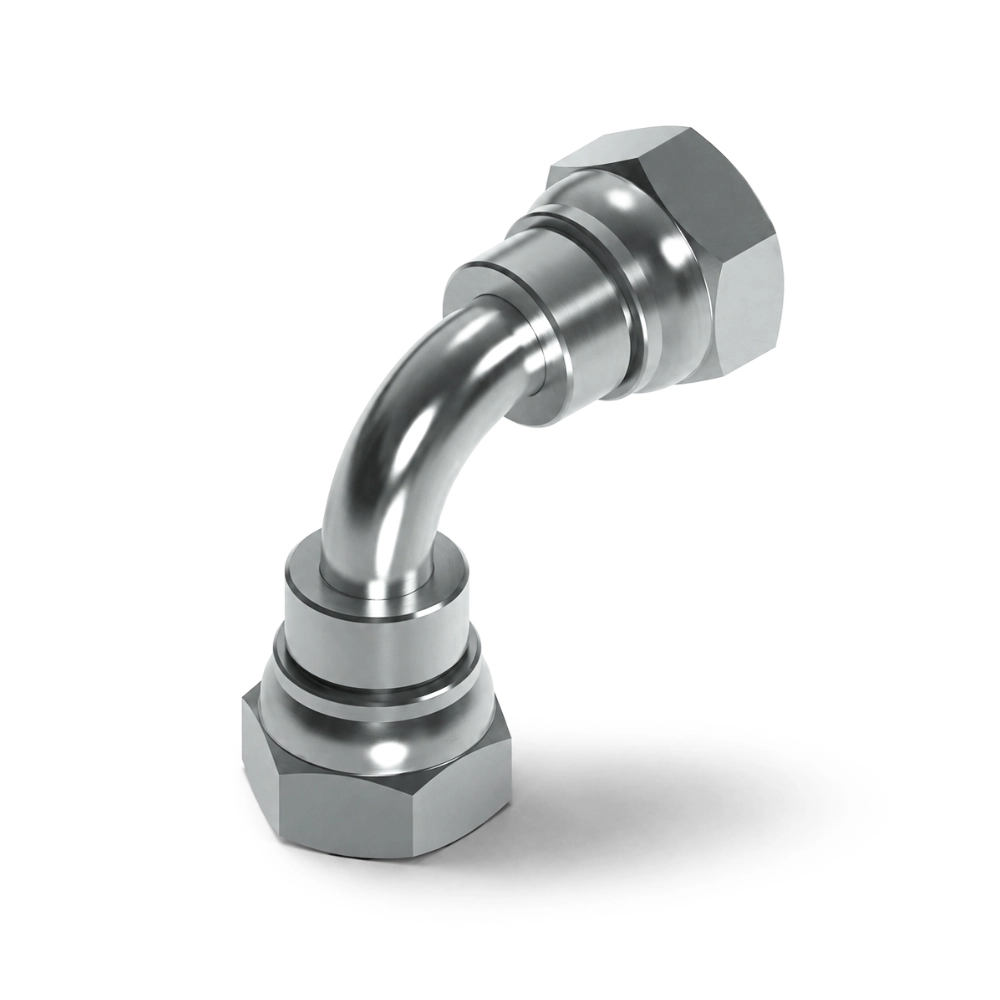

• Female to female swept elbows for connecting compatible male threaded components
• Useful for compact spaces, angled connections and tidy hose routing
• Suitable for repairs, maintenance and new hydraulic installations

Common Applications

Swept elbow hydraulic adaptors are used across many hydraulic systems where a change in connection direction or improved hose routing is required.

• Agricultural machinery: tractors, loaders, trailers, attachments and farm equipment.
• Construction and plant equipment: excavators, dumpers, loaders and lifting equipment.
• Industrial hydraulics: power packs, presses, production machinery and test rigs.
• Mobile hydraulic systems: vehicle-mounted equipment, trailers and recovery vehicles.
• Hydraulic hose routing: directing hoses and pipework through tight or awkward spaces.

Built for Reliable Hydraulic Performance

Flowfit swept elbow hydraulic fittings are selected for strength, durability and dependable performance in demanding working environments. When correctly selected and installed, they help support reliable oil flow, consistent hydraulic pressure and secure hydraulic connections.

Using the correct swept elbow hydraulic adaptor can help reduce hose strain, improve system layout and minimise the risk of leaks, pressure loss and unnecessary downtime.

Choosing the Right Swept Elbow Hydraulic Adaptor

When selecting a swept elbow hydraulic adaptor, it is important to check the connection type, thread size, thread form, sealing method, pressure rating, material and compatibility with your hydraulic system.

If you are replacing an existing fitting, checking the current adaptor’s thread measurements, angle, connection type and overall dimensions is a good starting point. If you are unsure, our team can help you identify the correct hydraulic adaptor for your application.

Order Swept Elbow Hydraulic Adaptors with Confidence

With a wide choice of hydraulic adaptor fittings available, Flowfit makes it easier to find the right connection for your system. Our swept elbow hydraulic adaptors are carefully selected to offer secure installation, dependable performance and excellent value for money.

For technical support or product advice, contact Flowfit on 01584 876 033 or email sales@flowfitonline.com.
