Splined Couplings & Components
14 Tooth 1:8 Taper Group 1 Hydraulic Pump Spline Coupling, DIN 5482, 25 x 22, 2.4mm Keyway
14 Tooth 1:8 Taper Group 2 Hydraulic Pump Spline Coupling, DIN 5482, 25 x 22, 3.17mm Keyway
18 Tooth 1:8 Taper Group 3 Hydraulic Pump Spline Coupling, DIN 5482, 35 x 31, 4mm Keyway
Borelli 12 Tooth 1:8 Taper Group 1 Hydraulic Pump Spline Coupling, DIN 5482, 20 x 17, 2.4mm Keyway
Borelli 18 Tooth 1:8 Taper Group 2 Hydraulic Pump Spline Coupling, DIN 5482, 35 x 31, 3.17mm Keyway
Borelli 18 Tooth 1:8 Taper Group 3 Hydraulic Pump Spline Coupling, DIN 5482, 35 x 31, 4mm Keyway

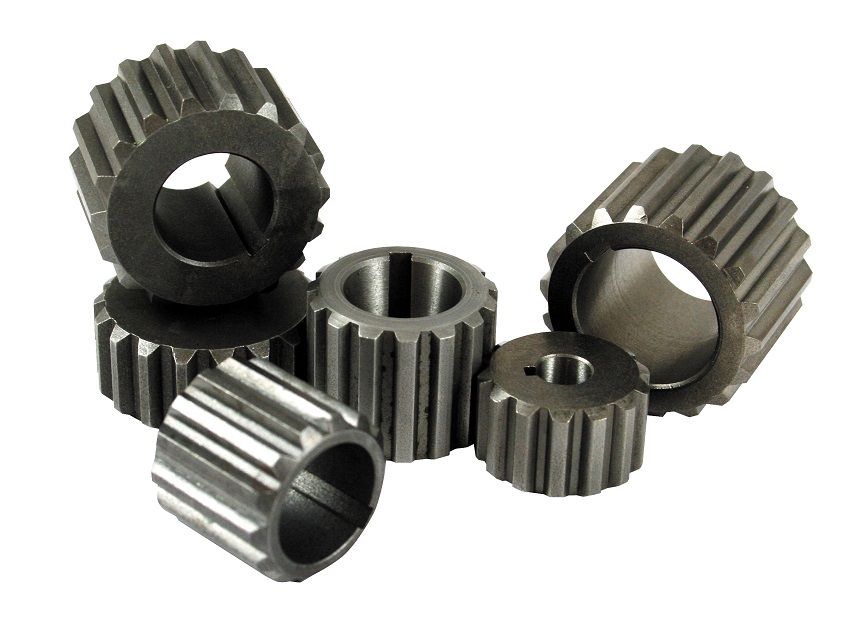

Borelli 20 Tooth 1:8 Taper Group 3.5 Hydraulic Pump Spline Coupling, DIN 5482, 40 x 36, 4.76mm Keyway
Borelli 23 Tooth 1:8 Taper Group 4 Hydraulic Pump Spline Coupling, DIN 5482, 48 x 44, 6.35mm Keyway
Borelli 14 Tooth 1:8 Taper Marzocchi Group 1 Hydraulic Pump Spline Coupling, DIN 5482, 25 x 22, 3mm Keyway
High Torque Transmission and Load Distribution
Our Splined Couplings are engineered for strength, precision, and durability, ensuring efficient torque transfer between shafts in agricultural, industrial, and mechanical systems. Manufactured to the highest standards, our couplings provide secure, long-lasting connections for even the most demanding applications.
Types of Splined Couplings We Offer
We supply a complete range of splined connection solutions, including:
-
Splined Half Couplings
-
Splined Bars and Couplings
-
Chain Couplings
All our couplings are built from heat-treated steel UNI 16 CrNi4/P6, ensuring high resistance to wear, durability, and reliable power transmission.
Premium Half Couplings with Nitriding Treatment
Half couplings marked with (*) are manufactured from hardened and tempered steel UNI 38 NiCrMo4/Fb. These are subjected to a nitriding process to increase surface hardness and wear resistance, achieving a mechanical resistance rating of R = 95 to 105 Kg/mm². This ensures outstanding performance under heavy loads and extended service life.
Why Choose Our Splined Couplings?
-
High Mechanical Resistance – Built from UNI 16 CrNi4/P6 or UNI 38 NiCrMo4/Fb steels.
-
Durability – Heat-treated and nitrided for superior wear protection.
-
Precision Fit – Ensures smooth power transmission between connected shafts.
-
Versatility – Suitable for agricultural machinery, industrial systems, and power transmission equipment.
Key Features of Our Splined Couplings:
-
Manufactured in heat-treated steel UNI 16 CrNi4/P6
-
Optional hardened and tempered UNI 38 NiCrMo4/Fb steel with nitriding
-
Mechanical resistance R = 95–105 Kg/mm² for marked half couplings (*)
-
Available as half couplings, splined bars, and chain couplings
-
Designed for high-torque agricultural and industrial applications
Technical Specifications & Downloads
Each product page includes downloadable technical specifications in PDF format for easy reference. Click on the product of your choice and navigate to the download tab.
Order Your Splined Couplings Today!
With over 9,000 satisfied global customers, Flowfit has built a reputation for quality and reliability. We offer UK & Worldwide delivery, ensuring you receive the hydraulic products you need.
For more information, call 01584 876 033 or email sales@flowfitonline.com to speak with our expert team.
