Double Rod Tracker Cylinder

Double Rod Tracker Hydraulic Cylinders

Flowfit supplies high-quality double rod tracker cylinders for industrial, agricultural, mobile and heavy-duty hydraulic applications. These hydraulic cylinders feature a piston rod on both sides of the piston, helping provide balanced movement, improved stability and consistent hydraulic force in both directions.

Also known as double rod hydraulic cylinders, dual rod cylinders, double ended hydraulic cylinders or tracker hydraulic rams, these cylinders are ideal for applications where equal force, smooth travel and reliable alignment are important. Their balanced design makes them suitable for systems that need controlled movement without the uneven force characteristics often found in standard single rod cylinders.

Designed for Balanced Hydraulic Movement

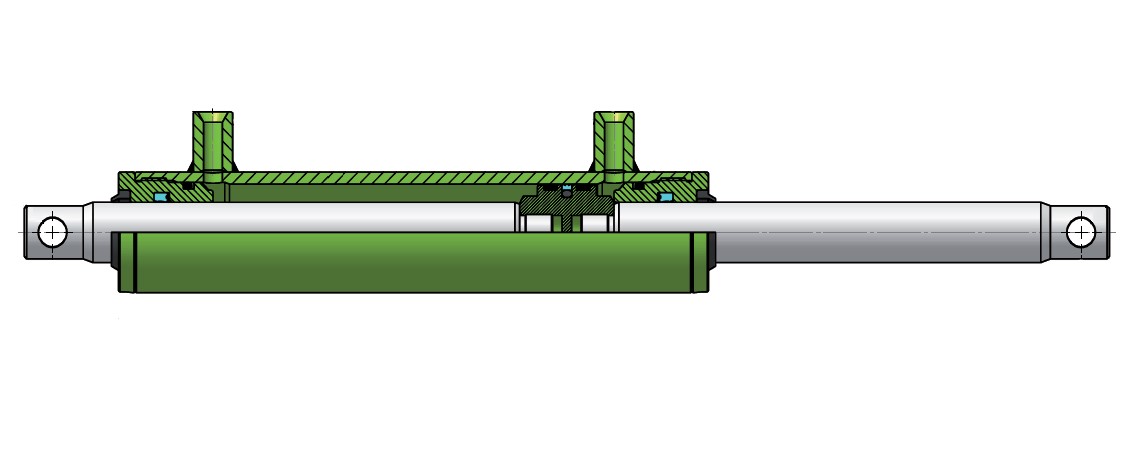

A double rod tracker cylinder uses a rod on both sides of the piston, allowing the cylinder to deliver more consistent movement during both extension and retraction. This design helps maintain stability across the stroke and can improve control in applications where the load needs to move evenly in both directions.

Because the rod area is more balanced on each side of the piston, these cylinders are often preferred for systems where predictable movement, repeatable positioning and efficient two-way operation are required.

Key Features

• Double rod configuration: Features a piston rod on both sides of the piston, helping provide balanced extension and retraction.
• Consistent force in both directions: The dual rod design supports more equal hydraulic performance compared with many standard single rod cylinders.
• Improved stability: Helps maintain alignment and controlled movement during operation.
• Increased load handling: Suitable for demanding applications where strength, support and reliable movement are required.
• Compact performance: Designed to provide strong hydraulic output while remaining suitable for applications where space may be limited.
• Long service life: Balanced load distribution can help reduce uneven wear and support reliable long-term operation.

Common Applications

Flowfit double rod tracker hydraulic cylinders are suitable for applications where balanced movement, controlled force and reliable operation are required in both directions.

• Industrial machinery: Used on equipment requiring controlled, repeatable movement and stable hydraulic force.
• Material handling systems: Suitable for pushing, pulling, positioning and transferring loads with consistent movement.
• Agricultural equipment: Used on machinery where strength, stability and dependable hydraulic operation are important.
• Mobile hydraulic systems: Suitable for vehicle-mounted equipment and machinery requiring balanced two-way movement.
• Tracking and alignment applications: Ideal where the cylinder needs to maintain controlled positioning or follow a guided movement path.
• Heavy-duty equipment: Suitable for applications exposed to higher loads, repeated operation and demanding working conditions.

Choosing the Right Double Rod Tracker Cylinder

When selecting a double rod hydraulic cylinder, it is important to consider the bore size, stroke length, rod diameter, closed length, mounting style, working pressure, port size and available installation space. Choosing the correct specification helps ensure the cylinder can deliver the required force, stability and movement for your equipment.

If you are replacing an existing tracker cylinder, checking the current cylinder’s dimensions, mounting points, rod sizes and hydraulic connections is a good starting point. If you are specifying a cylinder for a new system, Flowfit can help you identify the most suitable option based on your application and performance requirements.

Technical Specifications & Downloads

Each product page includes downloadable PDF technical specifications for easy reference. Simply select the double rod tracker cylinder you require and visit the download tab to view detailed product information, dimensions and technical data.

These downloads are useful when checking compatibility, confirming mounting measurements or comparing different double rod hydraulic cylinder options before placing your order.

Flowfit Double Rod Tracker Cylinders

Flowfit’s range of double rod tracker hydraulic cylinders is carefully selected to offer balanced movement, dependable force and excellent value for money. Whether you refer to them as double rod cylinders, dual rod hydraulic cylinders, double ended cylinders or tracker hydraulic rams, Flowfit can help you find the right product for your system.

If you are unsure which hydraulic cylinder is suitable for your application, our experienced team can help. Contact Flowfit on 01584 876 033 or email sales@flowfitonline.com for technical support and product advice.
