Example: Tipping Truck Application

Scenario:
You operate a fleet of small delivery trucks that occasionally need to dump loose materials — gravel, soil, sand — at customer sites. You want a hydraulic system that’s compact, easy to maintain, and cost-effective, without over-engineering for heavy mining or large-scale construction loads.

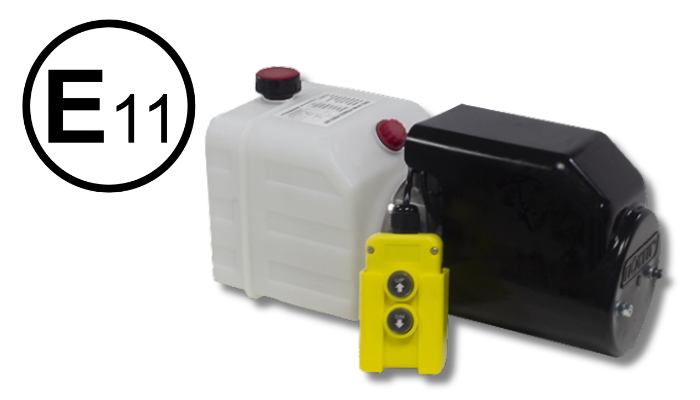

Why choose an E11 hydraulic power unit here?

1. Compact & Lightweight

• The E11’s small size means it fits neatly under the truck bed or inside a side-mounted equipment box without adding excessive weight.

2. Adequate Hydraulic Output

• It can power a single-acting or double-acting hydraulic cylinder to lift the truck bed for dumping.
• Flow and pressure ratings are suitable for medium-duty tipping without needing a larger, high-flow industrial pump.

3. Self-Contained Design

• Includes motor, pump, reservoir, and control valve in one unit — fewer installation points and quicker setup.

4. 12V or 24V DC Compatibility

• Can be powered directly from the truck’s battery, which is ideal for mobile hydraulic applications like tippers.

5. Ease of Operation

• Can integrate with a simple up/down control in the cab, so the driver can tip loads without leaving the truck.

Example Load Cycle:

• Press “UP” in the cab → E11 unit runs, hydraulic fluid is pumped to the lift cylinder, tipping the bed.
• Release or press “DOWN” → Unit allows fluid return, bed lowers by gravity or powered retraction depending on cylinder type.
