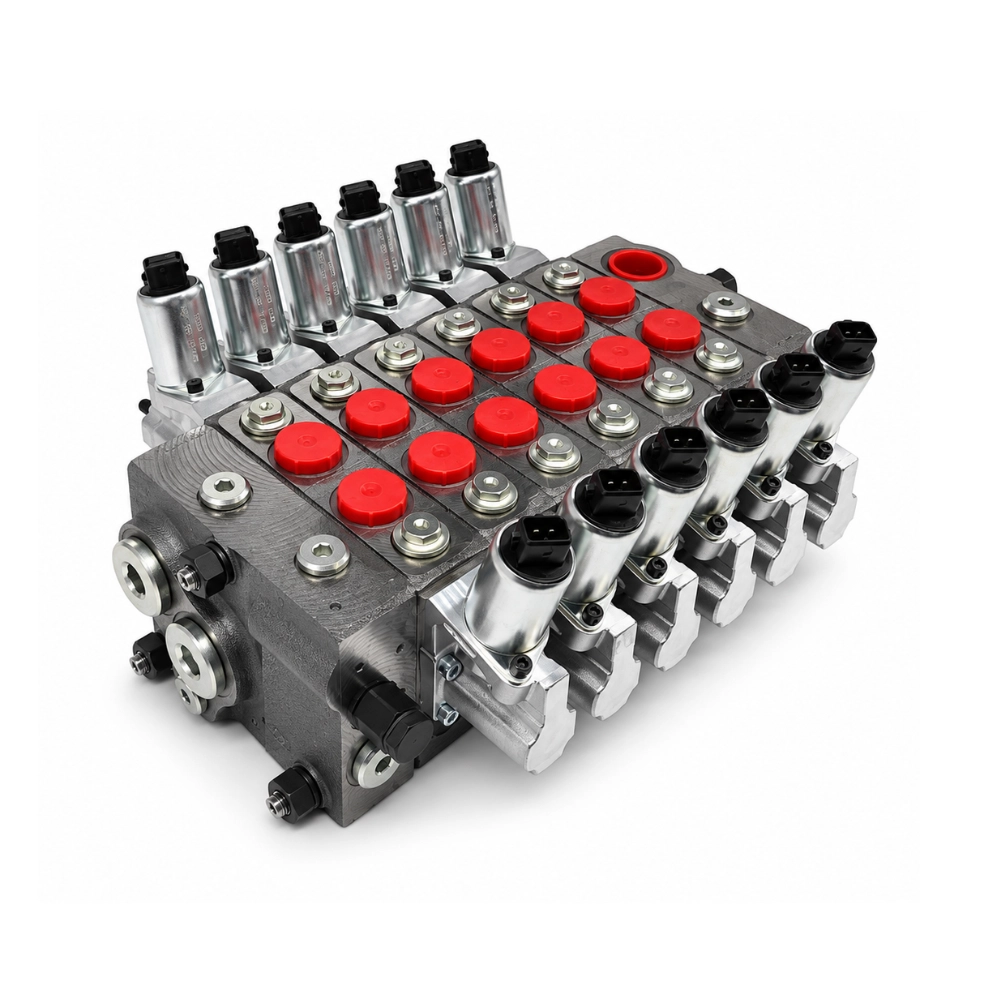

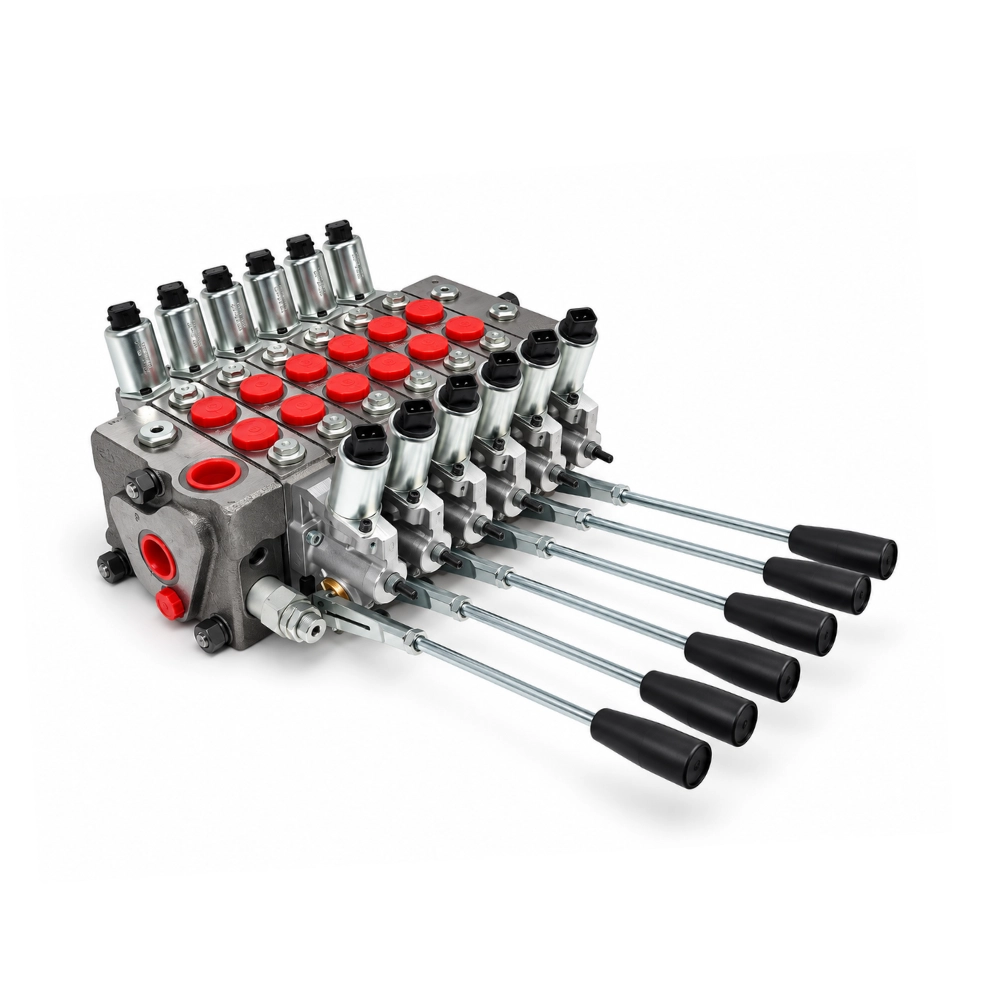

Walvoil DPX100 Full Flow Sharing Valves

The Walvoil DPX100 Full Flow Sharing Valve is designed for a wide range of mobile hydraulic applications where multiple functions must operate smoothly and simultaneously. Typical uses include construction equipment, lifting machinery, agricultural vehicles, and forestry machines that require reliable, proportional control under varying load conditions.

By using full flow sharing technology, the DPX100 maintains consistent and predictable actuator movement even when several hydraulic functions are activated at the same time. This improves machine efficiency, reduces operator fatigue, and enhances overall control precision.

Key Features

Medium‑range full flow sharing directional control valve for mobile hydraulic applications
High‑pressure (HP) version manufactured from spheroidal graphite cast iron
Available configurations with high‑flow (HF) sections
Special inlet sections designed for steering applications
Inlet sections available with or without by‑pass valve
Supports manual, hydraulic, and proportional electro‑hydraulic controls
Optional spool position sensors for advanced control and monitoring
Seamless integration with Walvoil electronic systems
Modular design supporting up to 12 sections
Compact 36 mm pitch for space‑efficient installations

Common Applications

Mini excavators and compact construction machinery
Aerial work platforms and access equipment
Truck‑mounted cranes and lifting systems
Telehandlers and material handling machines
Agricultural machinery and implements
Forestry and timber handling equipment
Mobile hydraulic systems requiring simultaneous multi‑function control
High‑pressure applications with proportional or electro‑hydraulic control

Your Walvoil DPX100 Valve Specialist – Flowfit

At Flowfit, we supply the Walvoil DPX100 Full Flow Sharing Valve range with the technical knowledge and support to help you specify the right solution for your application. Whether you’re building new machinery or upgrading an existing hydraulic system, our team can assist with valve configuration, control options, and system integration.

Contact Flowfit today for expert advice, competitive pricing, and dependable supply from a trusted hydraulic specialist.
