Walvoil 1/4" BSP SDM080 Monoblocks 25L

Walvoil 1/4" BSP SDM080 Monoblock Valves – 25 l/min

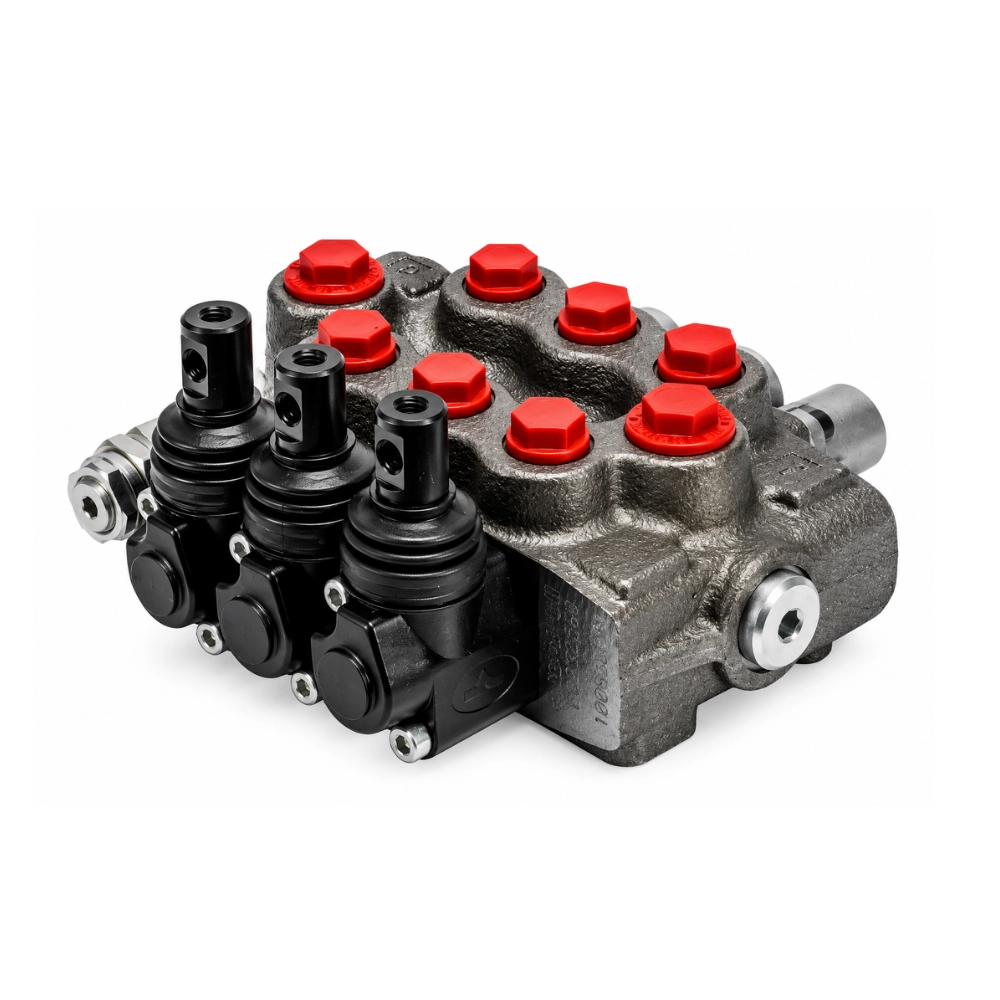

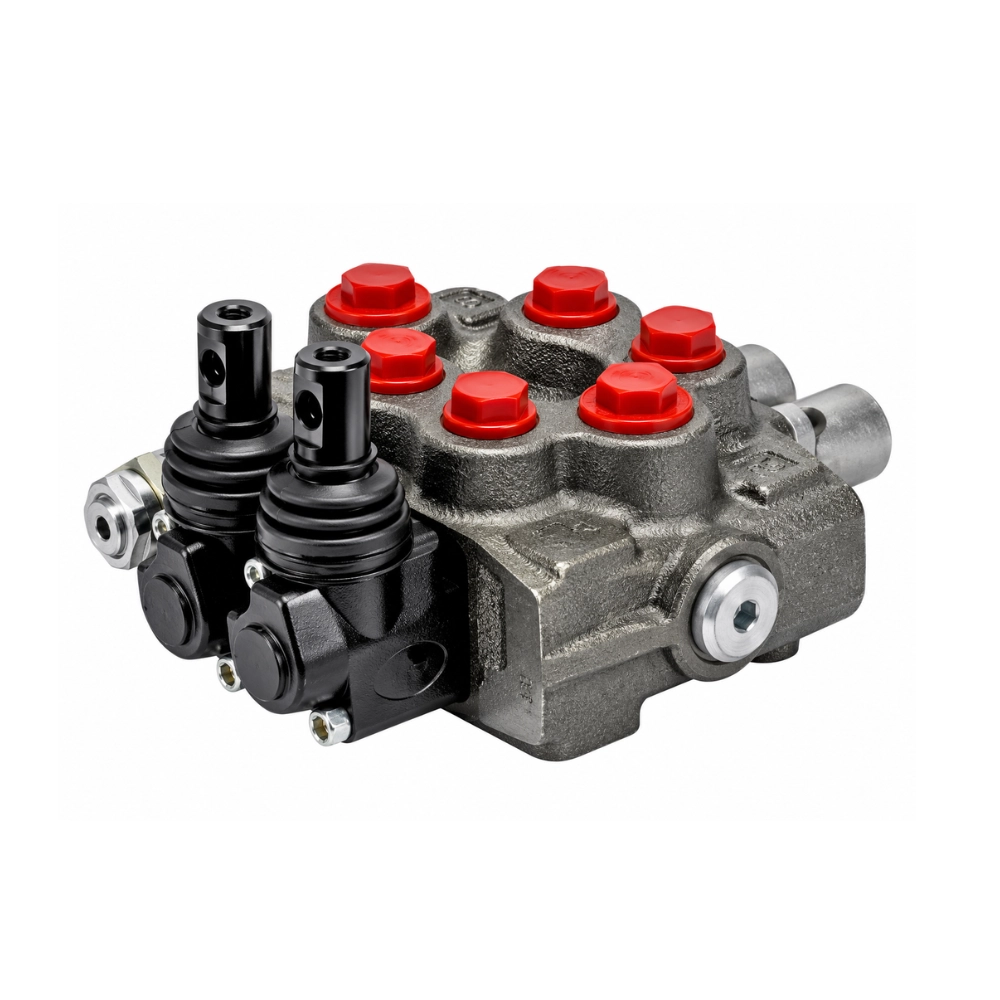

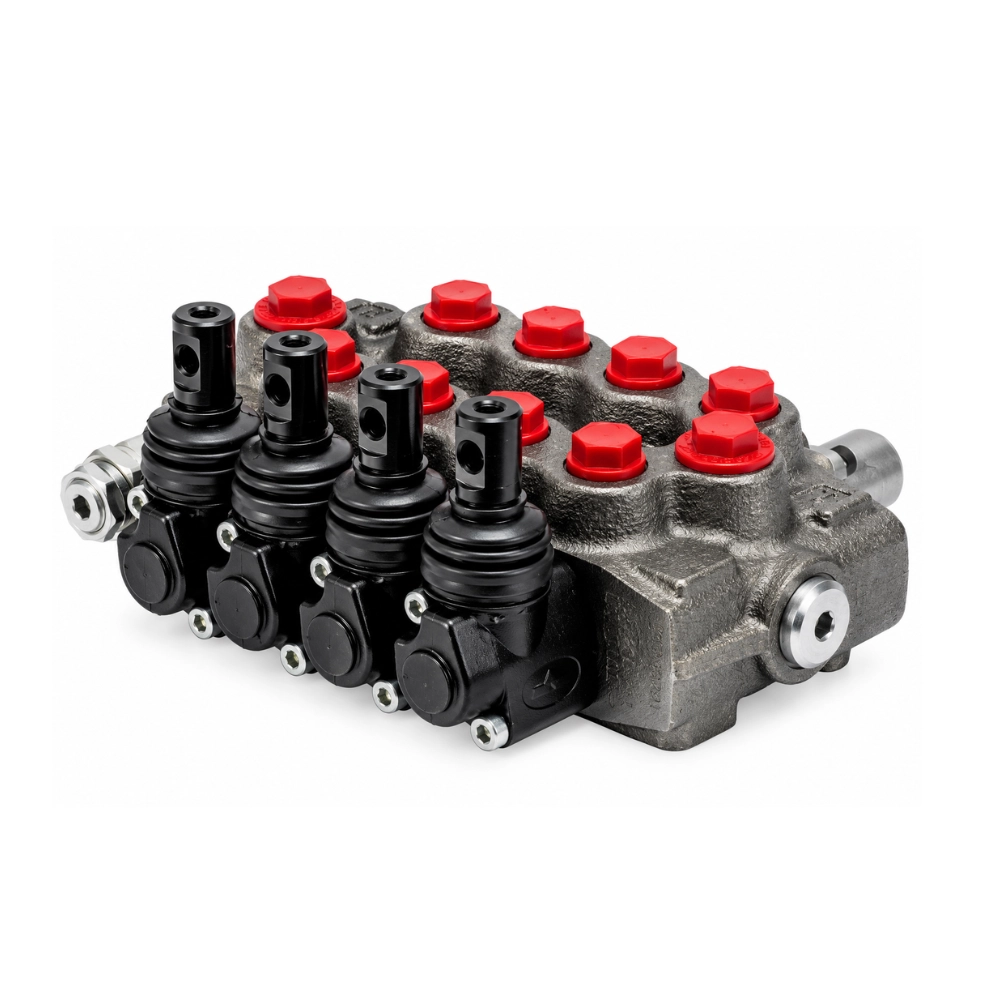

The Walvoil SDM080 monoblock directional control valve range is designed for low flow hydraulic applications, offering a compact and reliable solution where space is limited. As the smallest valve in the Walvoil product range, the SDM080 is ideal for mobile machinery requiring dependable manual hydraulic control in a lightweight, space-saving format.

These valves are built for durability and performance, supporting up to 6 sections with a nominal flow rate of 25 l/min (6.6 gpm) and a maximum operating pressure of 315 bar (4600 psi). Designed for both open and closed centre systems, the SDM080 range provides flexibility across a wide variety of hydraulic circuits.

Key Features

• Compact monoblock design – ideal for space-restricted installations
• 1 to 6 section configurations available
• 25 l/min nominal flow capacity
• Maximum pressure up to 315 bar (4600 psi)
• Type “S” free flow gallery for efficient oil flow
• Integrated main pressure relief valve and load check valve
• Single check valve design
• Available with parallel or tandem circuit options
• Optional carry-over port for system expansion
• Interchangeable 14 mm (0.55") spool options
• Manual control as standard, with optional microswitch or cable control kits
• 1/4" BSP ports for easy installation

Common Applications

The Walvoil SDM080 range is widely used in compact and mobile hydraulic systems, including:

• Agricultural machinery and attachments
• Truck-mounted cranes and stabiliser controls
• Small aerial platforms and access equipment
• Compact construction and utility equipment
• General mobile hydraulic systems requiring low flow control

Shop Hydraulic SDM080 Monoblock Valves at Flowfit

At Flowfit, we combine trusted Walvoil quality with expert support and fast availability. Whether you need a single 1 bank valve or a multi-section configuration, our team can help you select the right setup for your application. With competitive pricing, technical expertise, and reliable UK supply, Flowfit is your go-to source for hydraulic control valves.

For more information, call 01584 876 033 or email sales@flowfitonline.com to speak with our expert team.
