Agricultural PTO Pump Assemblies

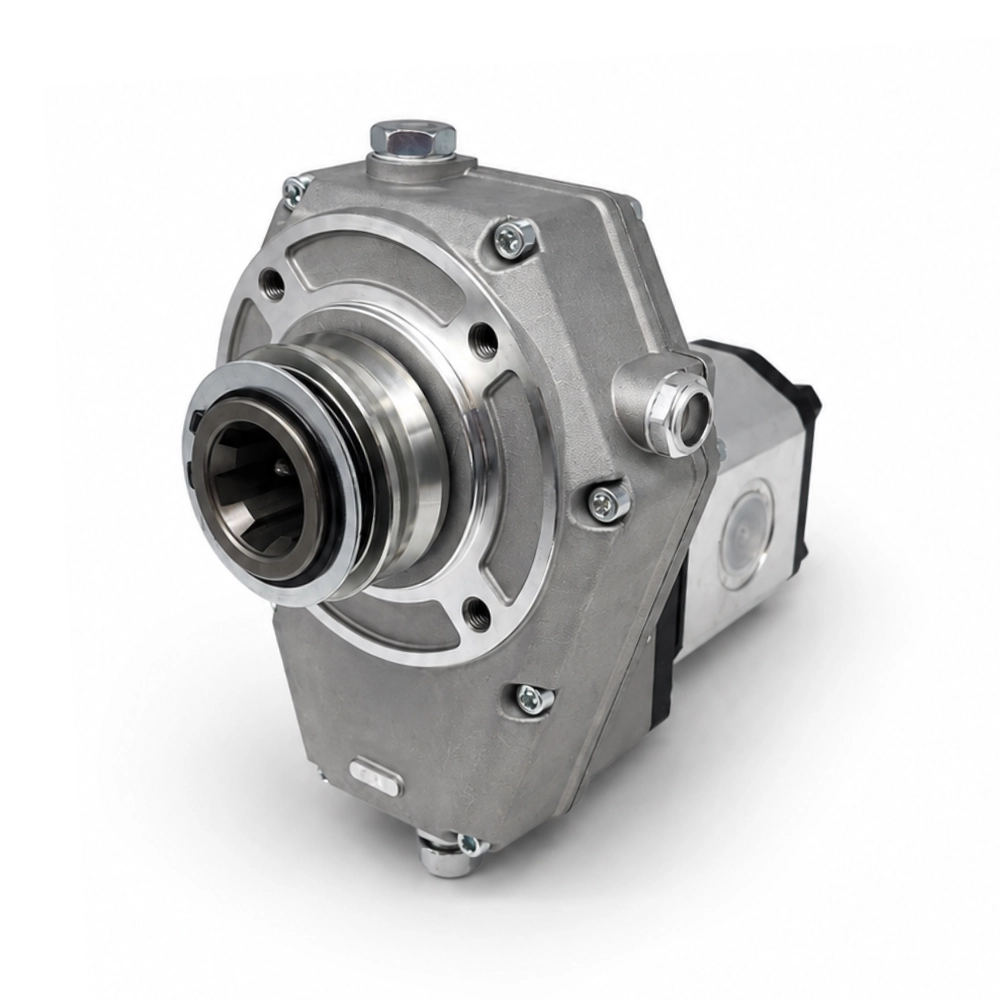

Hydraulic PTO Gearbox Aluminium Female Shaft Ratio 1:3 Group 2 Pump Assembly, 4cc, 6.50 L/Min, 270 Bar
Hydraulic PTO Gearbox Aluminium Female Shaft Ratio 1:3 Group 2 Walvoil Gear Pump Assembly, 4cc, 6.50 L/Min, 250 Bar
Hydraulic PTO Gearbox Aluminium Female Shaft Ratio 1:3 Group 3 Pump Assembly, 25cc, 40.50 L/Min, 225 Bar
Hydraulic PTO Gearbox Aluminium Female Shaft Ratio 1:3 Group 3 Walvoil Gear Pump Assembly, 19.3cc, 31.30 L/Min, 250 Bar

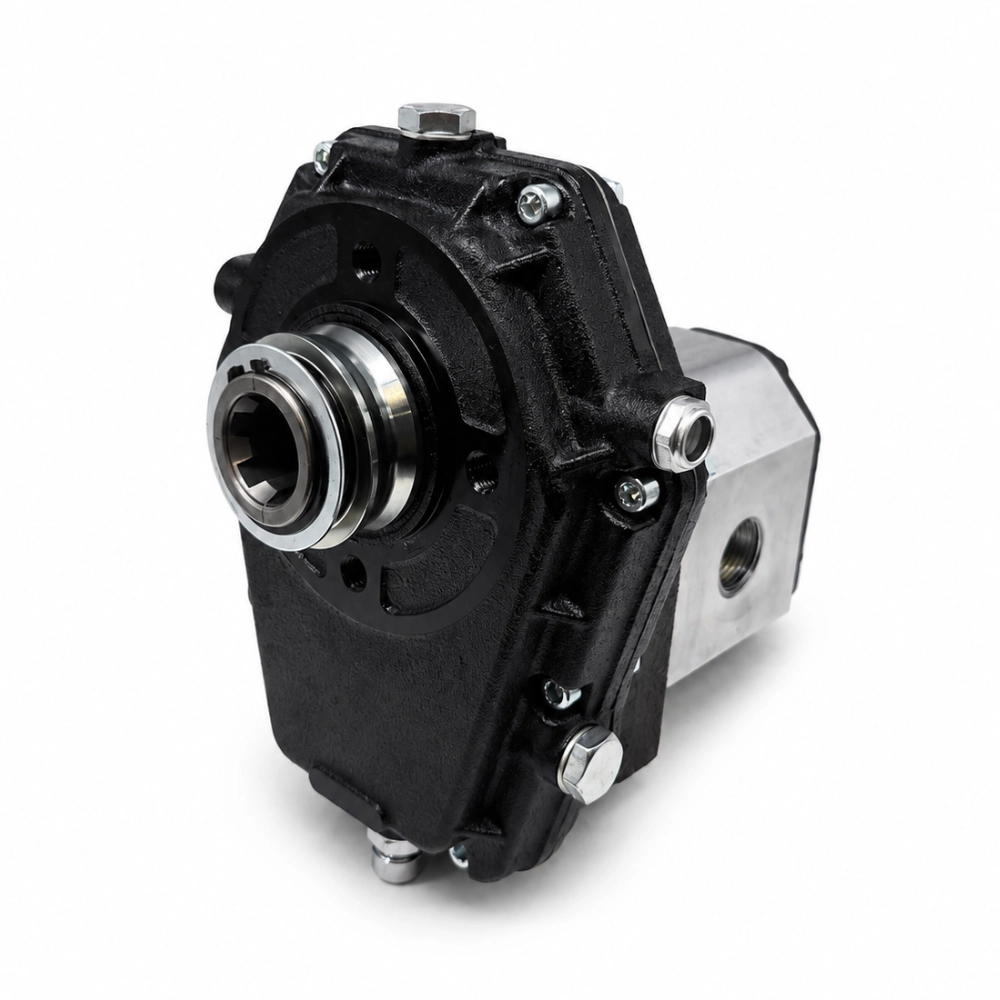

Hydraulic PTO Gearbox Cast Iron Female Shaft Ratio 1:3 Group 3 Pump Assembly, 25cc, 40.50 L/Min, 260 Bar
Hydraulic PTO Gearbox Cast Iron Female Shaft Ratio 1:3 Group 3 Walvoil Gear Pump Assembly, 23cc, 37.30 L/Min, 250 Bar
Fixing plate/welding plate for P.T.O. Shaft Gear Box Group 2 and Group 3
Agricultural PTO Pump Assemblies
Flowfit agricultural PTO pump assemblies provide a practical way to generate hydraulic flow directly from a tractor or machinery power take-off system.
Each assembly combines a hydraulic PTO gearbox with a matched gear pump, helping provide dependable hydraulic power for agricultural machinery, trailers, tankers, irrigation equipment and other mobile applications.
Complete PTO Gearbox and Pump Assemblies
Our range includes complete assemblies with different gearbox ratios, pump displacements, flow rates and maximum working pressures. This allows you to select an assembly that suits the hydraulic output and operating requirements of your equipment.
Options are available with aluminium or cast iron gearboxes, Group 2 or Group 3 gear pumps, male or female QRC shafts and selected models supplied with a fixing plate and retaining chain.
Common Applications
- Agricultural trailers and tipping equipment
- Hydraulic tankers and slurry equipment
- Crop sprayers and fertiliser spreaders
- Irrigation and water-transfer systems
- Log splitters and forestry equipment
- Hydraulic motors, cylinders and auxiliary circuits
- Mobile plant and farm machinery
- Replacement or upgrade of existing PTO-driven hydraulic systems
Key Product Options
- Aluminium gearboxes for a lightweight and compact assembly
- Cast iron gearboxes for demanding operating environments
- Group 2 and Group 3 gear pump configurations
- Multiple pump displacements and hydraulic flow rates
- A choice of gearbox ratios to suit different pump-speed requirements
- Female QRC shaft options (Male shaft available upon request)
- Standard assemblies or versions with a fixing plate and retaining chain
- Selected assemblies fitted with Walvoil gear pumps
Why Choose a Fixing Plate and Retaining Chain?
Models supplied with a fixing plate and retaining chain provide a more secure installation. The mounting arrangement helps reduce unwanted gearbox movement and rotation while the PTO is operating, improving stability and helping protect connected hydraulic components.
Choosing the Correct PTO Pump Assembly
The most important specifications to check are the required hydraulic flow rate and maximum working pressure. You should also confirm the gearbox ratio, pump displacement, pump group, shaft connection, maximum gearbox power and whether a fixing plate is required.
Selection note: Flow rate affects the operating speed of the hydraulic equipment, while the maximum working pressure determines the load the pump can support. Always confirm that both values are suitable for your hydraulic system.
Need Help Selecting a PTO Pump Assembly?
Selecting the correct gearbox and pump combination is important for reliable hydraulic performance. Please have your required flow rate, operating pressure, PTO arrangement and application details available when contacting our team.
Call 01584 876 033 or email sales@flowfitonline.com for product selection advice, availability and delivery information.
