Brake Cylinders

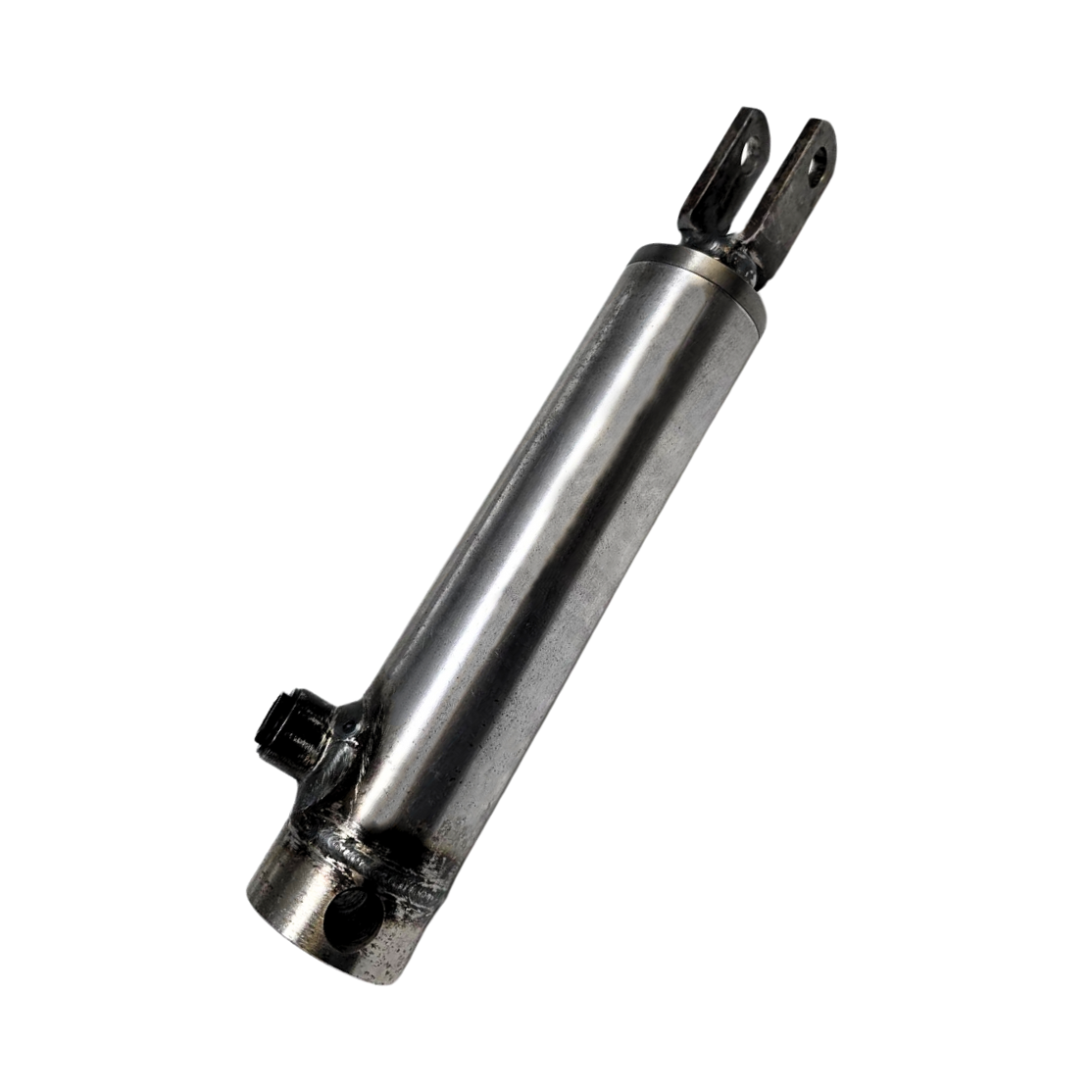

Single Acting Hydraulic Brake Cylinders

Flowfit supplies high-quality single acting hydraulic brake cylinders for hydraulic braking systems used across agricultural, mobile, industrial, commercial and plant equipment applications. These cylinders are designed to apply controlled hydraulic force in one direction, helping activate or assist braking functions so machinery, trailers and vehicles can stop, hold or slow down safely and reliably.

Also known as hydraulic brake cylinders, single acting brake cylinders, brake hydraulic rams or braking system cylinders, these components use hydraulic pressure to apply the brake. Retraction is typically handled by a spring, mechanical return or another part of the braking system once hydraulic pressure is released.

Designed for Hydraulic Braking Systems

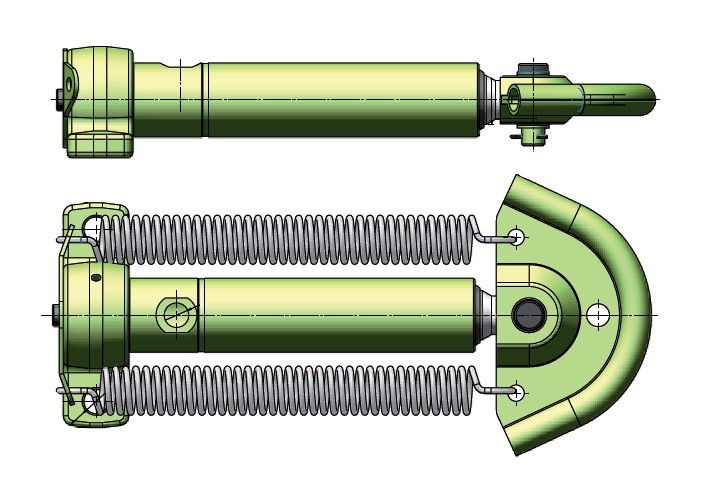

Single acting hydraulic brake cylinders are used where hydraulic pressure is required to operate a braking mechanism. When pressure is applied, the cylinder moves the piston or rod to engage the brake. When pressure is released, the braking system returns the cylinder using spring force or a mechanical return arrangement.

This simple and dependable operating principle makes single acting brake cylinders suitable for equipment where consistent brake actuation, controlled movement and reliable stopping or holding performance are essential.

Key Features

• Single acting operation: Uses hydraulic pressure to apply force in one direction, with return movement handled by a spring or mechanical return system.
• Reliable brake actuation: Designed to support controlled engagement of hydraulic braking systems.
• Compact hydraulic force: Provides dependable movement in braking applications where space may be limited.
• Durable construction: Built for regular use across vehicle, trailer, machinery and equipment applications.
• Consistent performance: Helps braking systems operate smoothly, safely and predictably.
• Versatile applications: Suitable for agricultural machinery, mobile equipment, trailers, plant equipment and industrial systems.

Common Applications

Flowfit single acting hydraulic brake cylinders are suitable for a wide range of equipment where hydraulic power is used to apply or assist braking.

• Agricultural machinery: Used on tractors, trailers and farm equipment requiring reliable hydraulic braking support.
• Trailers and mobile equipment: Suitable for braking systems on vehicle-mounted and towable equipment.
• Plant and construction machinery: Used where hydraulic braking force is required in demanding working conditions.
• Industrial machinery: Suitable for equipment requiring controlled stopping, holding or braking functions.
• Commercial vehicles: Used within hydraulic braking systems where dependable brake actuation is required.

Choosing the Right Single Acting Brake Cylinder

When selecting a single acting hydraulic brake cylinder, it is important to consider the bore size, stroke length, mounting style, port size, working pressure, return method and compatibility with your braking system. Choosing the correct specification helps ensure safe operation, reliable braking performance and correct fitment to your equipment.

If you are replacing an existing brake cylinder, checking the current cylinder’s dimensions, mounting points, port details and operating requirements is a good starting point. If you are unsure which cylinder is suitable, Flowfit can help you identify the right option for your application.

Technical Specifications & Downloads

Each product page includes downloadable PDF technical specifications for easy reference. Simply select the brake cylinder you require and visit the download tab to view detailed product information, dimensions and technical data.

These downloads are useful when checking compatibility, confirming measurements or comparing different hydraulic brake cylinder options before placing your order.

Flowfit Single Acting Hydraulic Brake Cylinders

Flowfit’s range of single acting hydraulic brake cylinders is carefully selected to offer dependable braking support, reliable hydraulic actuation and excellent value for money. Whether you refer to them as hydraulic brake cylinders, single acting brake cylinders, brake hydraulic rams or braking system cylinders, Flowfit can help you find the right product for your system.

If you are unsure which brake cylinder is suitable for your application, our experienced team can help. Contact Flowfit on 01584 876 033 or email sales@flowfitonline.com for technical support and product advice.
