6SN / 6 Wire Spiral Hose

6SN / 6 Wire Spiral Hydraulic Hose

Our 6SN / 6 Wire Spiral Hydraulic Hose is designed for extremely demanding hydraulic systems where high pressure, flexibility and durability are essential. Also referred to as 6 wire hydraulic hose, 6 wire spiral hose or extra high-pressure hydraulic hose, this heavy-duty hose is ideal for high-performance mobile and industrial hydraulic applications.

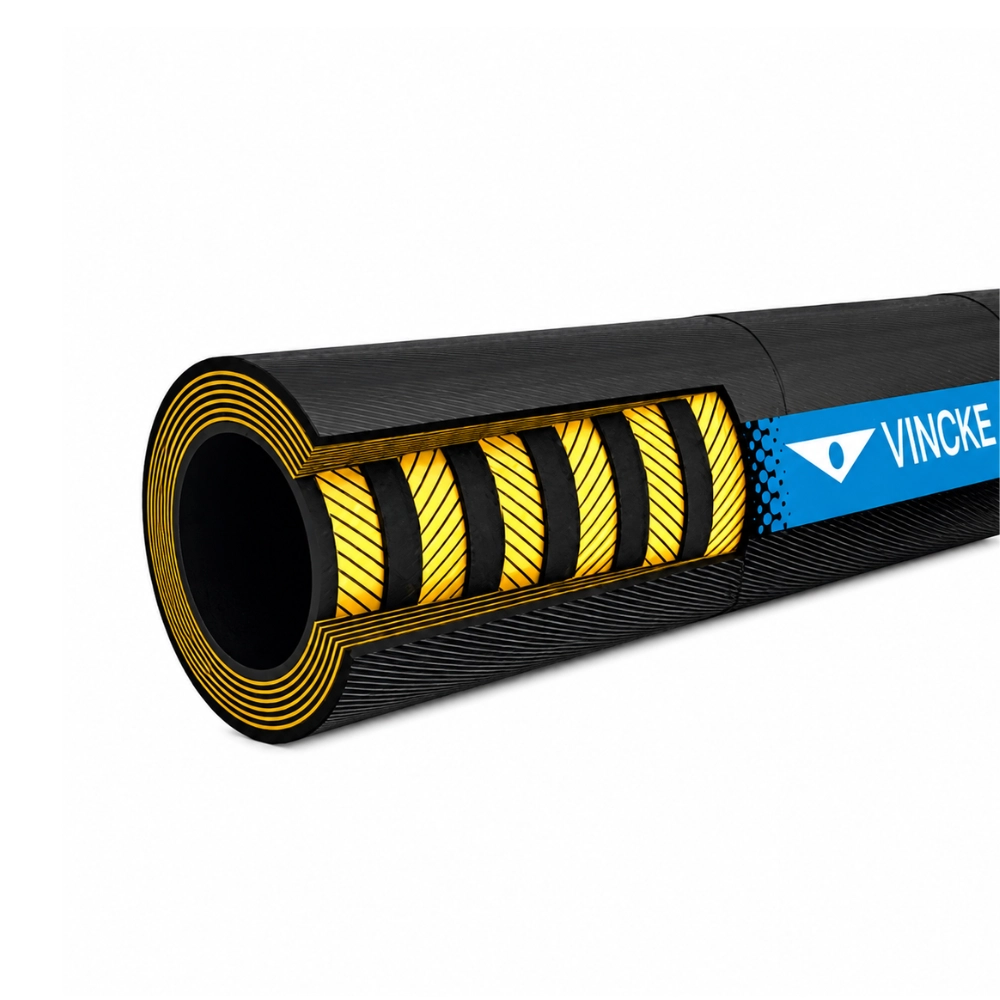

Manufactured with six spirals of high-tensile steel wire reinforcement, 6SN hydraulic hose provides exceptional strength and pressure capability for severe operating conditions. The special synthetic rubber inner tube is compatible with a wide range of hydraulic fluids, while the multi-spiral construction provides the reinforcement required for high-pressure and high-impulse hydraulic systems.

The VINCKE HH-6SN range offers a maximum working pressure of 420 bar (6,092 psi) with a burst pressure of 1,680 bar (24,368 psi). Its special neoprene outer cover provides excellent resistance to abrasion and weathering, making it suitable for demanding environments where reliability and long service life are essential.

Main Features

• 6 high-tensile steel wire spirals
• Maximum working pressure of 420 bar / 6,092 psi
• Burst pressure of 1,680 bar / 24,368 psi
• Designed for extra high-pressure hydraulic applications
• Special synthetic rubber inner tube
• Abrasion and weather-resistant neoprene outer cover
• Compatible with mineral, vegetable and synthetic hydraulic oils
• Suitable for glycol-based oils and water-based hydraulic fluids
• Operating temperature range of -40°C to +120°C
• Available in large bore sizes from 1 1/4" to 2"

Common Applications

• Construction and earthmoving machinery
• Excavators and heavy mobile equipment
• Mining and quarrying machinery
• Agricultural and forestry equipment
• Heavy-duty industrial hydraulic systems
• High-pressure hydraulic power systems
• Large plant and machinery
• Applications subject to high pressure peaks and demanding operating conditions

Order Your 6SN / 6 Wire Spiral Hydraulic Hose from Flowfit

Flowfit can supply 6SN / 6 Wire Spiral Hydraulic Hose for demanding mobile, industrial and heavy-duty hydraulic applications. Available in a range of large bore sizes, the HH-6SN range combines six-wire spiral reinforcement, high pressure capability and excellent resistance to demanding working environments.

Our team can help you select the correct hose size for your required flow rate, working pressure and hydraulic application.
