Three Phase Electric Motors
0.12kW Three Phase 400V Aluminium Electric Motor, 2 Pole, 2840 RPM, B14 Face Mount
0.12kW Three Phase 400V Aluminium Electric Motor, 4 Pole, 1395 RPM, B14 Face Mount
0.12kW Three Phase 400V Aluminium Electric Motor, 6 Pole, 850 RPM, B14 Face Mount
11.0kW Three Phase 400V Cast Iron Electric Motor, 2 Pole, 2830 RPM, B14 Face Mount
11.0kW Three Phase 400V Cast Iron Electric Motor, 4 Pole, 1450 RPM, B14 Face Mount
11.0kW Three Phase 400V Cast Iron Electric Motor, 6 Pole, 960 RPM, B14 Face Mount

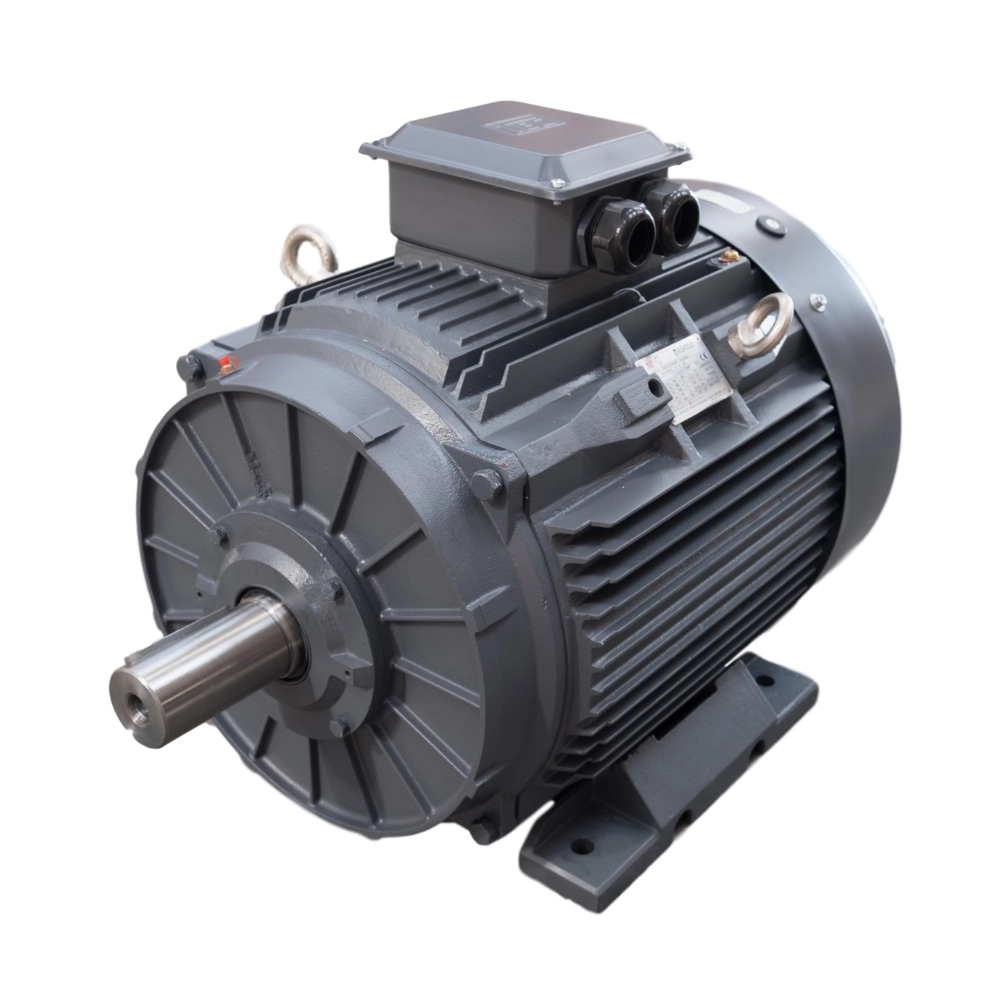

11.0kW Three Phase 400V Cast Iron Electric Motor, 8 Pole, 730 RPM, B3 Foot Mount
Three Phase Electric Motors
Our Three Phase Electric Motors are built for dependable performance in industrial and commercial environments. Designed for efficient, continuous operation, these motors run on a standard 400V three phase supply and are ideal for applications requiring higher power, smoother running, and improved efficiency compared to single phase options.
Available Specifications
- Voltage: 400V (Three Phase)
- Power Range: 0.12kW to 315kW
- Speed Options: 2 Pole (approx. 3000rpm), 4 Pole (approx. 1500rpm), 6 Pole (approx. 1000rpm) & 8 Pole (approx. 750rpm
Mounting Types
Choose from common electric motor mounting configurations to suit your installation:
- B3 – Foot mounted
- B5 – Large flange mounted (no feet)
- B35 – Foot + large flange mounted
- B14 – Small flange mounted
- B34 – Foot + small flange mounted
IP Rating Explained (IP55 Standard – Higher Ratings Available)
Our motors are supplied with a standard IP55 rating, with higher protection options such as IP56, IP65, and IP66 available upon request. IP ratings define the level of protection against dust and water ingress.
| IP Rating | Dust Protection | Water Protection | Typical Use |
|---|---|---|---|
| IP55 | Dust protected (limited ingress) | Low-pressure water jets | General industrial and indoor environments |
| IP56 | Dust protected | Powerful water jets | Outdoor use and heavier washdown areas |
| IP65 | Dust tight (fully sealed) | Water jets | Dusty environments such as mills or workshops |
| IP66 | Dust tight (fully sealed) | High-pressure water jets | Harsh environments, heavy washdowns, outdoor use |
Need more detail? Read our full guide to choosing the right IP rating for your electric motor .
Why Choose a Three Phase Motor?
- Ideal for industrial machinery and higher power requirements
- Smoother operation and more consistent torque than single phase motors
- Better efficiency for continuous duty applications
- Compatible with VFDs (inverters) for speed control (when specified as inverter duty)
- Wide power range for everything from small equipment to heavy industrial loads
Common Applications
- Pumps (process, booster, circulation, irrigation)
- Fans and blowers
- Compressors
- Conveyors and material handling
- Gearboxes and geared systems
- Machine tools and production equipment
- Mixers, agitators and crushers
- HVAC and building services
Need Help Choosing?
When selecting a motor, confirm your kW rating, required speed (2 or 4, 6 or 8 pole), frame size, shaft size, and mounting type. If you plan to run via an inverter, choose an inverter duty specification where appropriate.
Contact us for help matching the right motor to your application.
