Diverter/Ball Valves

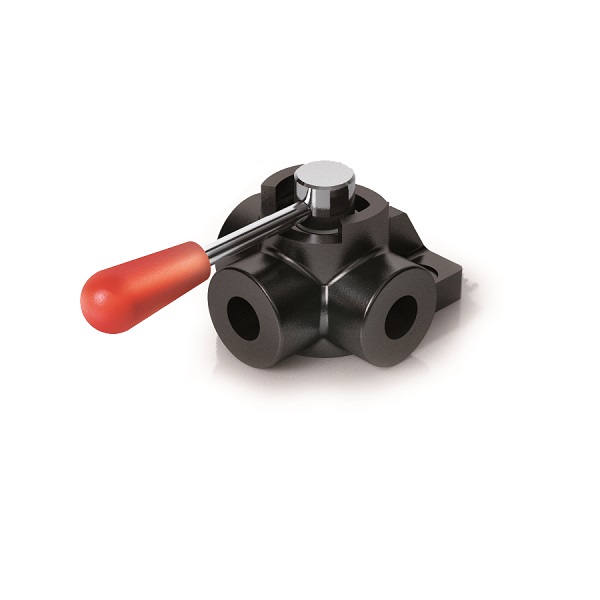

Hydraulic 3 Way Diverter Valve, Open Centre, BSP Ports, DF 3 VIE, 3/8"

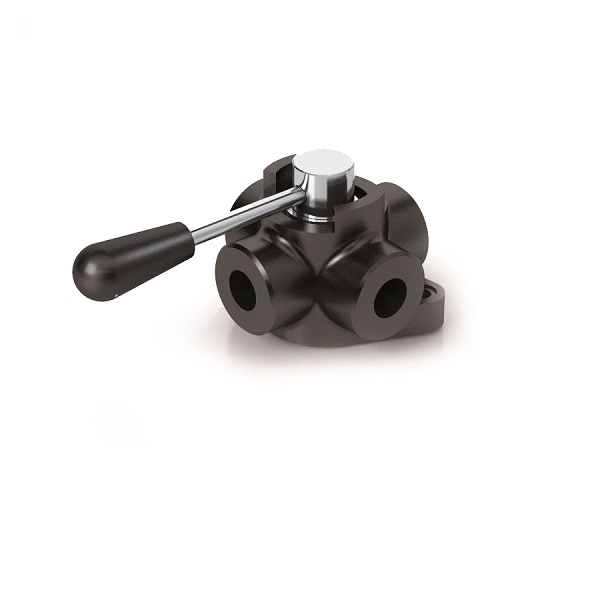

Hydraulic 4 Way Diverter Valve, Open Centre, BSP Ports, IF 4 VIE, 3/8"
Hydraulic 3 Way Diverter Valve, Closed Centre, BSP Ports, DF 3 VIE, 3/8"
Hydraulic 4 Way Diverter Valve, Closed Centre, BSP Ports, IF 4 VIE, 3/8"

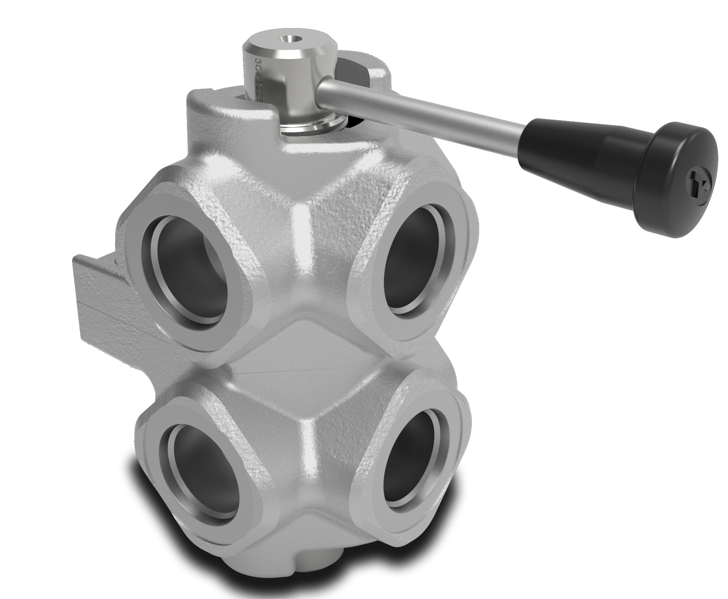

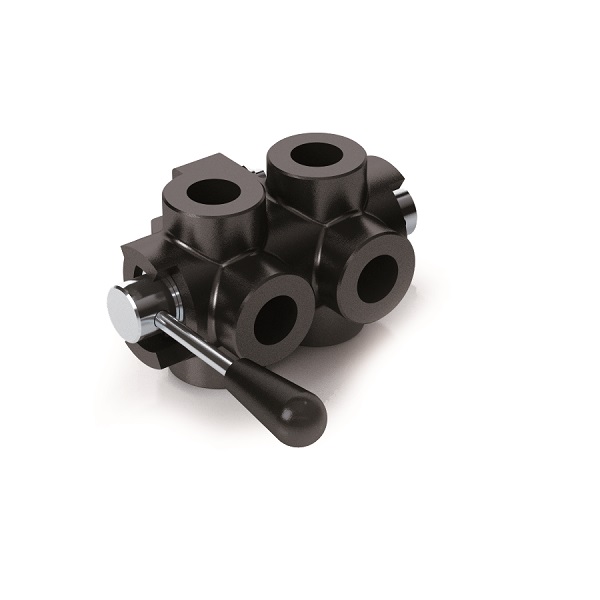

Hydraulic 6 Way Diverter Valve Open Centre, BSP Ports, DF 6 VIE, 3/8"
Hydraulic 6 Way Diverter Valve Closed Centre, BSP Ports, DF 6 VIE, 3/8"
Hydraulic 2 Way Ball Valve with fixing holes, BSP Ports, RS 2 VIE, 3/8"

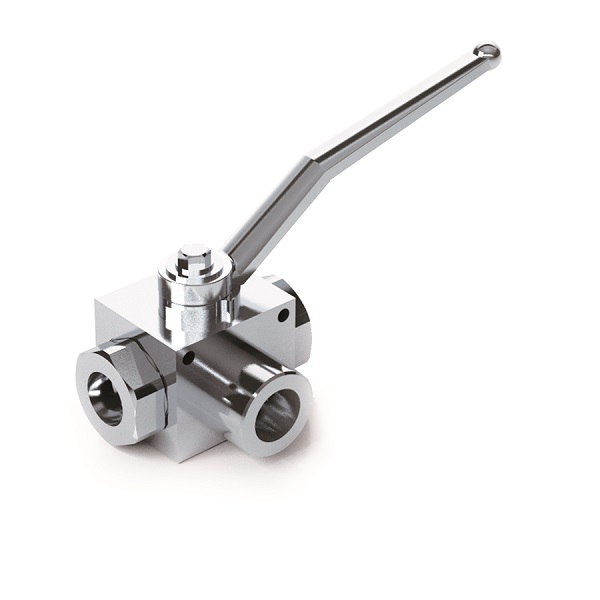

Hydraulic 3 Way Ball Valve with fixing holes, BSP Ports, RS 3 VIE, 1/4"
Hydraulic 3 Way Ball Valve with fixing holes, Metric Ports, RS 3 VIE, M12X1.5
Hydraulic diverter and ball valve are designed to accept hydraulic fluid through one part and direct it through any one of multiple outlet ports. Traditionally, these designs feature three way designs, but as hydraulic systems have become more complex, models have been created which offer multiple exit portals.
Hydraulic Diverter And Ball Valves
These models are commonly used for alternatively diverting flow from a single source to multiple lines. This is particularly useful in dumping operations, in which one outlet permits the fluid to flow from a common source to the essential hydraulic component, whilst the other outlet alternately dumps or recycles excess fluid. Often, the second outlet will lead back into the system itself, to conserve hydraulic fluid and reduce waste.
Hydraulic diverter and ball valves are available in a wide range of designs, from simple two-way ball valves to 6-way solenoid diverters. They are all suitable for different specifications and to meet the requirements of specific systems.
Typically, these models come with an easily accessible manual operating system, but can also be integrated to offer pneumatic or electric actuation. It is important to note that the inlet port can rarely be shut off, only diverted to one of the multiple outlet ports.
Flowfits Extensive Range Of Hydraulic Diverter And Ball Valves
If youre looking for an unbeatable range of hydraulic diverter and ball valves, including reliable, multi-port alternatives to the traditional two-outlet design, then you need to look no further than Flowfit. We are the UKs leading supplier of reliable and hard-wearing hydraulic components to ensure that you system operates at its peak efficiency.
For more information on any one of our wide range of products, get in touch with our experienced team of hydraulic experts today!
