S/Acting Displacement Cylinders
Filter
TECHNICAL
DETAILS
S/Acting Displacement Cylinders
Hydraulic S/Acting Cylinder/Ram 25Rod 100Stroke 190Closed Displacement 625/10
Hydraulic S/Acting Cylinder/Ram 30Rod 200Stroke 300Closed Displacement 630/2
Hydraulic S/Acting Cylinder/Ram 35Rod 200Stroke 330Closed Displacement 635/2
Hydraulic S/Acting Cylinder/Ram 40Rod 200Stroke 330Closed Displacement 640/2
Hydraulic S/Acting Cylinder/Ram 45Rod 200Stroke 330Closed Displacement 645/2
Hydraulic S/Acting Cylinder/Ram 50Rod 200Stroke 360Closed Displacement 650/2
Hydraulic S/Acting Cylinder/Ram 55Rod 300Stroke 460Closed Displacement 655/3
Hydraulic S/Acting Cylinder/Ram 60Rod 200Stroke 360Closed Displacement 660/2
Hydraulic S/Acting Cylinder/Ram 70Rod 300Stroke 495Closed Displacement 670/3
Single-acting displacement hydraulic cylinders are different from the more widely-used double-acting cylinders because the working fluid only acts on one side of the piston. A single-acting displacement cylinder relies on the load, springs, other cylinders and often the momentum of an attached load to push the piston back in the other direction.

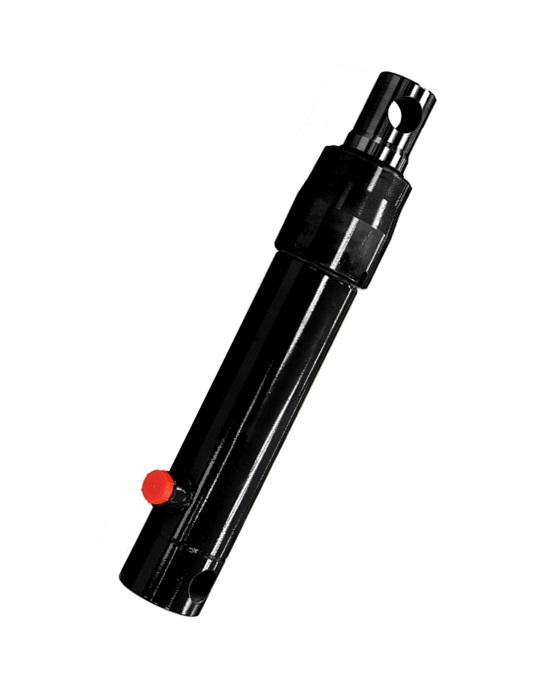

Flowfit Single-Acting Displacement Hydraulic Cylinders / Rams 600 Series
Intelligently designed to provide the very best performance, Flowfit single-acting displacement hydraulic cylinder/ram 600 series come with a rated maximum working pressure of up to 200 bar in a range of sizes. Ensuring that you choose the proper bore, rod and stroke size is essential to the running of your hydraulic system, this product comes with all specs you need. Make sure your system runs smoothly with our single-acting cylinders!
For more information on the suitability of Flowfit single-acting displacement hydraulic cylinder/ram 600 series for your system, contact our specialised team!
We offer a wide range of both single and double-acting hydraulic cylinders for your hydraulic systems; if you can’t find what you’re looking for on our site, why not get in touch today?
