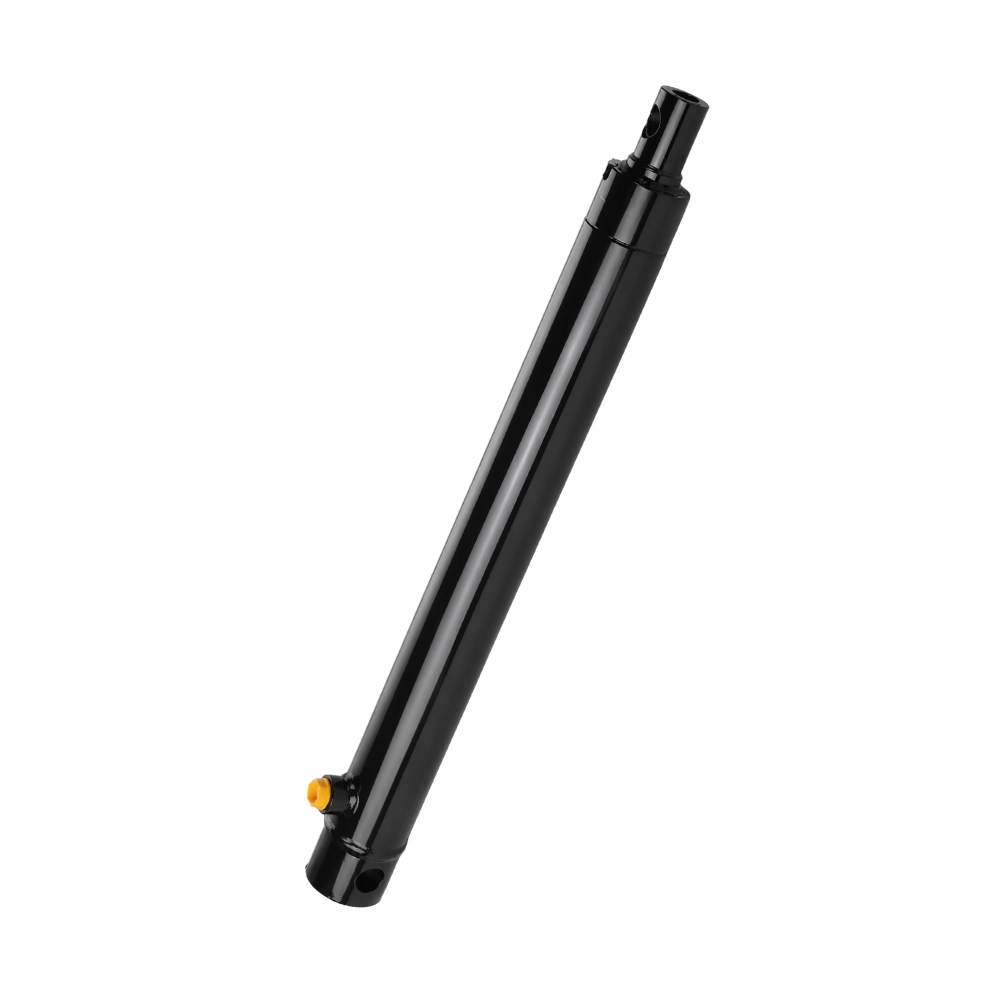

Single Acting Hydraulic Cylinder 50mm Rod x 400mm Stroke
650/4
Product Features:
Customers who bought this product also bought these
Displacement Hydraulic Ram 50mm Rod x 400mm Stroke
This Single Acting Hydraulic Cylinder 50mm Rod x 400mm Stroke is designed for reliable one-way hydraulic extension in lifting, tipping and replacement ram applications.
Also known as a displacement cylinder, single acting hydraulic ram or single acting displacement cylinder, this model has a 50mm rod, 400mm stroke, 560mm closed centre measurement and 25.25mm pin holes for fitment checking.
| Specification | Details |
|---|---|
| SKU / model code | 650/4 |
| Product type | Single acting hydraulic cylinder / displacement ram |
| Rod diameter | 50mm |
| Stroke | 400mm |
| Closed centre | 560mm |
| Pin hole diameter | 25.25mm |
| Port size | 3/8 BSP |
Common applications & operating notes
Suitable for agricultural machinery, tipping trailers, plant equipment, compact lifting mechanisms and replacement single acting ram applications.
Note: single acting displacement cylinders are powered hydraulically in one direction and returned by load, gravity or an external force. The 3/8 BSP port connection is shown in the model comparison table.
MODEL COMPARISON
| SKU | ØA | STROKE Z | E | C | D | G | H | J | O | P | L | M BSP | VOL (L) | SEALS JOINTS | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 650/2 | 50 | 200 | 360 | 25 | 25.25 | 65 | 49 | 50 | 75 | 80 | 15 | 3/8 | 0.48 | J650 | 8.9 |
| 650/3 | 50 | 300 | 460 | 25 | 25.25 | 65 | 49 | 50 | 75 | 80 | 15 | 3/8 | 0.71 | J650 | 11.2 |
| 650/4 | 50 | 400 | 560 | 25 | 25.25 | 65 | 49 | 50 | 75 | 80 | 15 | 3/8 | 0.95 | J650 | 13.5 |
| 650/5 | 50 | 550 | 710 | 25 | 25.25 | 65 | 49 | 50 | 75 | 80 | 15 | 3/8 | 1.31 | J650 | 16.8 |
| 650/7 | 50 | 700 | 860 | 25 | 25.25 | 65 | 49 | 50 | 75 | 80 | 15 | 3/8 | 1.66 | J650 | 20.4 |
600 Series Single Acting Displacement Hydraulic Cylinder/Ram
Characteristics
- Maximum working pressure: 200 bar
- Maximum testing pressure: 300 bar
- Maximum working speed: 0.5 m/s
- Working temperature: -30ºC to +90ºC
- Oil: mineral hydraulic
Materials
- Rod: chrome plated steel for durable operation and corrosion resistance
- Tube: steel construction with honed internal finish
- Guide bushing and piston: steel construction
Recommendations
- Protect the hydraulic circuit with a relief valve set to the correct working pressure.
- Check oil cleanliness and protect the cylinder circuit with suitable filtration.
- Bleed the circuit before start-up and protect the rod during storage or high-pressure cleaning.
- Do not weld on the cylinder tube.
