CETOP 3 Automatic Reciprocating Valve, 40 L/min, 50–200 Bar
4/2RHA06/20
Product Features:
Customers who bought this product also bought these
CETOP 3 Automatic Reciprocating Valve, 40 L/min, 50–200 Bar

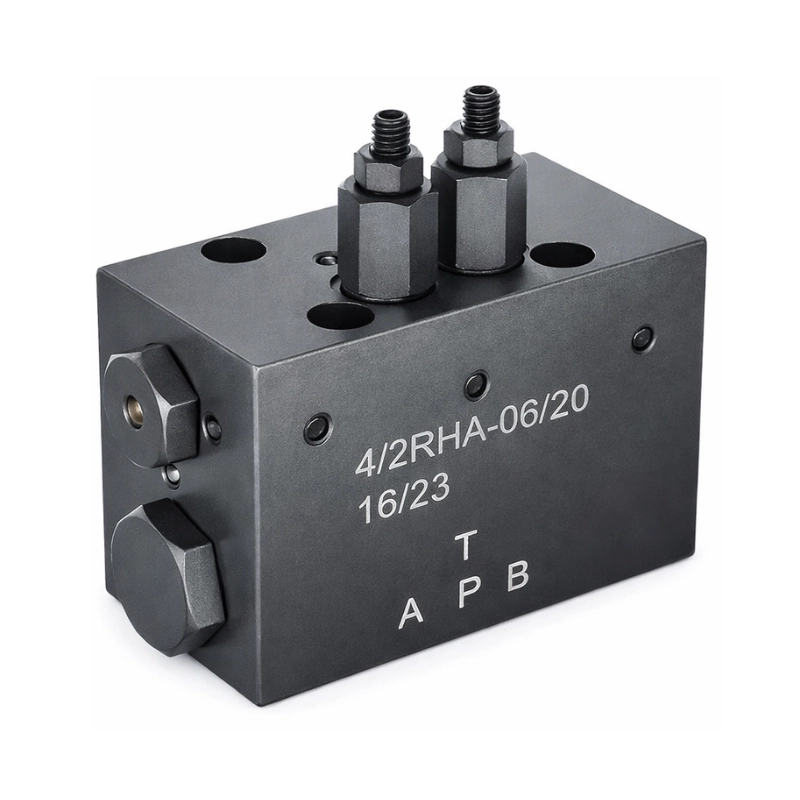

CETOP 3 Automatic Reciprocating Valve 4/2 RHA06 is a compact and efficient hydraulic directional control valve designed for automatic switching in hydraulic systems. This 4/2 automatic switching valve enables continuous reciprocating motion by automatically reversing flow direction, making it ideal for applications requiring repeated movement without electrical or manual control.
Designed to mount on a CETOP 3 (ISO 4401-03) subplate, this valve allows easy integration into standard hydraulic systems. It operates within a pressure range of 50 to 200 bar and supports a maximum flow rate of 40 L/min, making it suitable for a wide range of compact hydraulic applications. :contentReference[oaicite:0]{index=0}
The valve features initial switching via push pins, ensuring correct setup and reliable operation from installation. Built for use with mineral oil-based hydraulic fluids, it provides dependable performance across a wide range of operating conditions. :contentReference[oaicite:1]{index=1}
Technical Specifications
| Specification | Details |
|---|---|
| Valve type | 4/2 automatic switching (reciprocating) valve |
| Mounting standard | CETOP 3 (ISO 4401-03) |
| Working pressure | 50 – 200 bar |
| Flow rate | 3 – 40 L/min |
| Working fluid | Mineral oil |
| Fluid viscosity | 10 – 100 mm²/s |
| Filtration level | 25 µm or better |
| Operating temperature | -20°C to +80°C |
| Ambient temperature | -20°C to +50°C |
Common Applications
The CETOP 3 automatic reciprocating valve is commonly used in systems requiring automatic directional switching, including:
- Hydraulic cylinders – continuous extension and retraction
- Compact hydraulic systems – automated movement without electrical control
- Industrial machinery – repetitive motion applications
- Agricultural equipment – oscillating hydraulic functions
- Mobile machinery – simple, self-contained hydraulic control
