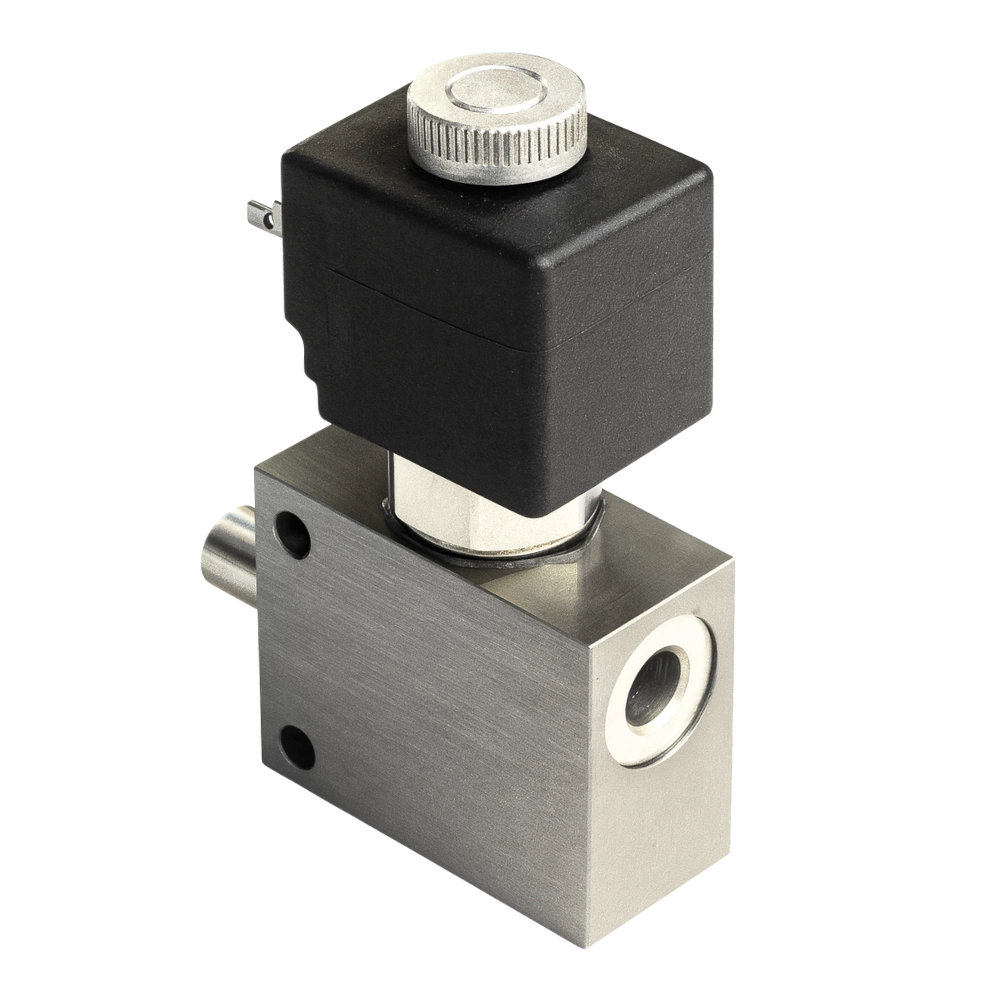

Walvoil VE/B 1/2" BSP 2 Way NC Pilot Operated Solenoid Valve, Steel Body, 60 L/min, 350 Bar, Emergency Bypass
1720032103
Product Features:
Customers who bought this product also bought these
Walvoil VE/B 1/2" BSP 2 Way NC Pilot Operated Solenoid Valve, Steel Body, 60 L/min, 350 Bar, Emergency Bypass
Walvoil VE/B 12/NC/ac 2-Way Pilot Operated Normally Closed Solenoid Valve (Code: 1720032103) is a compact and reliable 2-way, 2-position directional solenoid valve designed to open the line when the coil is energized. This version features a normally closed (NC) configuration with emergency bypass, making it well suited to hydraulic systems where dependable shut-off and controlled flow opening are required.
Built with a durable steel body and fitted with G1/2 BSP ports, this valve is suitable for medium to high pressure hydraulic applications in mobile, agricultural, industrial, and construction equipment. As part of the Walvoil VE/B series, it offers dependable pilot-operated performance, compact installation, and robust operating characteristics.
The VE/B 12/NC/ac model provides a nominal flow of 60 L/min and is designed for use with mineral based oil. Steel body versions in this range are rated up to 350 bar, making them suitable for demanding hydraulic circuits requiring electrically controlled on/off flow operation.
Available Models in This Range
| Model | Code | Description |
|---|---|---|
| VE/B 14/NC/ac | 1720012100 | Steel body, G1/4 ports |
| VE/B 38/NC/ac | 1720022102 | Steel body, G3/8 ports |
| VE/B 12/NC/ac | 1720032103 | Steel body, G1/2 ports |
| VE/B 34/NC/ac | 1720042104 | Steel body, G3/4 ports |
| VE/B 100/NC/ac | 1720052108 | Steel body, G1" ports |
Technical Specifications
| Specification | Details |
|---|---|
| Valve type | 2-way, 2-position pilot operated directional solenoid valve |
| Configuration | Normally closed (NC) with emergency bypass |
| Model | VE/B 12/NC/ac |
| Code | 1720032103 |
| Body material | Steel |
| Port size | G1/2 BSP |
| Nominal flow | 60 L/min |
| Max pressure | 350 bar (steel body) |
| Oil leakage | 0.25 cm³/min |
| Fluid | Mineral based oil |
| Viscosity | 10 – 200 cSt |
| Contamination level | ISO 4406 18/16/13 |
| Fluid temperature | -20°C to +80°C (with NBR seals) |
| Ambient temperature | -40°C to +100°C |
| Weight (steel) | 1.93 kg |
Common Applications
The Walvoil VE/B 12/NC/ac solenoid valve is commonly used in hydraulic systems requiring dependable electrically operated shut-off and line opening, including:
- Mobile hydraulic machinery
- Agricultural equipment
- Construction machinery
- Industrial hydraulic power units
- Cylinder and actuator control circuits
