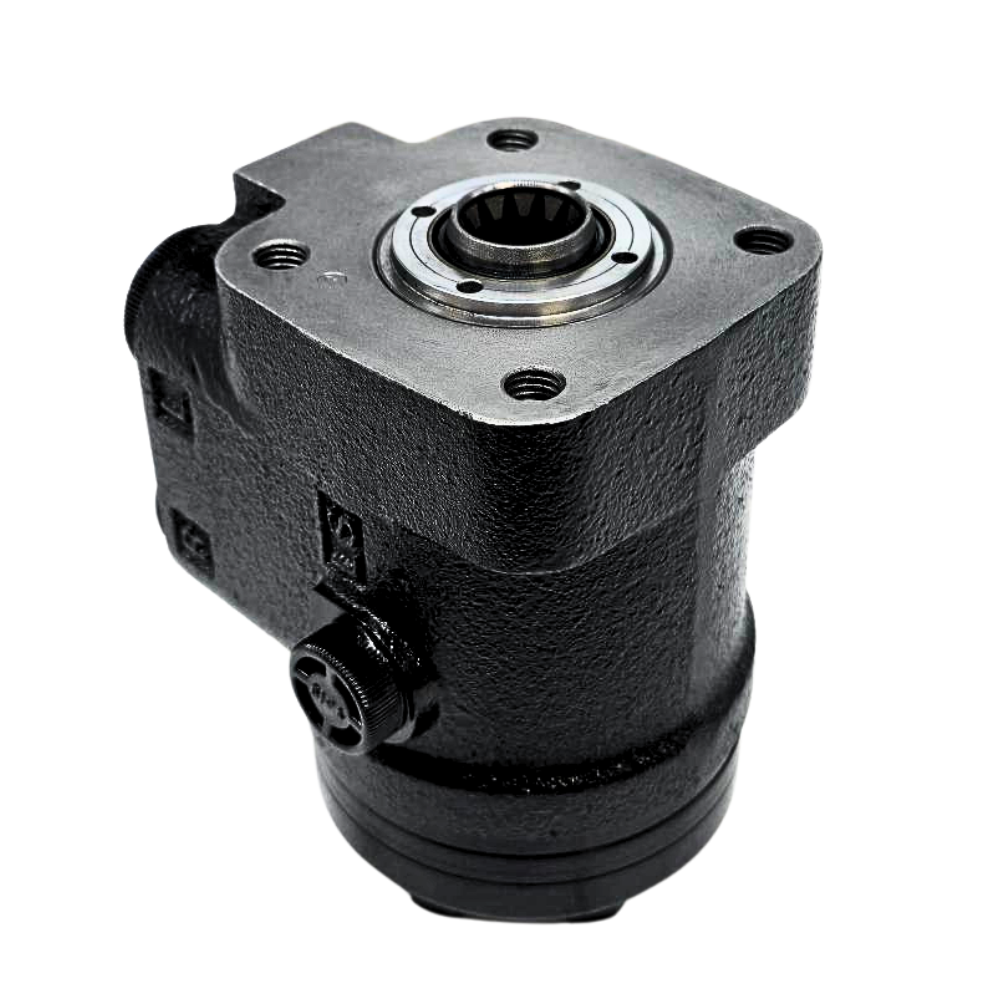

Hydraulic Steering Unit, Load Sensing, Non-Reaction, 50CC
BPB5-50-Y31-P
Product Features:
Hydraulic Steering Unit 50cc, Load Sensing Dynamic Non-Reaction – Direct Replacement for Danfoss OSPB500LS (150-0106)
The BPB5 hydraulic steering unit features a load sensing, non-reaction design with a piping-mounted priority valve connection, allowing for efficient integration into hydraulic systems.
- Load Sensing (LS): Adjusts hydraulic flow and pressure based on the actual steering demand (load), ensuring efficient energy use by supplying only the required amount of oil.
- Non-Reaction: Prevents feedback from the wheels from reaching the steering wheel — the steering wheel stays stationary even if external forces act on the wheels (e.g., hitting a rock or curb).

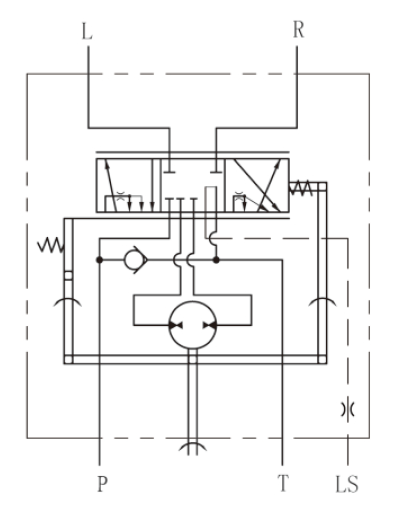

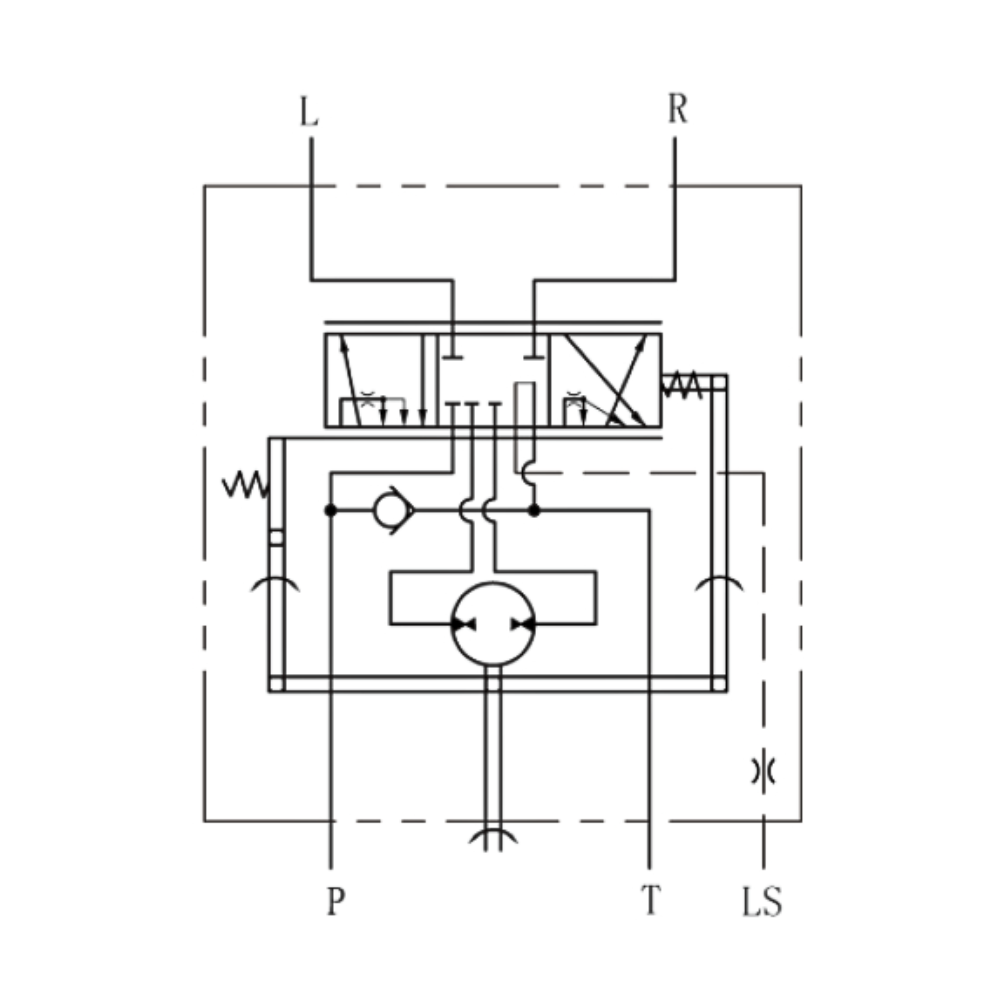

BPB5 HYDRAULIC CIRCUIT - LOAD SENSING DYNAMIC NON-REACTION

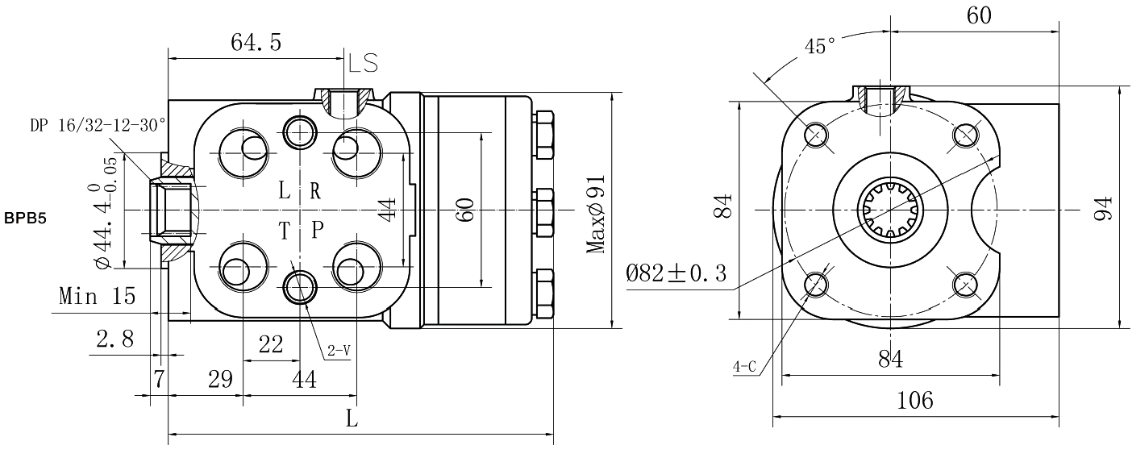

BPB5 DIMENSIONS
BPB5 COMPARISON TABLE
| Displacement | Rated Flow (@100 RPM) | Max Input Pressure | Max. Cont. Pressure in Line T | Power Steering Torque | Max. Manual Steering Torque | Dimensions L | Weight |
|---|---|---|---|---|---|---|---|
| cm3 /rev | L/min | Bar | Bar | N.m | N.m | mm | kg |
| 50 | 5 | 175 | 25 | 1.6 - 2.4 | 130 | 130 | 5.8 |
| 63 | 6 | 132 | 5.9 | ||||
| 80 | 8 | 133 | 6 | ||||
| 100 | 10 | 136 | 6.1 | ||||
| 125 | 12.5 | 139 | 6.2 | ||||
| 160 | 16 | 144 | 6.4 | ||||
| 200 | 20 | 149 | 6.5 | ||||
| 250 | 25 | 155 | 6.7 | ||||
| 280 | 28 | 160 | 7 | ||||
| 315 | 31.5 | 165 | 7.2 | ||||
| 400 | 40 | 175 | 7.4 |
CHARACTERISTICS
- With effective pressure compensation for changes in steering load.
- The steering unit maintains consistent flow and pressure, ensuring reliable steering performance.
- The steering circuit operates independently from other circuits, enhancing overall system efficiency.
- With high steering sensitivity and quick response, the steering performs well even in cold conditions.
NEED ASSISTANCE?
If you require a different setup, please contact our Sales Department — we’ll be happy to assist. Provide your current hydraulic steering unit part number, and we’ll cross-reference it with our direct equivalent.
