Filtrec FUH015 Portable Hydraulic Oil Filtration Unit, 15 L/min. Designed for portable hydraulic oil transfer and filtration unit with a 15 L/min flow rate.
Product Features:
Customers who bought this product also bought these
Filtrec FUH015 15 L/min Portable Hydraulic Oil Transfer & Filtration Unit
The Filtrec FUH015 is a compact portable unit for transferring and filtering hydraulic and lubricating oils. It combines a 15 L/min gear-pump circuit with a spin-on filter position for practical off-line filtration and fluid transfer.
The unit operates with fluids from 10-220 cSt and is powered from a 230 V supply, making it suitable for service, maintenance and reservoir clean-up applications.
Technical Specification
| Specification | Details |
|---|---|
| Product Series | Filtrec FUH015 |
| Product Type | Portable hydraulic oil transfer and filtration unit |
| Flow Rate | 15 L/min |
| Operating Temperature | 0°C to +80°C |
| Fluid Viscosity | 10-220 cSt |
| Voltage | 230 V |
| Frequency | 50-60 Hz |
| Power Consumption | 0.25 kW |
| Pump | Gear pump with 6 bar pressure relief valve |
| Filter Arrangement | A120, A121 or A150 spin-on element |
| Fluid Compatibility | HH, HL, HM, HV, HETG and HEES hydraulic fluids |

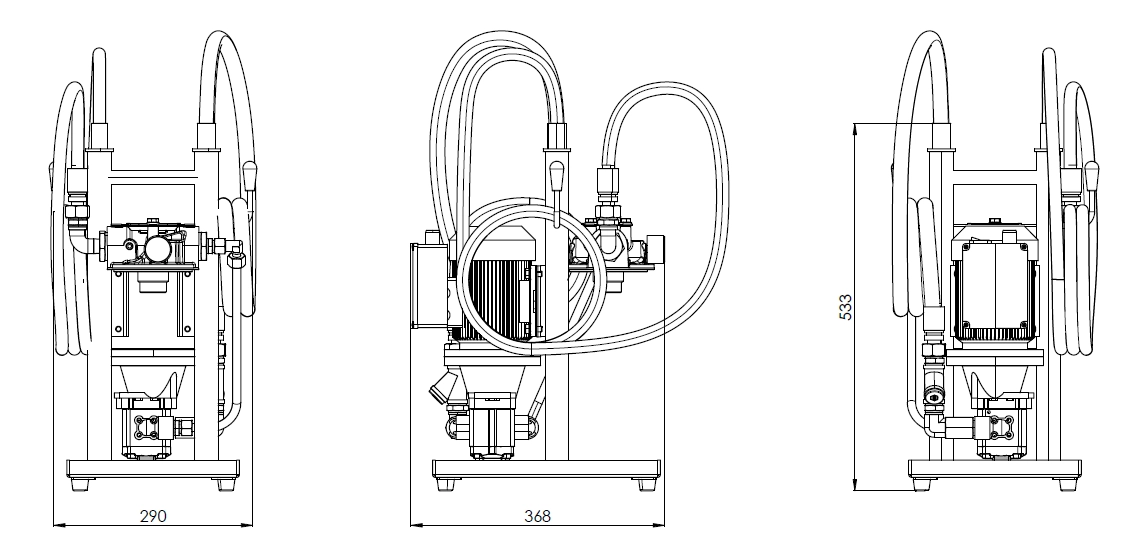

Dimensions

| Dimension | Value |
|---|---|
| Length | 290 mm |
| Width | 368 mm |
| Height | 533 mm |
| Dry Weight | 16 kg |
Filtration & Application
| Item | Details |
|---|---|
| Filter Media Options | Glass fibre, water-removal glass fibre, cellulose and water-removal cellulose options |
| Hydraulic Circuit | 500 Micron Y suction filter + spin-on filtration |
| Application | Oil transfer, off-line filtration and reservoir clean-up |
Product Features
- 15 L/min portable hydraulic oil transfer and filtration
- 10-220 cSt fluid viscosity range
- 230 V / 0.25 kW electric motor
- Spin-on filter position for A120, A121 or A150 elements
- Compact 16 kg painted-steel frame
Need help choosing? Contact the Flowfit team for filtration-unit selection, filter element advice and technical support.
