Filtrec FS1-10 Suction Strainer, 125 Micron Wire Mesh, 3/8" BSP, 16 L/min
FS1-10-B2-T125
Filtrec FS1-10 hydraulic suction strainer with 125 Micron wire mesh, 3/8" BSP connection and 16 L/min listed flow rate, without bypass.
Product Features:
Customers who bought this product also bought these
Filtrec FS1-10 125 Micron Hydraulic Suction Strainer - 3/8" BSP, 16 L/min
The Filtrec FS1-10 suction strainer is configured with 125 Micron wire mesh, a 3/8" BSP connection and a listed flow rate of 16 L/min.
Designed for direct mounting on the suction line and immersion in the hydraulic reservoir, the FS1 range helps protect the pump from coarse contamination before oil enters the suction circuit.

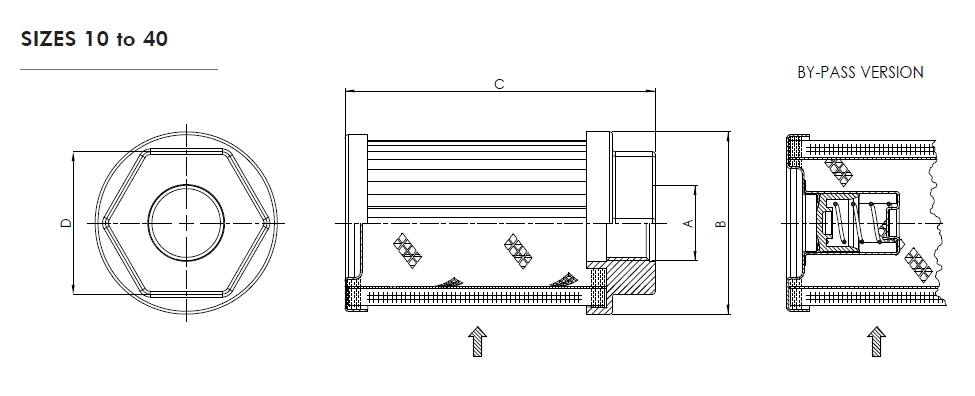

Dimensions & Model Reference
| Model | Port Size (A) | Body Size (B) | Overall Length (C) | Body Diameter (D) | Reference Flow Rate | Weight |
|---|---|---|---|---|---|---|
| FS1-10 | 3/8" BSP | 46 mm | 91 mm | 36 mm | 16 L/min | 0.10 kg |
| FS1-11 | 1/2" BSP | 46 mm | 106 mm | 36 mm | 26 L/min | 0.12 kg |
| FS1-20 | 3/4" BSP | 64 mm | 109 mm | 50 mm | 45 L/min | 0.20 kg |
| FS1-21 | 1" BSP | 64 mm | 139 mm | 50 mm | 65 L/min | 0.22 kg |
| FS1-30 | 1 1/4" BSP | 86 mm | 139 mm | 65 mm | 110 L/min | 0.36 kg |
| FS1-33 | 1 1/2" BSP | 86 mm | 200 mm | 65 mm | 150 L/min | 0.40 kg |
| FS1-34 | 2" BSP | 86 mm | 260 mm | 75 mm | 240 L/min | 0.50 kg |
| FS1-40 | 2" BSP | 150 mm | 151 mm | 110 mm | 240 L/min | 0.80 kg |
| FS1-42 | 2 1/2" BSP | 150 mm | 212 mm | 110 mm | 380 L/min | 0.98 kg |
| FS1-43 | 3" BSP | 150 mm | 272 mm | 110 mm | 500 L/min | 1.10 kg |
Dimensions are shown in millimetres. Flow figures in this reference table are Filtrec catalogue values measured at a clean-element pressure drop of 0.02 bar using 32 cSt oil.
Technical Specification
| Specification | Details |
|---|---|
| Series | FS1 |
| Product Type | Hydraulic Suction Strainer |
| Filtration | 125 Micron |
| Filter Media | Stainless Steel Wire Mesh |
| Port Size | 3/8" BSP |
| Flow Rate | 16 L/min |
| Bypass Valve | No bypass |
| Differential Collapse Pressure | 1 bar |
| Operating Temperature | -20°C to +100°C |
| Installation | Direct suction-line mounting, immersed in reservoir |
