Hydraulic D/Acting Cylinder/Ram 40Bore 25Rod 400Stroke 570Closed 701/4
701/4
40mm bore x 25mm rod x 400mm stroke, pin holes at base and rod end 20.25mm, double acting hydraulic ram/cylinder rated to 200Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Double Acting Cylinder/Ram 40Bore 25Rod 400Stroke 570Closed 701/4

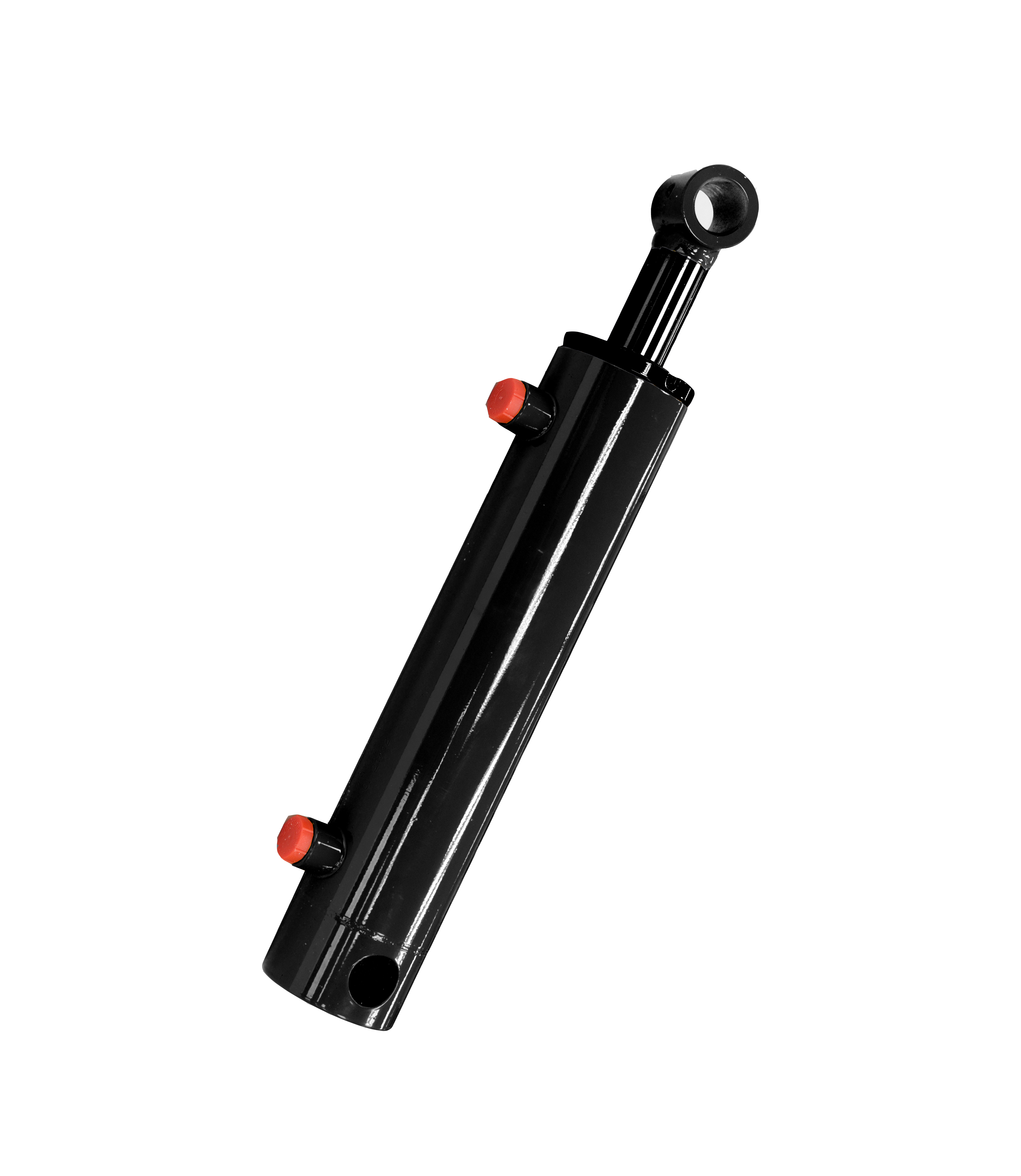

This standard 700 Series double-acting hydraulic cylinder/ram features a 40mm bore and fixed pin holes, making it suitable for reliable linear hydraulic movement in mobile, agricultural, and industrial applications.
Supplied as model 701/4, this listing includes the dimensional image and the full model/dimension table below so alternative strokes and related model codes can be checked before ordering.
| Specification | Details |
|---|---|
| SKU / model code | 701/4 |
| Product type | Double acting hydraulic cylinder / ram |
| Bore | 40 mm |
| Rod | 25 mm |
| Stroke | 400 mm |
| Closed | 570 mm |
| Port size | 3/8 BSP |
| Oil volume | 0.5 L |
| Weight | 5.8 kg |
Common applications & operating notes
Suitable for agricultural machinery, trailers, tippers, plant equipment, hydraulic attachments and replacement ram applications.
Note: maximum working pressure 200 bar, maximum test pressure 300 bar, maximum working speed 0.5 m/s and working temperature -30ºC to +90ºC.
MODEL COMPARISON
| SKU | ØA | ØB | STROKEZ | E | C | D | F | G | H | I | J | K | L | MBSP | VOL(L) | WEIGHT(KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 701/1 | 25 | 40 | 100 | 270 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.13 | 3 |
| 701/150 | 25 | 40 | 150 | 320 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.19 | 3.5 |
| 701/2 | 25 | 40 | 200 | 370 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.25 | 3.9 |
| 701/250 | 25 | 40 | 250 | 420 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.31 | 4.5 |
| 701/3 | 25 | 40 | 300 | 470 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.38 | 4.8 |
| 701/350 | 25 | 40 | 350 | 520 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.44 | 5.4 |
| 701/4 | 25 | 40 | 400 | 570 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.5 | 5.8 |
| 701/450 | 25 | 40 | 450 | 620 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.57 | 6.3 |
| 701/5 | 25 | 40 | 500 | 670 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.63 | 6.7 |
| 701/600 | 25 | 40 | 600 | 770 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.75 | 7.7 |
| 701/700 | 25 | 40 | 700 | 870 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 0.88 | 8.7 |
| 701/800 | 25 | 40 | 800 | 970 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.01 | 9.6 |
| 701/900 | 25 | 40 | 900 | 1070 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.13 | 10.6 |
| 701/1000 | 25 | 40 | 1000 | 1170 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.26 | 11.6 |
| 701/1100 | 25 | 40 | 1100 | 1270 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.38 | 12.4 |
| 701/1200 | 25 | 40 | 1200 | 1370 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.51 | 13.4 |
| 701/1300 | 25 | 40 | 1300 | 1470 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.63 | 14.3 |
| 701/1400 | 25 | 40 | 1400 | 1570 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.76 | 15.3 |
| 701/1500 | 25 | 40 | 1500 | 1670 | 17.5 | 20.25 | 40 | 50 | 54,5 | 35 | 37.5 | 40 | 15 | 3/8 | 1.89 | 16.2 |
700 SERIES DOUBLE ACTING HYDRAULIC CYLINDER/RAM
Characteristics
- Maximum working pressure: 200 bar
- Maximum testing pressure: 300 bar
- Maximum working speed: 0.5 m/s
- Working temperature: -30 ºC to +90 ºC.
- Oil: mineral hydraulic.
Materials
- Rod: chrome plated steel F-1140, minimum chrome layer thickness 20 micron, roughness Ra <0,2, minimum surface hardness 900 HV, corrosion resistance minimum 200 hours in neutral saline fog according to ISO9227 rating 9.
- Tube: steel ST-52-3, DIN 2393, inside diameter tolerance ISO H9, roughness Ra <0,8 micron.
- Guide-bushing: steel F-1140 nitrated (nitride hardening)
- Piston: steel F-1140.
Seals
- Guide-bushing:
- Dynamic: compact polyurethane rod-seal, double lip. NBR metal wiper seal.
- Static: NBR 90 shore O-ring.
- Piston:
- Dynamic: compact double-acting polyurethane seal, plus nitrile O-ring as activator.
- Special polyacetal guides reinforced with glass fibre.
- Static: polyamide locking sealing guide.
Finishing
Black prime painting
Recommendations
- Protect the cylinder circuit with a relief valve set at 200 bar.
- Check the oil cleanness (pollution), and prevent it from having strange objects (place a filter on the cylinder circuit).
- Bleed the circuit by slightly loosing the cylinder fittings before starting-up.
- Do not weld on the cylinder tube.
- Before welding on the rod or on the bottom, please dismount the cylinder. - In case you need to store the cylinders for a long period of time, please avoid outdoor storage. If not possible, the rod must be completely retracted or it must be greased instead.
- For high-pressure cleaning or blasting on the cylinder, the rod and the oil-ports must be suitably protected.
- For double-acting cylinders working as single acting, we recommend to connect the non-used oil-port to tank.
- In case you need to dismount the cylinder, please note that the piston is screwed onto the rod end and fixed with industrial glue, so you must use also industrial glue
- When mounting again.
