Hydraulic D/Acting Cylinder/Ram 32Bore 20Rod 50Stroke 205Closed 700/05

Hydraulic D/Acting Cylinder/Ram 32Bore 20Rod 50Stroke 205Closed 700/05

Product SKU:

700/05

as low as

£74.56

£89.47 incl. VAT

Stroke

Quantity:

In Stock

12 Month Warrantly

32mm bore x 20mm rod x 50mm stroke, pin holes at base and rod end 16.2mm, double acting hydraulic cylinder/ram rated to 200Bar

Product Features:

32mm Bore

20mm Rod

50mm Stroke

205mm Closed centre

1/4" BSP Ports

Customers who bought this product also bought these

1/4 BSP x 1/4 BSP M/M Hydraulic Adaptor

£0.98

More options

Hydraulic Hose Burst Valve Cartridge with Male/Fem Body VUBA 1/4 MMF

£7.95

More options

Grease Nipple to Suit Hydraulic Cylinder, M8x1,25

£0.64

More options

Flowfit Standard and Smooth Hose Builder

£0.00

More options

Exol Ultramax Hydraulic Oil, ISO 32, 5 Litre

£16.64

More options

Hydraulic Double Acting Cylinder/Ram 32Bore 20Rod 50Stroke 205Closed 700/05

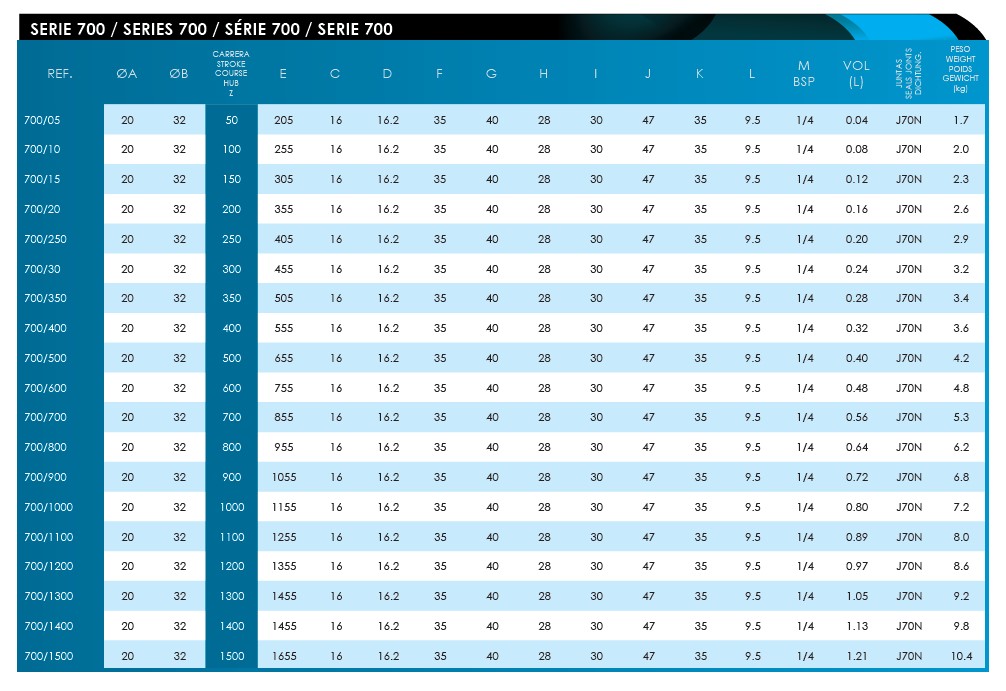

SKU	ØA	ØB	STROKE Z	E	C	D	F	G	H	I	J	K	L	M BSP	VOL (L)	SEAL JOINTS	WEIGHT (KG)
700/05	20	32	50	205	16	16.2	35	40	28	30	47	35	9.5	1/4	0.04	J70N	1.7
700/10	20	32	100	255	16	16.2	35	40	28	30	47	35	9.5	1/4	0.08	J70N	2.0
700/15	20	32	150	305	16	16.2	35	40	28	30	47	35	9.5	1/4	0.12	J70N	2.3
700/20	20	32	200	355	16	16.2	35	40	28	30	47	35	9.5	1/4	0.16	J70N	2.6
700/250	20	32	250	405	16	16.2	35	40	28	30	47	35	9.5	1/4	0.20	J70N	2.9
700/30	20	32	300	455	16	16.2	35	40	28	30	47	35	9.5	1/4	0.24	J70N	3.2
700/350	20	32	350	505	16	16.2	35	40	28	30	47	35	9.5	1/4	0.28	J70N	3.4
700/400	20	32	400	555	16	16.2	35	40	28	30	47	35	9.5	1/4	0.32	J70N	3.6
700/500	20	32	500	655	16	16.2	35	40	28	30	47	35	9.5	1/4	0.40	J70N	4.2
700/600	20	32	600	755	16	16.2	35	40	28	30	47	35	9.5	1/4	0.48	J70N	4.8
700/700	20	32	700	855	16	16.2	35	40	28	30	47	35	9.5	1/4	0.56	J70N	5.3
700/800	20	32	800	955	16	16.2	35	40	28	30	47	35	9.5	1/4	0.64	J70N	6.2
700/900	20	32	900	1055	16	16.2	35	40	28	30	47	35	9.5	1/4	0.72	J70N	6.8
700/1000	20	32	1000	1155	16	16.2	35	40	28	30	47	35	9.5	1/4	0.80	J70N	7.2
700/1100	20	32	1100	1255	16	16.2	35	40	28	30	47	35	9.5	1/4	0.89	J70N	8.0
700/1200	20	32	1200	1355	16	16.2	35	40	28	30	47	35	9.5	1/4	0.97	J70N	8.6
700/1300	20	32	1300	1455	16	16.2	35	40	28	30	47	35	9.5	1/4	1.05	J70N	9.2
700/1400	20	32	1400	1455	16	16.2	35	40	28	30	47	35	9.5	1/4	1.13	J70N	9.8
700/1500	20	32	1500	1655	16	16.2	35	40	28	30	47	35	9.5	1/4	1.21	J70N	10.4

700 SERIES DOUBLE ACTING HYDRAULIC CYLINDER/RAM 32MM BORE WITH FIXED PIN HOLES

CHARACTERISTICS
− Maximum working pressure: 200 bar
− Maximum testing pressure: 300 bar
− Maximum working speed: 0.5 m/s
− Working temperature: -30 ºC to +90 ºC.
− Oil: mineral hydraulic.

MATERIALS
- Rod: chrome plated steel F-1140, minimum chrome layer thickness 20 micron, roughness Ra <0,2, minimum surface hardness 900 HV, corrosion resistance minimum 200 hours in neutral saline fog according to ISO9227 rating 9.
- Tube: steel ST-52-3, DIN 2393, inside diameter tolerance ISO H9, roughness Ra <0,8 micron.
- Guide-bushing: steel F-1140 nitrated (nitride hardening)
- Piston: steel F-1140.

SEALS
Guide-bushing:
- Dynamic: compact polyurethane rod-seal, double lip. NBR metal wiper seal.
- Static: NBR 90 shore O-ring.
Piston:
- Dynamic: compact double-acting polyurethane seal, plus nitrile O-ring as activator.
Special polyacetal guides reinforced with glass fibre.
- Static: polyamide locking sealing guide.

FINISHING
Black prime painting

RECOMMENDATIONS
- Protect the cylinder circuit with a relief valve set at 200 bar.
- Check the oil cleanness (pollution), and prevent it from having strange objects (place a filter on the cylinder circuit).
- Bleed the circuit by slightly loosing the cylinder fittings before starting-up.
- Do not weld on the cylinder tube.
- Before welding on the rod or on the bottom, please dismount the cylinder. - In case you need to store the cylinders for a long period of time, please avoid outdoor storage. If not possible, the rod must be completely retracted or it must be greased instead.
- For high-pressure cleaning or blasting on the cylinder, the rod and the oil-ports must be suitably protected.
- For double-acting cylinders working as single acting, we recommend to connect the non-used oil-port to tank.
- In case you need to dismount the cylinder, please note that the piston is screwed onto the rod end and fixed with industrial glue, so you must use also industrial glue
when mounting again.
