Honda iGX390, 11.7 HP Petrol Engine, Recoil/Electric Start, Horizontal Mount
IGX390UT2X-QZ-HW-OH
Product Features:
Honda iGX390, 11.7 HP Petrol Engine, Recoil/Electric Start, Horizontal Mount
The Honda iGX390 is a next-generation 4-stroke petrol engine designed for intelligent performance, fuel efficiency, and user convenience. It features an electronic, factory-programmed speed regulator, making it ideal for applications that benefit from advanced control features such as Auto-Idle and Auto-Choke.
Building on the renowned reliability of Honda’s GX series, the iGX390 introduces enhanced electronic management for optimal operation under varying loads.
ADVANCED FEATURES
- Electronic Governor System: Maintains stable engine speed even under changing loads.
- Programmable Speed Modes: Factory-set options include Auto-Idle, Fixed RPM Switch Mode, and Variable RPM Mode.
- Automatic Choke: Enables easy starting—even without a battery.
-Auto-Idle System: Reduces fuel consumption and noise, improving overall user comfort.
KEY SPECIFICATIONS
-
Engine Type: 4-stroke OHV single-cylinder petrol engine
-
Cylinder Sleeve: Cast iron for durability
-
Displacement: 389 cm³
-
Bore x Stroke: 88 x 64 mm
-
Compression Ratio: 8.2 : 1
-
Net Power Output: 8.7 kW (11.7 HP) @ 3600 rpm
-
Continuous Rated Power: 7.0 kW (9.4 HP) @ 3600 rpm / 6.4 kW (8.6 HP) @ 3000 rpm
-
Maximum Net Torque: 26.5 Nm (2.7 kgfm) @ 2500 rpm
-
Ignition System: Digital CDI with variable ignition timing
-
Governor System: Electronic for precise control
-
Starting System: Recoil and electric start options
-
Choke: Automatic for easy starting
-
Fuel Tank Capacity: 6.1 L
-
Fuel Consumption: Approx. 3.5 L/h @ 3600 rpm
-
Engine Oil Capacity: 1.1 L
-

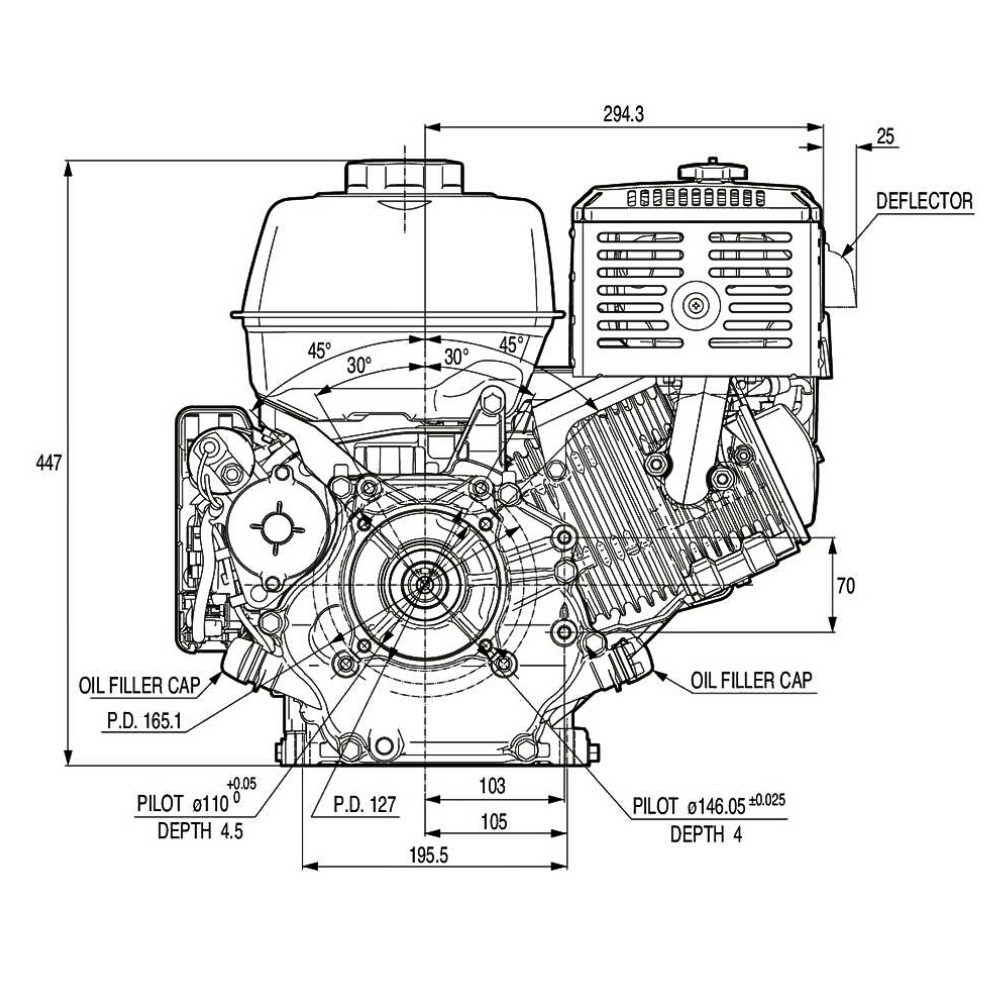

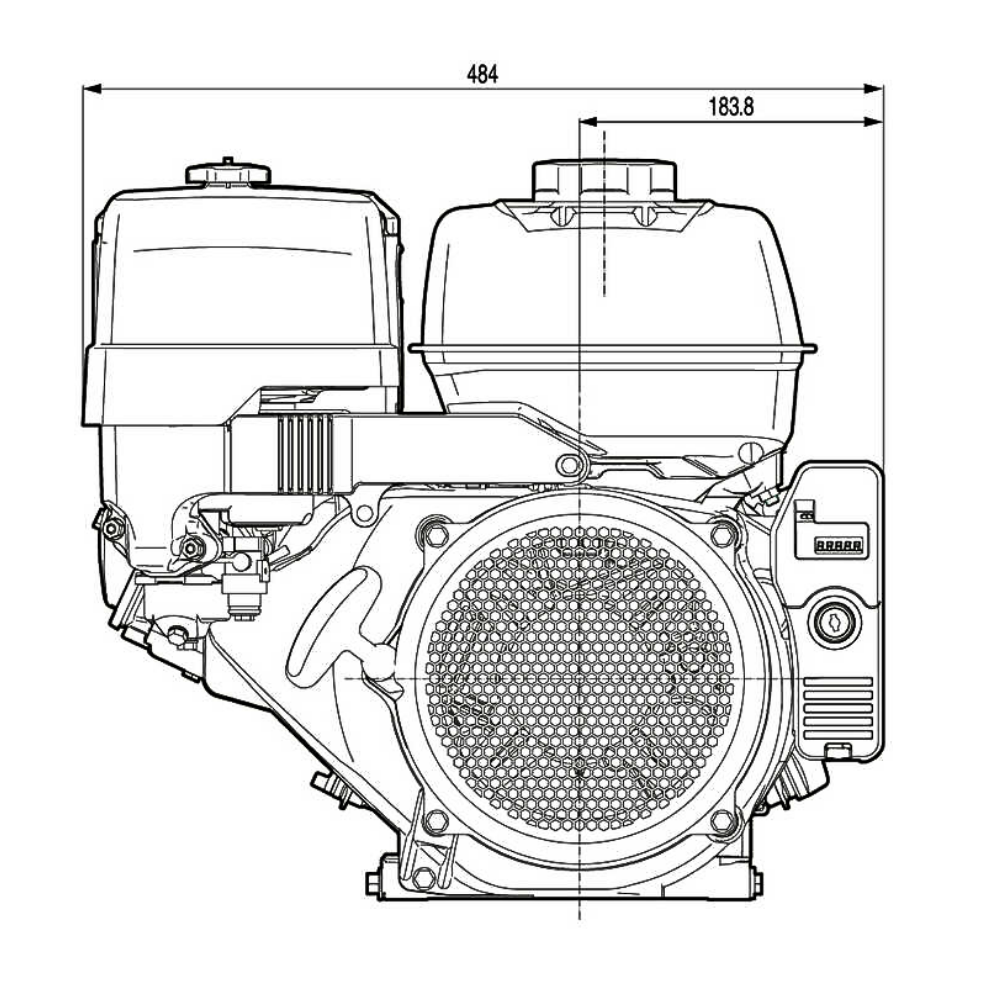

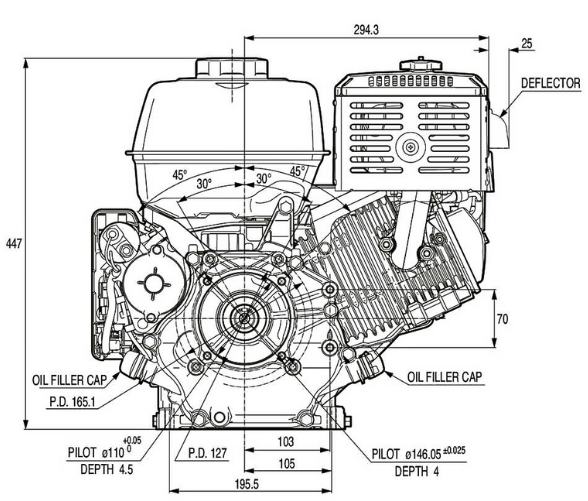

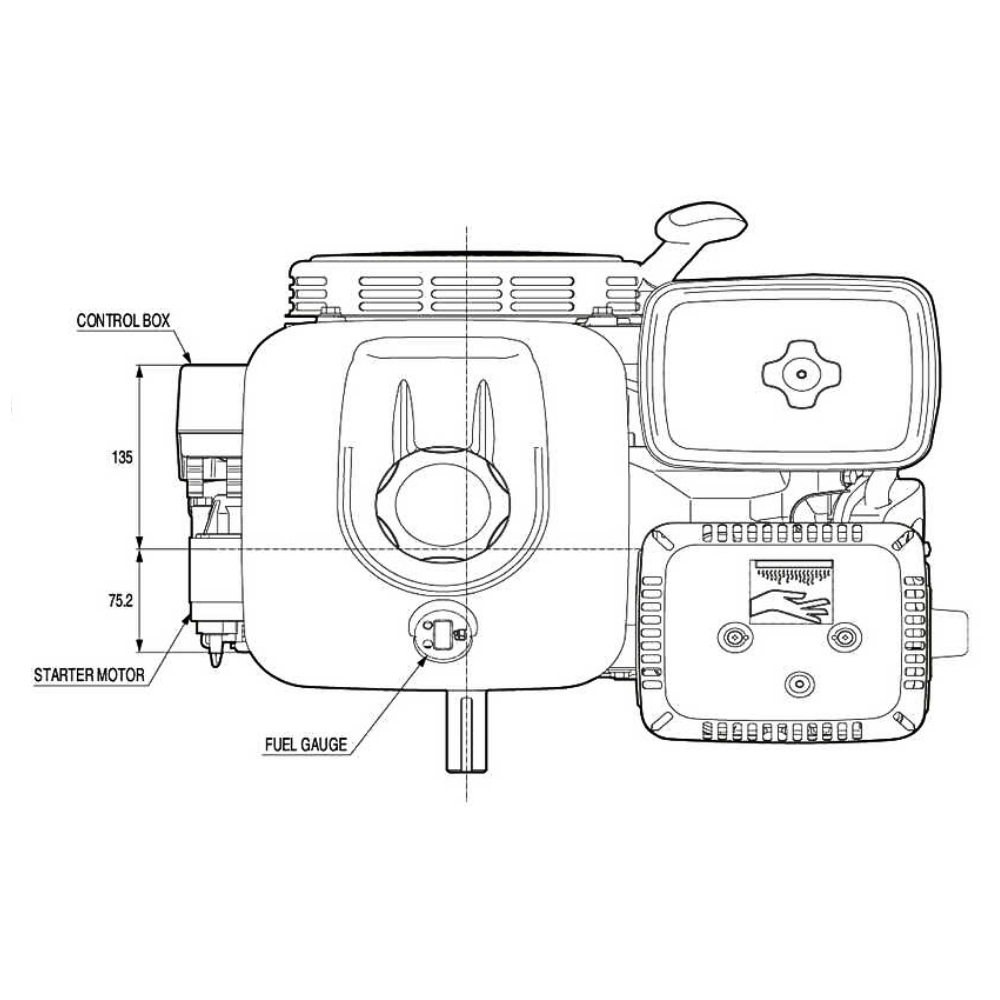

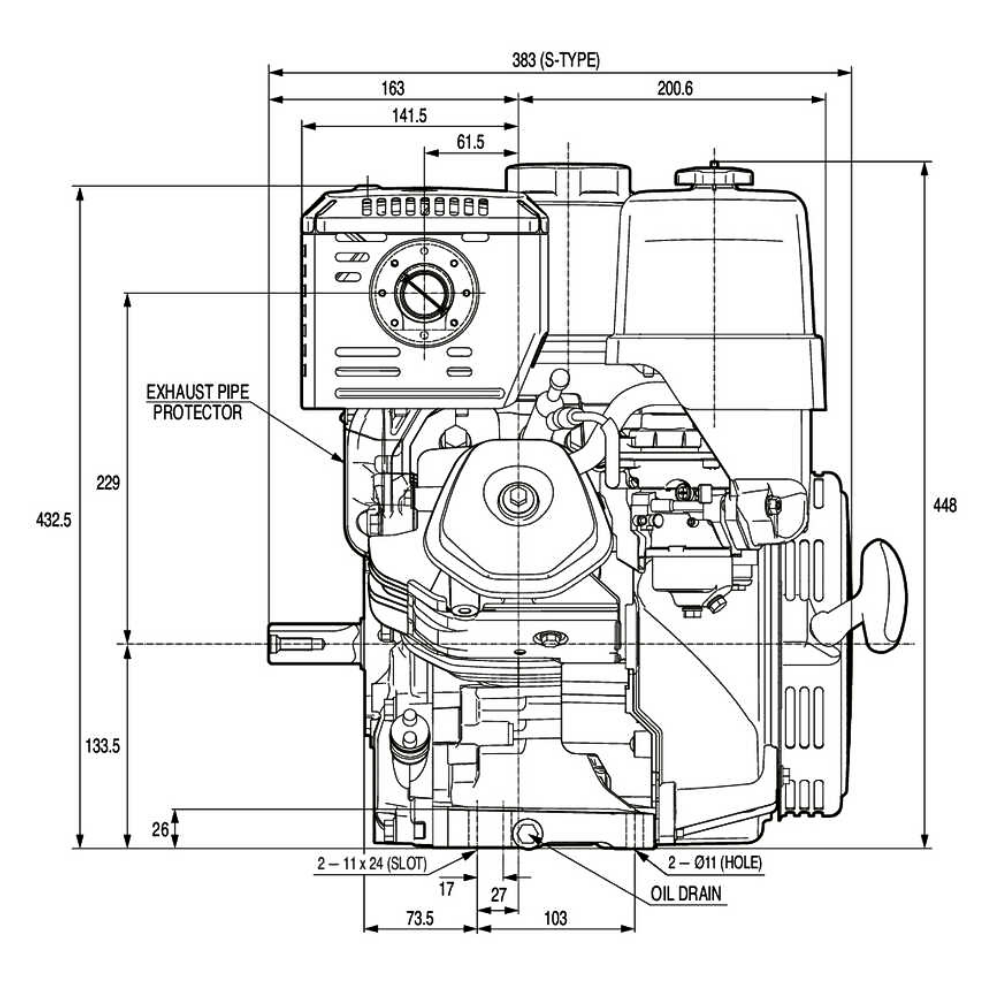

Dimensions (L × W × H): 409 × 484 × 448 mm
-
Dry Weight: 37.0 kg
