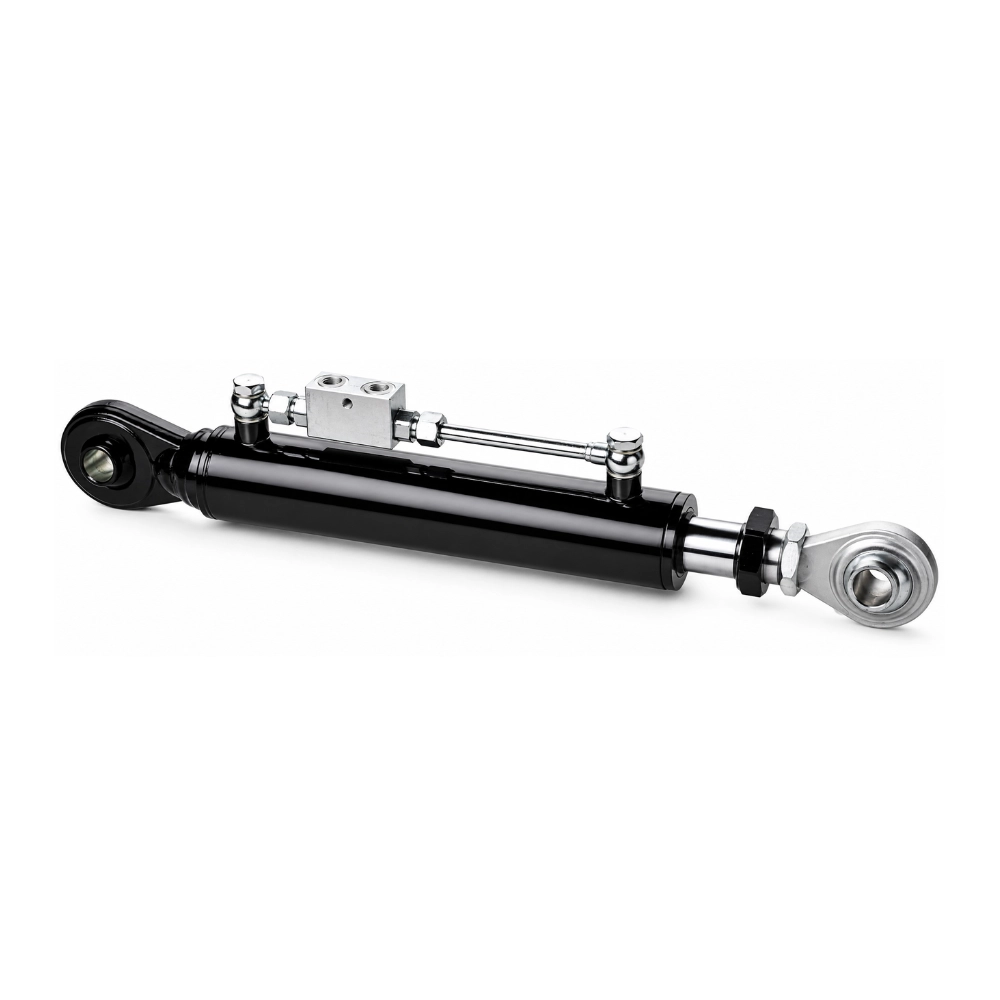

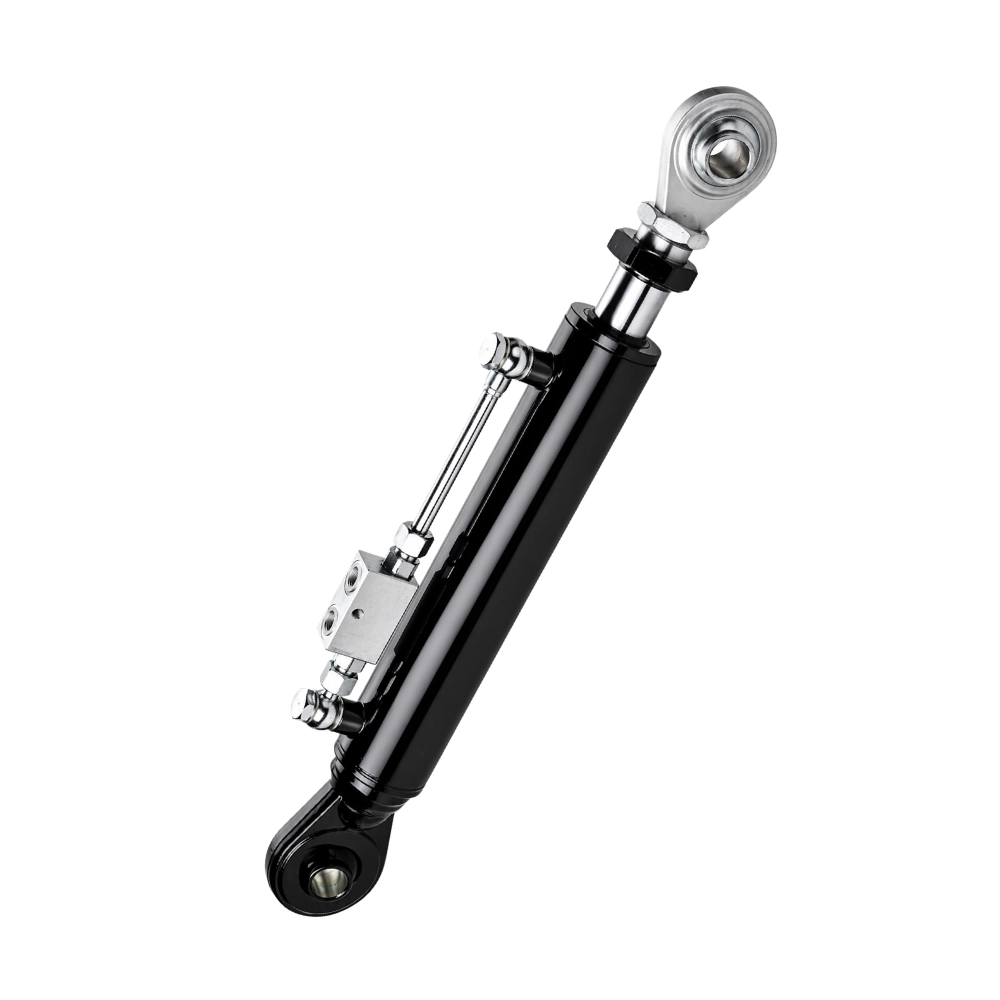

Adjustable Top Link Double Acting Hydraulic Cylinder 60mm Bore x 40mm Rod x 200mm Stroke
746AAR
Adjustable Top Link Double Acting Hydraulic Cylinder 60mm Bore x 40mm Rod x 200mm Stroke with 518mm closed centre for tractor top link, linkage adjustment and agricultural implement positioning.
Product Features:
Customers who bought this product also bought these
Adjustable Tractor Top Link Hydraulic Ram 60mm Bore x 40mm Rod x 200mm Stroke
This Adjustable Top Link Double Acting Hydraulic Cylinder 60mm Bore x 40mm Rod x 200mm Stroke is designed for tractor top link and agricultural implement positioning, providing controlled hydraulic adjustment for linkage angle and attachment setup.
With 60mm bore, 40mm rod, 200mm stroke and 518mm closed centre, it is suited to replacement, upgrade and fitment-checking applications on compatible tractor top link systems.
| Specification | Details |
|---|---|
| Product type | Top link double acting hydraulic cylinder / ram |
| Bore | 60mm |
| Rod | 40mm |
| Stroke | 200mm |
| Closed centre | 518mm |
| SKU / model code | 746AAR |
Common applications & buying notes
Ideal for agricultural tractors, linkage adjustment, implement angle control and hydraulic top link replacement where the bore, rod, stroke and closed centre measurements match the existing cylinder.
Note: check closed centre, stroke and pin hole size before ordering to confirm compatibility with your top link and implement setup.
MODEL COMPARISON
| SKU | ØA | ØB | STROKE Z | E | G | K | L | WEIGHT (KG) | SEALS JOINTS |
|---|---|---|---|---|---|---|---|---|---|
| 746AAR | 40 | 60 | 200 | 518 | 70 | 45 | 229 | 9.93 | J4060N |
| 746BAR | 40 | 60 | 250 | 568 | 70 | 45 | 229 | 10.93 | J4060N |
| 746CAR | 40 | 60 | 300 | 618 | 70 | 45 | 229 | 11.8 | J4060N |
| 747AAR | 45 | 70 | 200 | 544 | 80 | 49 | 231 | 12.21 | J4570N |
| 747BAR | 45 | 70 | 250 | 594 | 80 | 49 | 231 | 13.36 | J4570N |
| 747CAR | 45 | 70 | 300 | 644 | 80 | 49 | 231 | 14.51 | J4570N |
Top Link Double Acting Hydraulic Cylinder
Characteristics
- Double acting hydraulic operation for powered extension and retraction.
- Designed for tractor top link linkage adjustment and agricultural implement positioning.
- Check valve options help hold the cylinder position under load where supplied.
- Use mineral hydraulic oil and operate within the pressure rating shown for the cylinder series.
Fitment checks
- Confirm bore, rod and stroke: 60mm x 40mm x 200mm.
- Confirm closed centre measurement: 518mm.
- Confirm pin hole size and mounting compatibility before ordering.
Recommendations
- Protect the hydraulic circuit with a correctly set relief valve.
- Bleed the system carefully before first use.
- Keep the rod protected from impact, dirt and corrosion during operation and storage.
