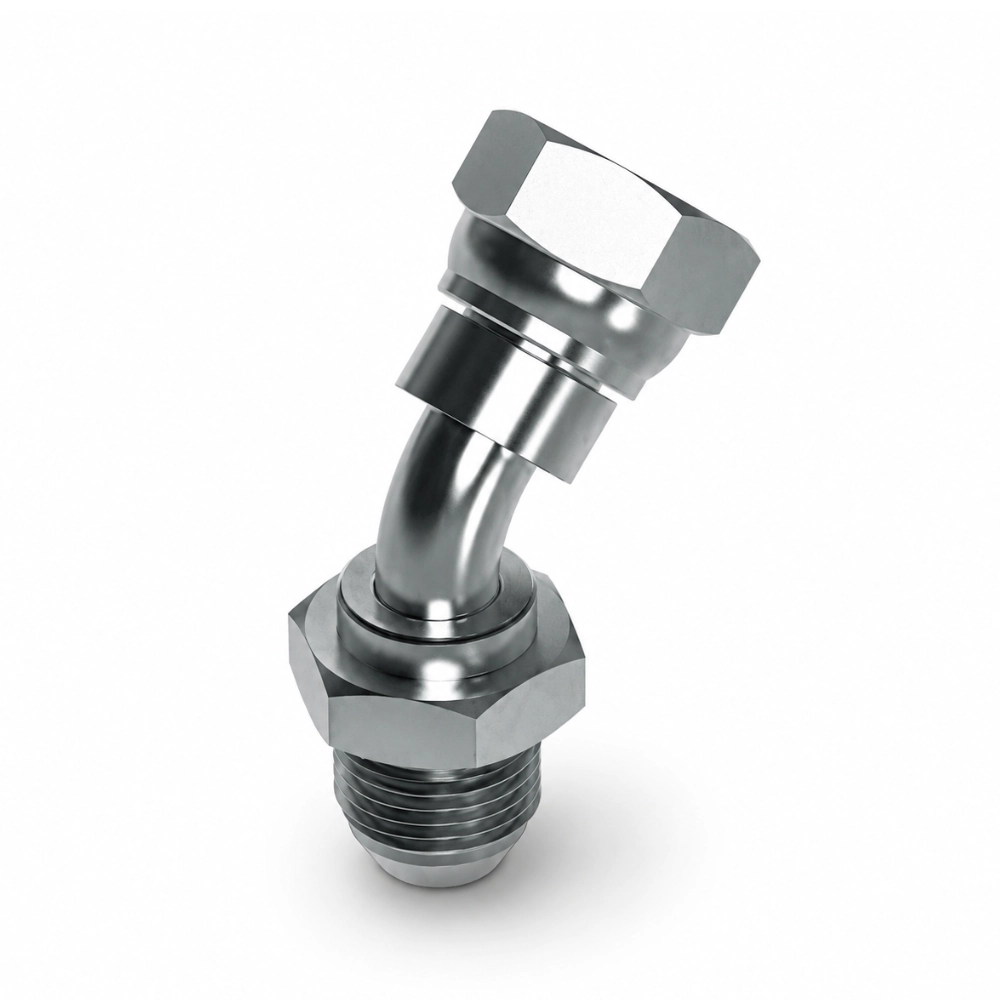

1/4" BSP JIS Male to Swivel Female 135° Swept Hydraulic Adaptor
BUR16020JIS
Product Features:
Customers who bought this product also bought these
1/4" BSP JIS 135° Swept Male to Female Swivel Elbow
Buy the 1/4" BSP JIS Male to Swivel Female 135° Swept Hydraulic Adaptor for joining compatible JIS male and swivel female connections while routing the hydraulic line through a 135° swept change of direction.
Both ends use 1/4" BSP-threaded JIS connection geometry, with a male end and a swivel female end for installation flexibility.
Designed for professional hydraulic installation, maintenance, servicing and repair where the stated JIS connection format is required.
Technical Data
| Specification | Details |
|---|---|
| Product Type | JIS male-to-swivel-female 135° swept adaptor |
| Thread Size | 1/4" BSP |
| Connection 1 | 1/4" BSP-threaded JIS male |
| Connection 2 | 1/4" BSP-threaded JIS swivel female |
| Seat Standard | JIS 60° cone |
| Angle / Form | 135° swept elbow |
| Function | Routes a compatible JIS hydraulic connection through a swept change of direction. |
Models Available In This Range
| SKU | Configuration |
|---|---|
| BUR16020JIS | 1/4" BSP-threaded JIS male to swivel female 135° swept adaptor |
| BUR16021JIS | 3/8" BSP-threaded JIS male to swivel female 135° swept adaptor |
| BUR16022JIS | 1/2" BSP-threaded JIS male to swivel female 135° swept adaptor |
| BUR16024JIS | 3/4" BSP-threaded JIS male to swivel female 135° swept adaptor |
| BUR16025JIS | 1" BSP-threaded JIS male to swivel female 135° swept adaptor |
Suitable Applications
- 135° directional routing of JIS hydraulic hose connections
- Hydraulic assemblies where a straight connection is impractical
- Japanese and imported machinery with BSP-threaded JIS fittings
- Hydraulic system installation and modification
- Maintenance, servicing and replacement work
Note: Check the BSP thread size, JIS 60° cone seat, swivel female mating connection and required elbow orientation before ordering.
