Filtrec Hydraulic Modular In Line High Pressure, FDM-D1-08-G03-B-B-D-W-VX5, 5.25L/Min, 3 Micron
FDMD108G03BBDWVX5
Modular filters with CETOP interface, operating pressure up to 315 Bar, flow rate up to 40L/Min. Indicator port is a standard option to fit a visual or electrical differential indicator.
Product Features:
Filtrec Hydraulic Modular In Line High Pressure, FDM-D1-08-G03-B-B-D-W-VX5, 5.25L/Min, 3 Micron
Technical Information:
Housing - tested according to NFPA T3.10.5.1, ISOO3968

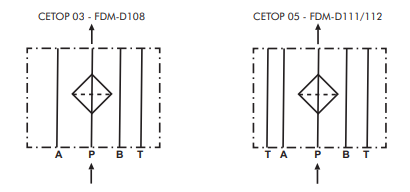

Hydraulic Symbol:
Pressure: Max Operating: 315 Bar, Burst: 945 Bar
Connection Ports: CETOP 03 - CETOP 05
Material: Head Steel, Bowl Steel, Seal NBR (FKM on request)
Bypass: No by-pass
Element- tested according to ISO 2941, 2942, 2943, 3968, 16889, 23181
Filter Media: Inorganic microfiber: G03-G06-G10-G25
Differential Collapse Pressure: 210 Bar
Operating Temperature Range: -25 + 100C
Fluid Compatibility: Full with HH-HL-HM-HV (acc. To ISO 2943)
For use with other fluid please contact us
