Filtrec FUHF50 Portable Diesel and Oil Filtration Unit
FUHF50MG2VS0
Product Features:
Portable Diesel & Oil Filtration Unit for Fuel Transfer
The Filtrec FUHF50 Series Portable Diesel and Oil Filtration Unit is designed for the transfer and filtration of diesel fuel and oil, helping remove both solid contamination and water from the fluid.
Featuring a dual filtration system, the FUHF50 uses a particle removal filter and a water absorbent filter to help keep diesel and oil clean, efficient and suitable for demanding fuel and hydraulic applications.
With a 50 l/min flow rate, 220 V supply, integrated pressure gauge, filter clogging indicators and a portable wheeled frame, this unit provides a practical filtration solution for workshops, service areas and machine refuelling applications.
Technical Data
| Specification | Details |
|---|---|
| Product Series | FILTREC FUHF50 Series |
| Product Type | Portable transfer and filtration unit for diesel and oil |
| Flow Rate | 50 l/min |
| Operating Temperature | -10°C to +50°C |
| Voltage | 220 V |
| Frequency | 50 - 60 Hz |
| Power Consumption | 1.6 kW |
| Pump Type | Vane pump with internal pressure relief valve at 6 bar |

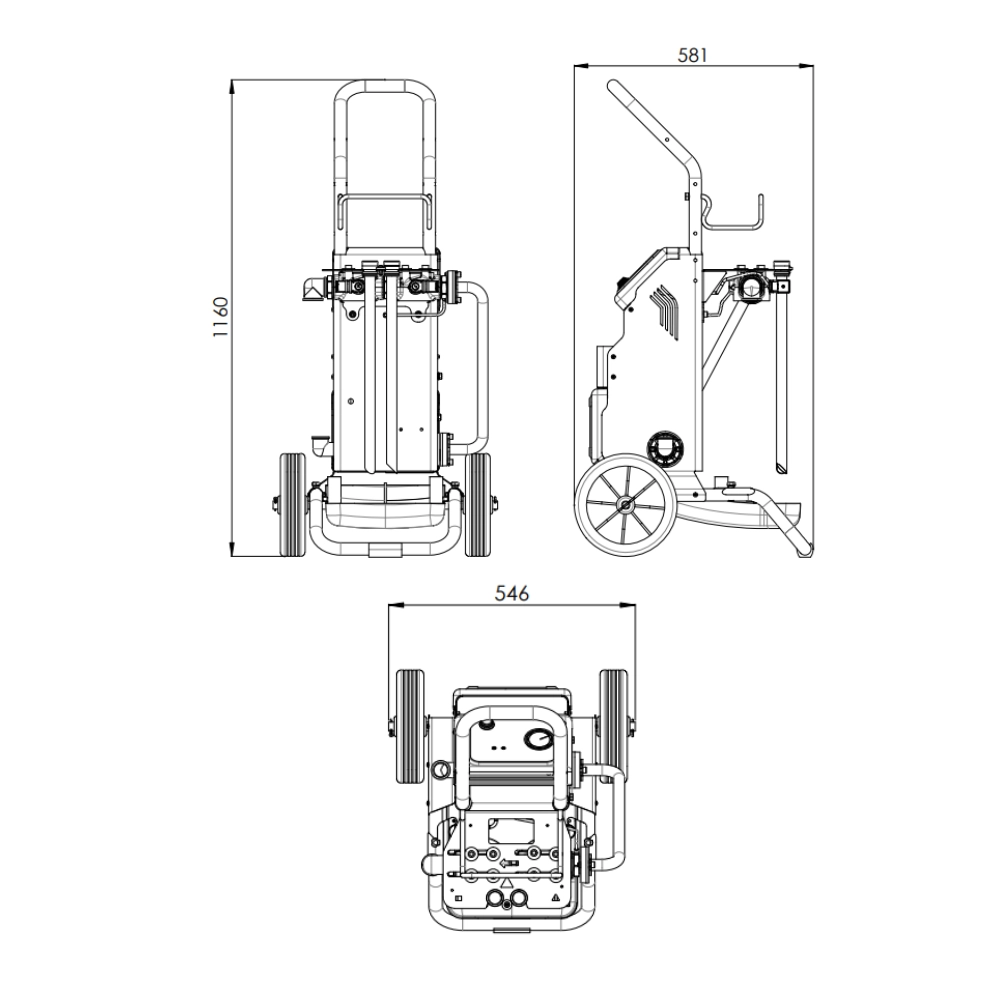

| Dimensions | 581mm x 546mm x 1160mm |
| Base Frame | Painted frame |
Fluid Compatibility
| Fluid Type | Compatibility / Viscosity |
|---|---|
| Diesel | 2 to 5.35 cSt | EN590 | ASTM D975 |
| Oil | 4.5 to 300 cSt, with 500 cSt suitable for short-term use |
| Hydraulic Fluids | HH, HL, HM, HV, HETG and HEES according to ISO 6743/4 |
| Biodiesel | B0 to B100 according to EN14214 |
| Fuel Oil | EN51603-1 |
Filtration Performance
The FUHF50 uses two different filters to help protect diesel and oil from contamination:
- Filter #1: Particle removal filter for solid contaminants
- Filter #2: Water absorbent filter for water removal
- High-efficiency glass fibre media options available
- Water absorbent media options available for removing water from fuel
- Designed to help prevent issues caused by solid contamination and water in diesel fuel
Key Features
- Portable transfer and filtration unit for diesel and oil
- Dual filtration system removes solid particles and water contamination
- 50 l/min flow rate for efficient transfer and filtration
- 220 V electric supply with 50 - 60 Hz frequency
- 1.6 kW motor with vane pump and 6 bar pressure relief valve
- Integrated pressure gauge for system monitoring
- Filter clogging indicators for particle and water absorbent filters

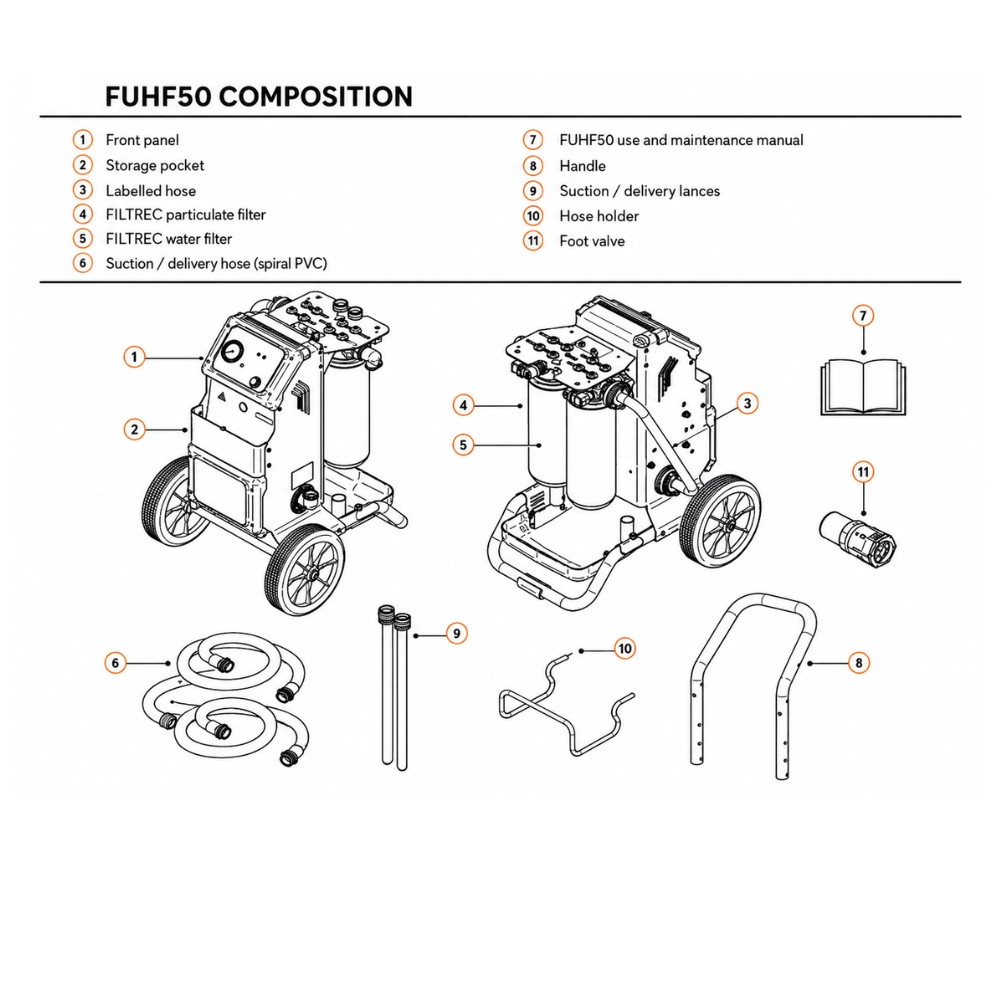

- Supplied with suction and delivery pipes, lances and foot valve with suction strainer
- Painted support frame with removable drip tray
- Suitable for diesel, oil, biodiesel and compatible hydraulic fluids
Ordering Information
| Code Element | Description |
|---|---|
| FUHF | Filter unit series |
| 50 | Model with 50 l/min flow rate |
| M | Single phase electric motor, 230 V, 50 - 60 Hz, 1.6 kW |
| G | Vane pump suitable for oil and diesel fuel |
| 2 | 2 x A522.../AB2 series filter elements |
| V | FKM seal |
| S | Standard version |
| 0 | Standard option package with indicators, frame, foot valve, hoses, lances, plug and control panel |
Accessories & Spare Parts
| Part Number | Description |
|---|---|
| 06.022.00003 | Nozzle |
| 06.022.00001 | Replacement vane kit for vane pump |
| 06.022.00002 | Foot valve, manual ON/OFF, with suction strainer |
Maintenance note: The filter element should be replaced when the clogging indicator for the particle removal filter or water absorbent filter shows a clog, when both indicators show a clog, or when the pressure gauge reaches 5 bar.
Suitable Applications
- Diesel fuel transfer and filtration
- Oil transfer and filtration

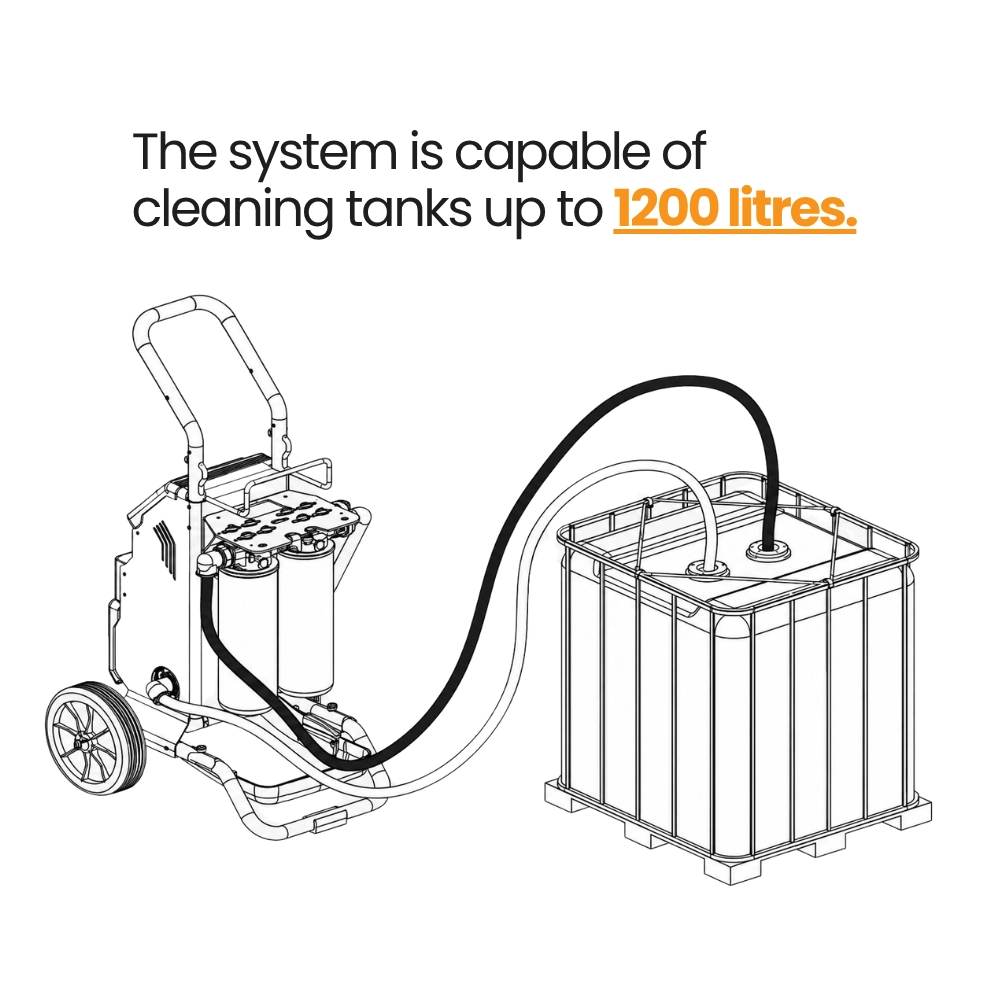

- Fuel tank filling applications
- Hydraulic oil cleanliness support
- Workshop and service environments
- Maintenance operations for machinery and equipment
- Applications where removal of solid contamination and water is required
Note: For use with fluids not listed in the technical information, please check compatibility before ordering. The unit should be operated only by authorised users who have read and understood the relevant instruction and maintenance manual.
