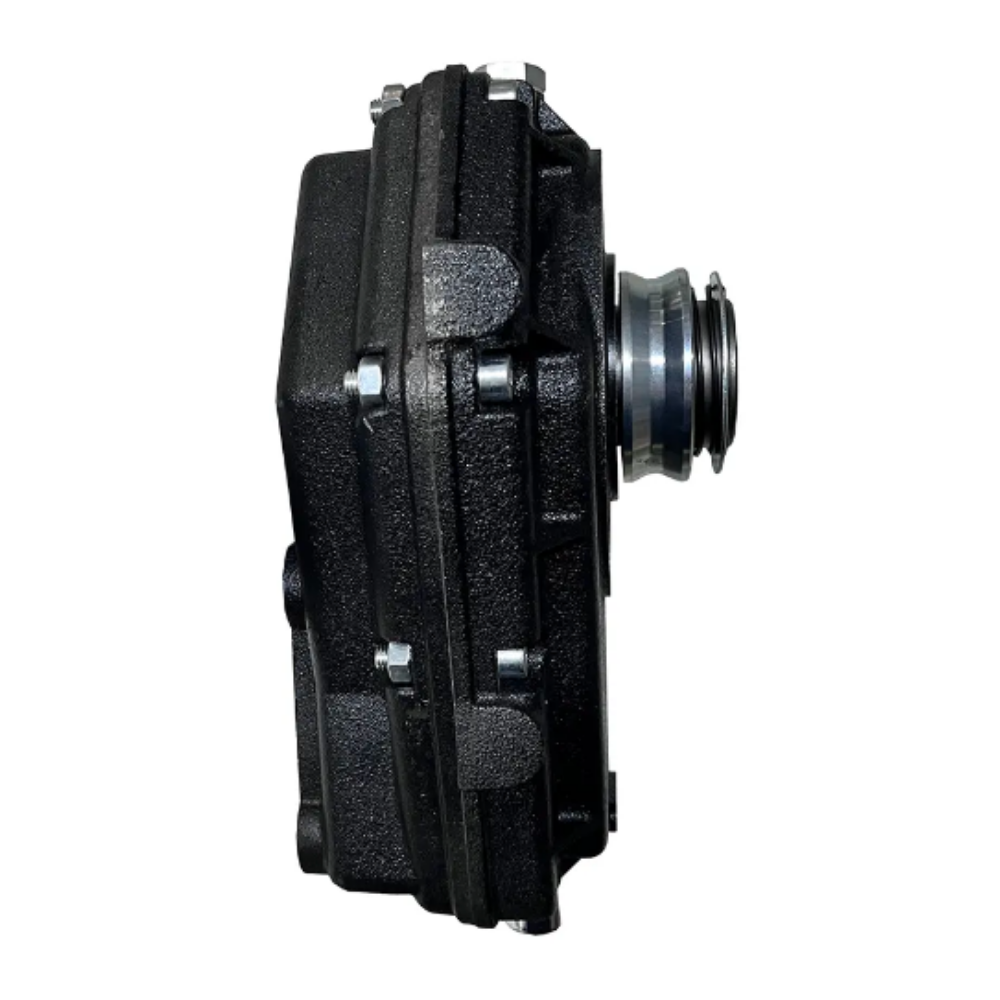

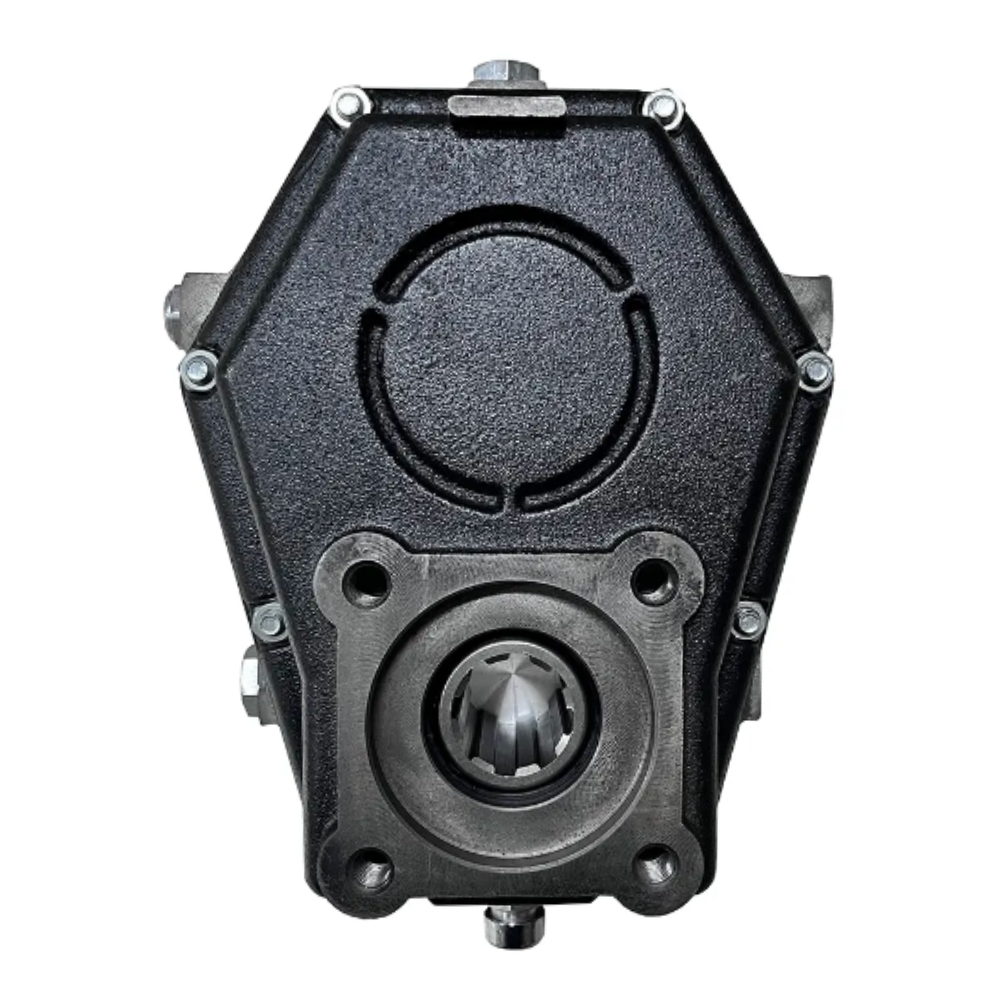

Hydraulic Cast Iron PTO Gearbox, 37Kw, Female Shaft, Ratio 1:3.5, Group 2 & 3 Pumps, Series 7004
KMT7004-5A
Product Features:
Hydraulic Cast Iron PTO Gearbox – Group 2 & Group 3, Female Shaft, 1:3.5 Ratio, 37KW – Direct Replacement for Borelli 70015-5
The KMT7004 is a compact, heavy-duty PTO gearbox from the KMT700 Series, engineered to deliver reliable speed multiplication in agricultural and industrial applications. Built with a robust cast-iron housing, it is designed to withstand continuous operation and high torque demands.

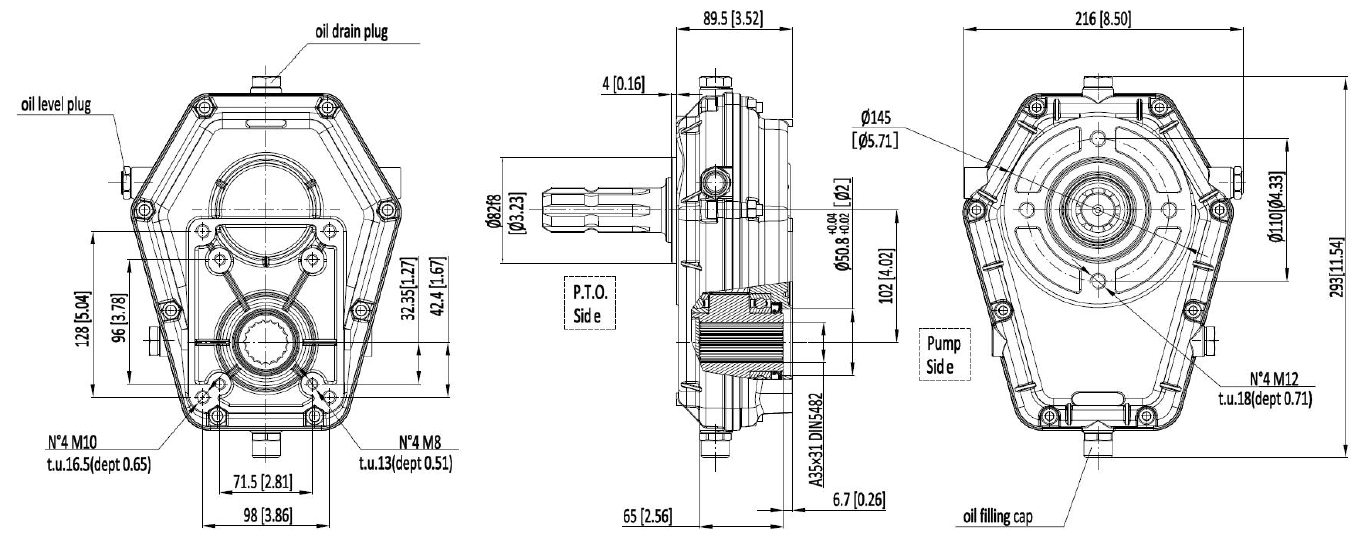

KMT700 DIMENSIONS
FEMALE 1" 3/8" DIN 9611 SHAFT
| Input Torque (Nm) | Output Torque (Nm) | Input Speed (r/min) | Transmission Ratio | Output Speed (r/min) | Power (kW) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 660 | 440 | 540 | 1.5 | 810 | 37 | 16 |
| 660 | 330 | 540 | 2 | 1080 | 37 | 16 |
| 660 | 264 | 540 | 2.5 | 1350 | 37 | 16 |
| 660 | 220 | 540 | 3 | 1620 | 37 | 16 |
| 660 | 180 | 540 | 3.5 | 1836 | 37 | 16 |
| 660 | 166 | 540 | 3.8 | 2052 | 37 | 16 |
- Construction: Durable cast-iron body for long-lasting performance under load.
- P.T.O. Shaft Configuration: Female 1 3/8” DIN 9611 input/output, making it highly compatible with standard equipment.
- Transmission Ratios: Available in ratios from 1:1.5 up to 1:3.8, providing flexibility for different speed and torque requirements.
- Performance: Handles up to 660 Nm input torque, delivering output torque options from 440 Nm to 166 Nm, depending on the ratio.
- Power & Weight: Rated for 37 kW of power with a compact weight of 16 kg, offering excellent power-to-weight efficiency.
- Mounting Flexibility: Can be installed in four positions, allowing easy adaptation to different setups.
- Serviceability: Designed with standardised components such as bearings, gears, and seals, ensuring easy maintenance and part replacement.
