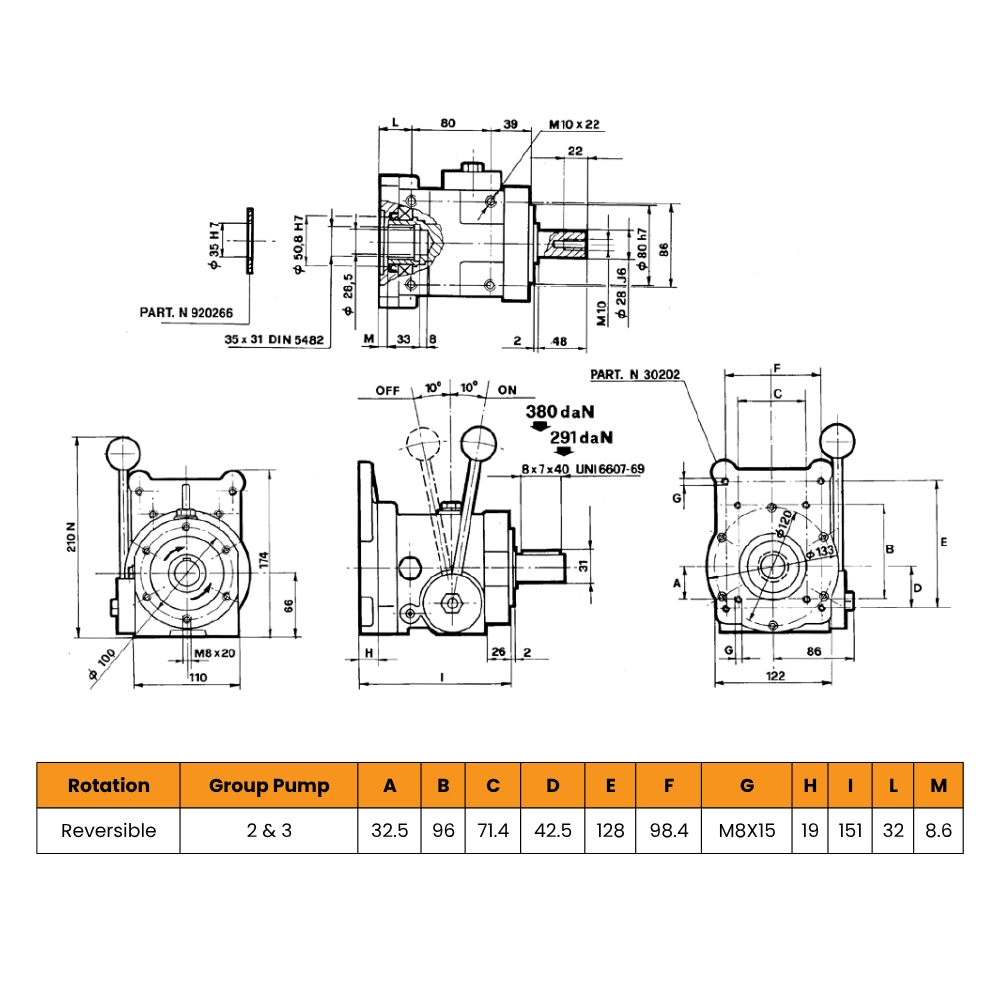

40kW Reversible Mechanical Clutch for Group 2 & 3 Pumps
26-30300
Reversible 40 kW front-tooth mechanical clutch for Group 2 and 3 hydraulic pumps, rated to 185 Nm nominal torque, 2700 rpm maximum speed and 1,600 N (160 daN) axial load.
Product Features:
Customers who bought this product also bought these
Borelli 30300 Bidirectional Front-Tooth Pump Coupling
The Borelli 30300 Bidirectional Front-Tooth Pump Coupling is designed for Group 2 and Group 3 hydraulic pumps. Manufacturer performance data states a nominal torque of 185 Nm, a maximum speed of 2700 rpm, maximum power output of 40 kW and an axial load rating of 1,600 N (160 daN).
Its bidirectional design supports clockwise and anticlockwise pump drive arrangements. The front-tooth mechanical engagement is intended for hydraulic pump drive systems used in mobile, agricultural, marine and general industrial equipment.
Rotation options: This mechanical clutch is reversible. Dedicated anticlockwise and clockwise versions are also available upon request.
| Specification | Details |
|---|---|
| Manufacturer code | 30300 |
| Product type | Reversible front-tooth mechanical pump coupling |
| Pump compatibility | Group 2 and Group 3 hydraulic pumps |
| Direction of rotation | Reversible / bidirectional |
| Nominal torque | 185 Nm |
| Maximum speed | 2700 rpm |
| Maximum power output | 40 kW |
| Axial load | 1,600 N (160 daN) |
| Lubrication | SAE 90 oil |
| Working temperature | -10°C to +80°C |
Operating notes
Engage and disengage the hydraulic pump with the directional valve in the exhaust or unloaded position.
The general engagement and disengagement speed must not exceed 1800 rpm.
For reversible operation, the maximum engagement and disengagement speed is 1000 rpm.
Use SAE 90 oil and change the oil every 12 months.
Mechanical performance
| Nominal torque | Maximum speed | Maximum power output | Axial load |
|---|---|---|---|
| 185 Nm | 2700 rpm | 40 kW | 1,600 N (160 daN) |
Installation guidance
Check shaft and coupling alignment before operation and ensure the hydraulic pump is unloaded during engagement or disengagement.
Do not exceed the stated torque, speed, power or axial load ratings. Confirm flange and shaft compatibility before installation.
