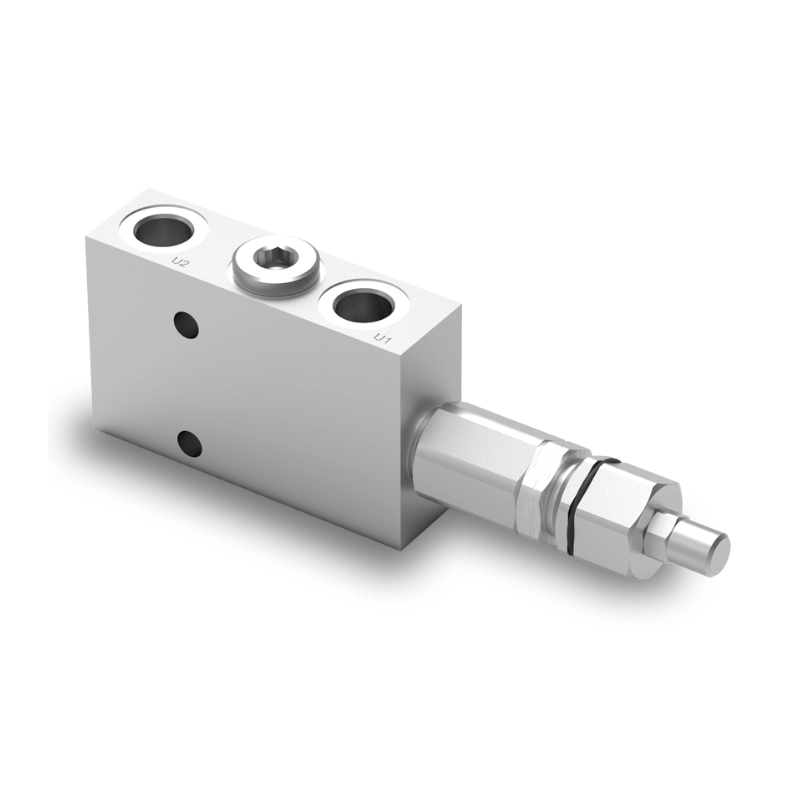

Walvoil VOSL/CC Single Counterbalance Valve – 3/4" BSP, 120 L/min, 350 Bar, Pilot Ratio 1:7
1525041102
Product Features:
Customers who bought this product also bought these
Walvoil VOSL/CC Single Counterbalance Valve – 3/4" BSP, 120 L/min, 350 Bar, Pilot Ratio 1:7
Walvoil VOSL/SC/CC 34/TR.S.p7.PG single counterbalance valve is a high-performance solution designed for load control, stability, and safe hydraulic operation in demanding mobile and industrial systems. It is used to control overrunning loads, prevent uncontrolled movement, and ensure smooth and controlled actuator operation.
Built with a robust design and available in steel construction for high pressure applications, this valve is suitable for heavy-duty hydraulic environments. With a pilot ratio of 1:7, it provides precise and responsive load control, helping to improve safety and system efficiency in load-holding circuits.
With a nominal flow rate of 120 l/min and a maximum operating pressure of 350 bar (steel body), the VOSL/SC/CC 34 is ideal for high-flow, high-pressure systems. Its design ensures reliable performance while maintaining low internal leakage and consistent operation across a wide range of applications.
Technical Specifications
| Specification | Details |
|---|---|
| Valve type | Single counterbalance valve |
| Model | VOSL/SC/CC 34/TR.S.p7.PG |
| Body material | Steel (350 bar) / Aluminium (210 bar) |
| Port size | 3/4" BSP |
| Nominal flow rate | 120 l/min |
| Maximum operating pressure | 350 bar (steel body) |
| Pilot ratio | 1:7 |
| Oil leakage | 0.25 cm³/min at 210 bar, 80% of pressure setting |
| Fluid | Mineral based oil |
| Viscosity range | 10 to 200 cSt |
| Fluid temperature | -20°C to 80°C (with NBR seals) |
| Environmental temperature | -40°C to 100°C |
Common Applications
The Walvoil VOSL/SC/CC 34 single counterbalance valve is commonly used in hydraulic systems where load holding, motion control, and safety are critical. Typical applications include:
- Hydraulic cylinders – controlling lowering speed and preventing uncontrolled movement
- Mobile machinery – improving safety and stability in lifting and load-handling operations
- Construction equipment – managing heavy loads in high-pressure systems
- Agricultural machinery – stabilising hydraulic functions on booms and attachments
- Industrial hydraulic systems – providing reliable load control and pressure management
