Indemar Joystick Push Button, 1 Button, M10 x 1.5, 500mm Cable
IND3546
Product Features:
Customers who bought this product also bought these
Indemar Joystick Push Button, 1 Button, M10 x 1.5, 500mm Cable
Indemar 3546 Knob with 1 Button and Special Hub is a compact and durable handle-mounted electrical control solution designed for use on mobile and industrial machinery. Featuring a single push-button control built into a cylindrical ergonomic handle, it allows operators to activate electrical functions directly from the control lever with simple, responsive operation.
The unit is fitted with an M10 x 1.5 threaded connection with a 34.00mm thread depth, making it suitable for secure installation on compatible joystick levers and machine control assemblies. It is supplied with a 500mm cable (+20 / 0mm tolerance), 0.5mm² black and blue wires with tinned ends, and a multipolar cable for dependable connection in demanding environments.

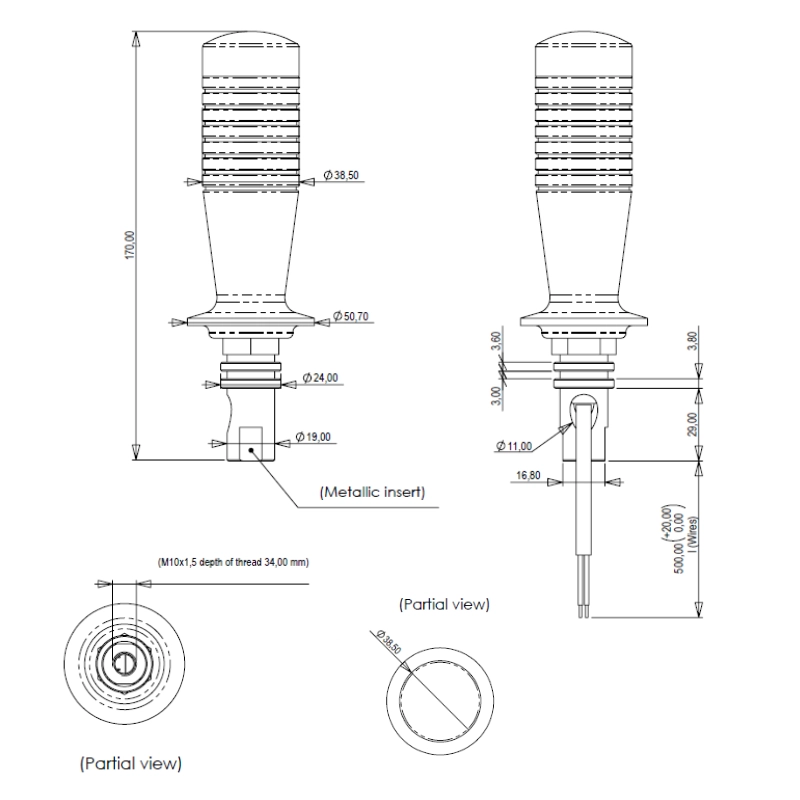

Technical Specifications
| Specification | Details |
|---|---|
| Product code | 3546 |
| Description | Knob with 1 button and special hub |
| Thread size | M10 x 1.5 |
| Thread depth | 34.00mm |
| Overall height | 170.00mm |
| Max grip diameter | 38.50mm |
| Flange diameter | 50.70mm |
| Insert diameters shown | 24.00mm, 19.00mm, 16.80mm and 11.00mm |
| Cable length | 500mm (+20 / 0mm) |
| Wire specification | Black / blue wires, 0.5mm², with tinned ends |
| Cable type | Multipolar cable |
Microswitch Specifications
| Type | Rated Voltage | Resistive Load (A) | Lamp Load (A) | Inductive Load (A) | Motor Load (A) | Inrush Current |
|---|---|---|---|---|---|---|
| 16A | 250 VAC | 16 | 2 | 10 | 3 | 40 A max. |
| 16A | 8 VDC | 16 | 4 | 10 | 6 | |
| 16A | 30 VDC | 10 | 4 | 10 | 4 | |
| 16A | 125 VDC | 0.6 | 0.1 | 0.6 | 0.1 | |
| 16A | 250 VDC | 0.3 | 0.05 | 0.3 | 0.05 |

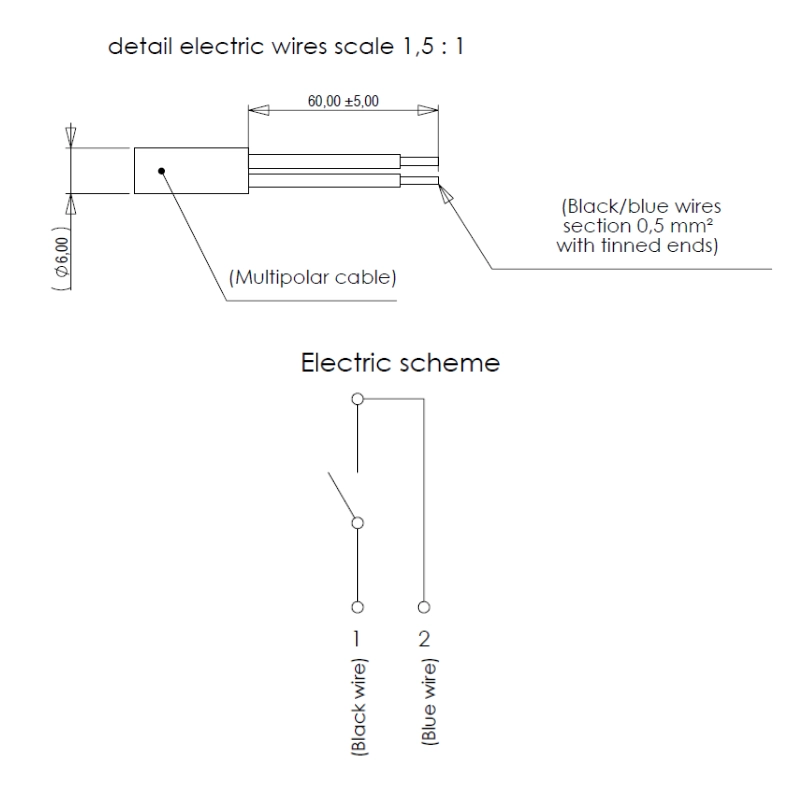

Wiring Information
| Wire Number | Wire Colour |
|---|---|
| 1 | Black |
| 2 | Blue |
Common Applications
The Indemar 3546 push-button knob is commonly used where a simple handle-mounted electrical signal is needed, including:
- Agricultural machinery – activating auxiliary electrical or hydraulic functions
- Construction and earthmoving equipment – simple on-handle machine control
- Hydraulic systems – switching solenoid valves and control circuits
- Material handling equipment – improving operator control from the lever
- Industrial machinery – dependable push-button actuation in compact installations
