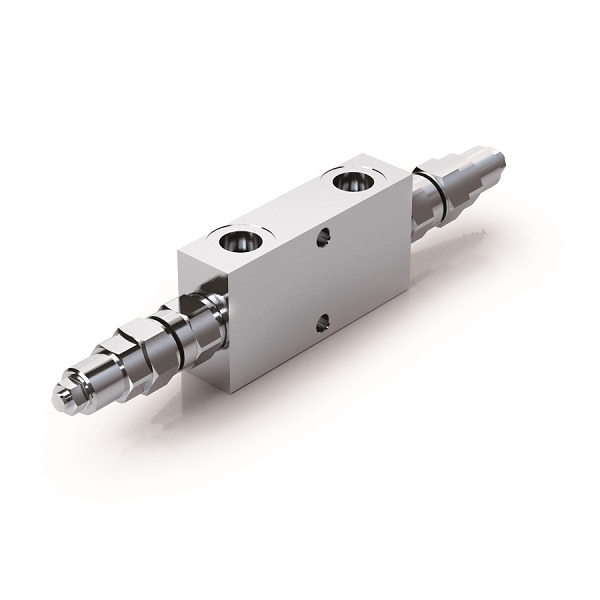

Hydraulic Double Overcentre Valve For Closed Centre VBCD 3/8" DE CC
V0441
Hydraulic Double Overcentre Valve For Closed Centre, VBCD 3/8" DE CC RP, Pilot Ratio 1:3,1, Max Flow 35L/min, Max Pressure 350 Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Double Overcentre Valve For Closed Centre VBCD 3/8" DE CC

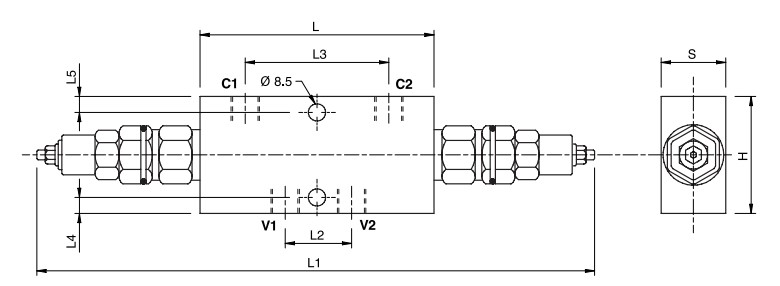

| CODE | TYPE | PILOT RATIO | MAX FLOW Lt/min |
MAX PRESSURE Bar |
V1-V2 C1-C2 |
L mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
H mm |
S mm |
WEIGHT Kg |
| V0441 | VBCD 3/8” DE CC | 1:3,1 | 35 | 350 | G 3/8" | 120 | 288 | 34 | 73 | 8 | 60 | 30 | 1.902 |
| V0441/RP18 | VBCD 3/8” DE CC RP 1:8 | 1:8 | 35 | 350 | G 3/8" | 120 | 288 | 34 | 73 | 8 | 60 | 30 | 1.902 |
| V0442 | VBCD 1/2“ DE CC | 1:3,1 | 50 | 350 | G 1/2" | 121 | 288 | 36 | 73 | 8 | 60 | 30 | 1.854 |
| V0442/RP18 | VBCD 1/2” DE CC RP 1:8 | 1:8 | 50 | 350 | G 1/2" | 120 | 288 | 36 | 73 | 8 | 60 | 30 | 1.854 |
| V0443 | VBCD 3/4“ DE CC | 1:5,5 | 105 | 350 | G 3/4" | 152 | 320 | 58 | 106 | 21 | 80 | 35 | 3.1 |
| V0443/RP18 | VBCD 3/4” DE CC RP 1:8 | 1:8 | 105 | 350 | G 3/4" | 152 | 320 | 58 | 106 | 21 | 80 | 35 | 3.1 |
USE AND OPERATION:
These valves are used to control the actuator movements and block it in both directions. In order to have the descent of a load under control and avoid the load's weight being carried away the valve will prevent any cavitation of the actuator. This valve is ideal when normal over centre valves doesn't work properly as it's not sensitive to back pressure. They also allow the system pressure to move multiple actuators in series.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: negligible leakage.
Standard setting: 320 Bar.
Valve setting must be at least 1.3 times more than load pressure in order to enable the valve to close even when subjected to the maximum load pressure.
CONNECTIONS:

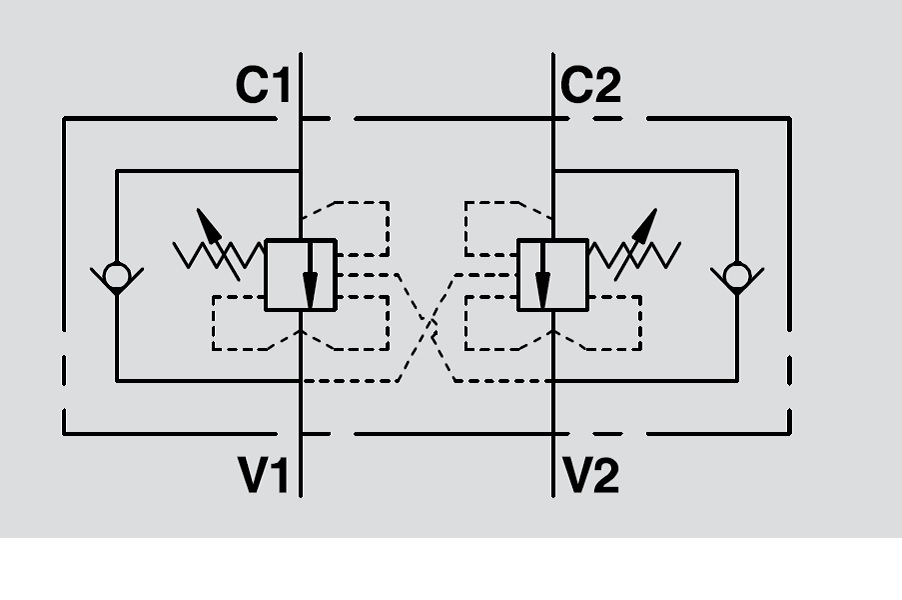

Connect V1 and V2 to the supply, C1 and C2 to the actuator to be controlled.
ON REQUEST
- other pressure settings are available
- sealing cap (CODE/P) and arrangement for sealing cap (CODE/PP)
Oil temperature 50° C – Oil viscosity: 30 cST
