Hydraulic 2 Way Steel Divider, DFL 25-40 L/min
V1025
Looking for a better price? Click here to see this product in our Sale section.
Product Features:
Customers who bought this product also bought these
High-Pressure Steel Body Hydraulic Flow Divider – 2-Way, 25-40 L/min
This high-pressure 2-way steel flow divider from Oleodinamica Marchesini is designed for hydraulic systems where two identical actuators—operating independently and not mechanically linked—must move in perfect synchrony. Supplied by a single hydraulic pump and controlled by one valve, it ensures equal flow distribution during both extension and retraction, making it ideal for dual-cylinder operations in precision hydraulic applications.
VALVE MODEL COMPARISON – 2 WAY HYDRAULIC STEEL FLOW DIVIDER
| CODE | TYPE | MIN FLOW Lt. / min | MAX FLOW Lt. / min | WORKING PRESSURE Bar | PEAK PRESSURE Bar | P | A-B | L mm | L1 mm | L2 mm | H mm | H1 mm | H2 mm | S mm | WEIGHT Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V1020 | DFL 1 - 3 | 1 | 3 | 250 | 300 | G 3/8” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.96 |
| V1021 | DFL 3 - 6 | 3 | 6 | 250 | 300 | G 3/8” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.96 |
| V1022 | DFL 6 - 10 | 6 | 10 | 250 | 300 | G 3/8” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.956 |
| V1023 | DFL 10 - 20 | 10 | 20 | 250 | 300 | G 3/8” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.964 |
| V1024 | DFL 20 - 32 | 20 | 32 | 250 | 300 | G 3/8” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.97 |
| V1025 | DFL 25 - 40 | 25 | 40 | 250 | 300 | G 1/2” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.936 |
| V1026 | DFL 40 - 60 | 40 | 60 | 250 | 300 | G 1/2” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.938 |
| V1027 | DFL 60 - 80 | 60 | 80 | 250 | 300 | G 1/2” | G 3/8” | 102 | 53 | 40 | 70 | 45 | 13.5 | 40 | 1.94 |
| V1028 | DFL 80 - 100 | 80 | 100 | 250 | 300 | G 3/4” | G 1/2” | 160 | 76 | 140 | 80 | / | 10 | 50 | 4.522 |
| V1029 | DFL 100 - 120 | 100 | 120 | 250 | 300 | G 1” | G 3/4” | 160 | 76 | 140 | 80 | / | 10 | 50 | 4.38 |
| V1030 | DFL 120 - 150 | 120 | 150 | 250 | 300 | G 1” | G 3/4” | 160 | 76 | 140 | 80 | / | 10 | 50 | 4.38 |
*Flow capacity values refer to input P
USE AND OPERATION:
These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single valve, must move simultaneously both in extension and retraction.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard and Teflon.
Load holding: matched diameters, minimal leakage.
Cylinder stroke error tolerance of +3% of maximum flow. Any synchronisation errors are compensated for at the end of stroke.

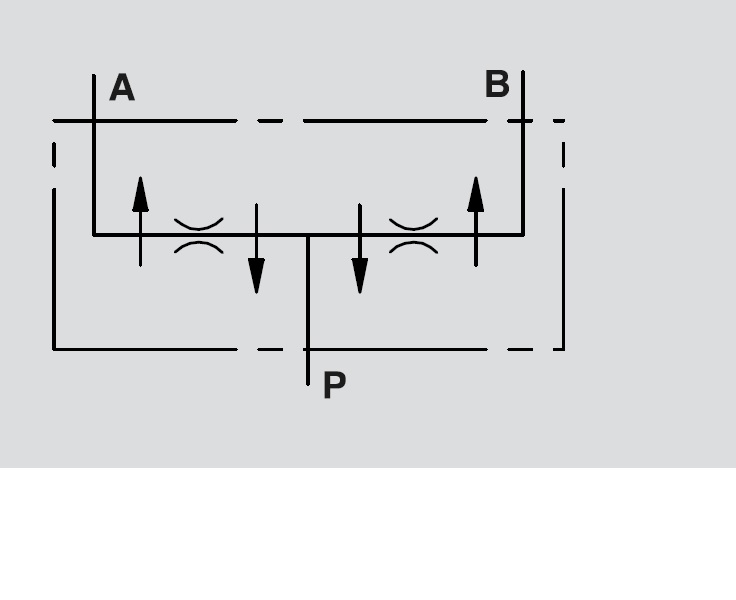

CONNECTIONS:
Connect P to supply flow and A and B to the actuators.
NEED A SOLUTION THAT CAN HANDLE HIGHER FLOW RATES IN DEMANDING, HIGH-LOAD SYSTEMS?
Explore our range of geared flow dividers designed for precision and performance.
