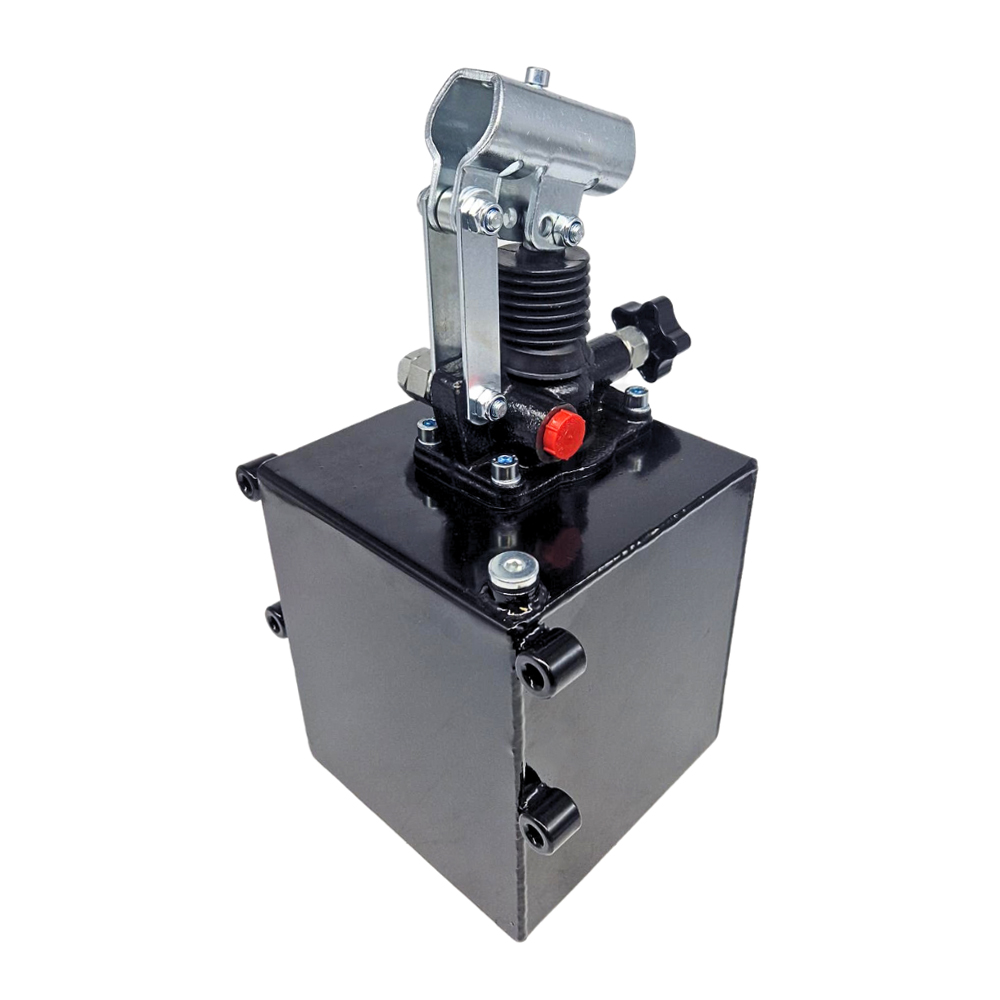

Flowfit Single Acting Hydraulic 12cc Hand Pump Assembly, With 5 Litre Tank, Relief Valve and Handlever
FFHPSARV125L
Product Features:
Customers who bought this product also bought these
Manual hydraulic hand pump kit 12cc single-acting with 5l oil reservoir lever handle
Single Acting Hydraulic 12cc Hand Pump Assembly, With 5 Litre Tank, Relief Valve and Handlever is a complete manual hydraulic hand pump assembly for single-acting cylinders/rams — supplied as an all-in-one unit with hand pump, 5 litre oil reservoir tank and operating lever.
What’s included
- Complete hand pump + tank + lever assembly
- Pump displacement: 12cc (model specific)
- System type: single-acting operation
- Reservoir capacity: 5 litre tank
- Working pressure: up to 350 bar (model dependent)
- Recommended filtration: 15 Micron or better
- Recommended oil: Mineral hydraulic oil to ISO 6743/4 and DIN 51524
- Fluid temperature range: -20°C to +80°C
- Ambient temperature range: -20°C to +50°C
Applications
Typical uses:
- Lifting & positioning
- Clamping & pressing
- Mobile / remote / emergency hydraulic power

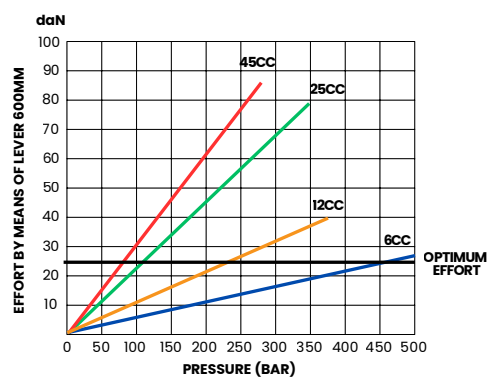

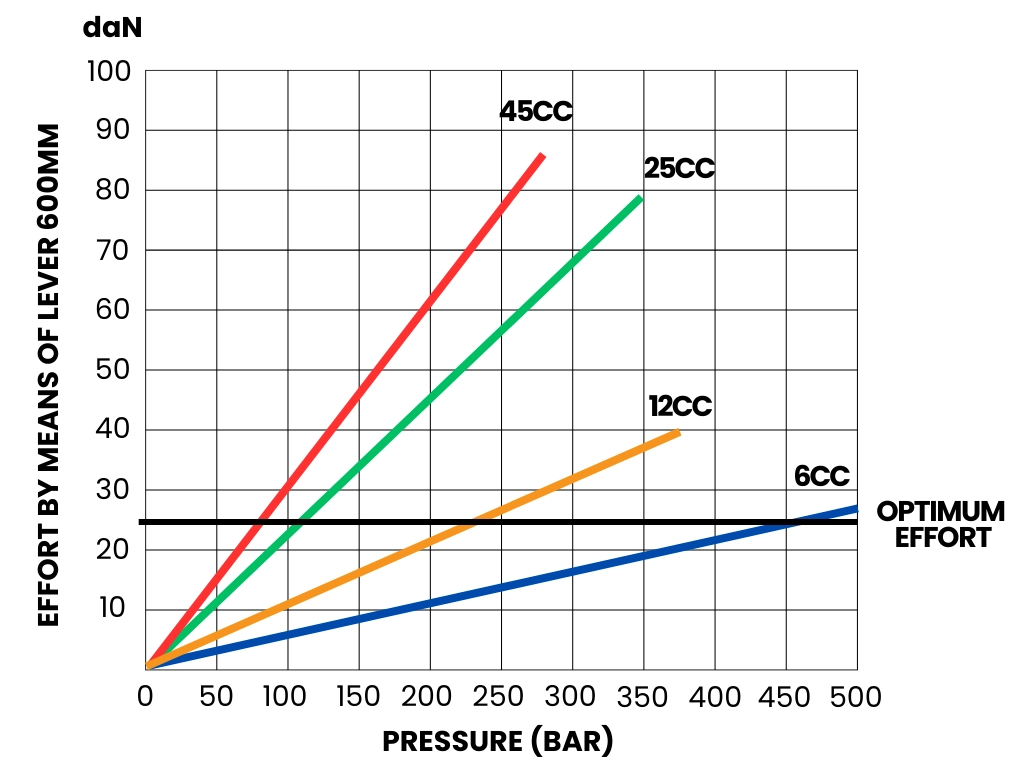

Hand Pump Effort vs Pressure (600mm Lever)
The chart compares the manual force required on a 600mm operating lever as hydraulic pressure increases, across different pump displacements (6cc, 12cc, 25cc and 45cc). As pressure rises, the lever effort rises too — and higher displacement pumps require more effort at the same pressure. Lower displacement pumps are easier to operate at higher pressures, but deliver less oil per stroke (more strokes required).
Which cc is best?
- 6cc – Best for high-pressure work where operator comfort matters most (lowest effort, slowest output).
- 12cc – A strong all-round choice for higher pressure applications with moderate speed.
- 25cc – Better for faster cylinder movement at lower to mid pressures, with higher effort as pressure climbs.
- 45cc – Best when you want maximum flow/fast extension at lower pressures; can become physically demanding at higher pressures.
