Hose Crimping Machine with Double-Stage Hand Pump, 18mm Die Opening
FFH25
Product Features:
Customers who bought this product also bought these
Hose Crimping Machine with Double-Stage Hand Pump, 18mm Die Opening
This listing includes a 1" die set only. If you require a different die size, please view our individual die listings.
*90° elbow limitation: Maximum 1/2" (DN12). Not suitable for crimping 3/4" or 1" 90° elbows.

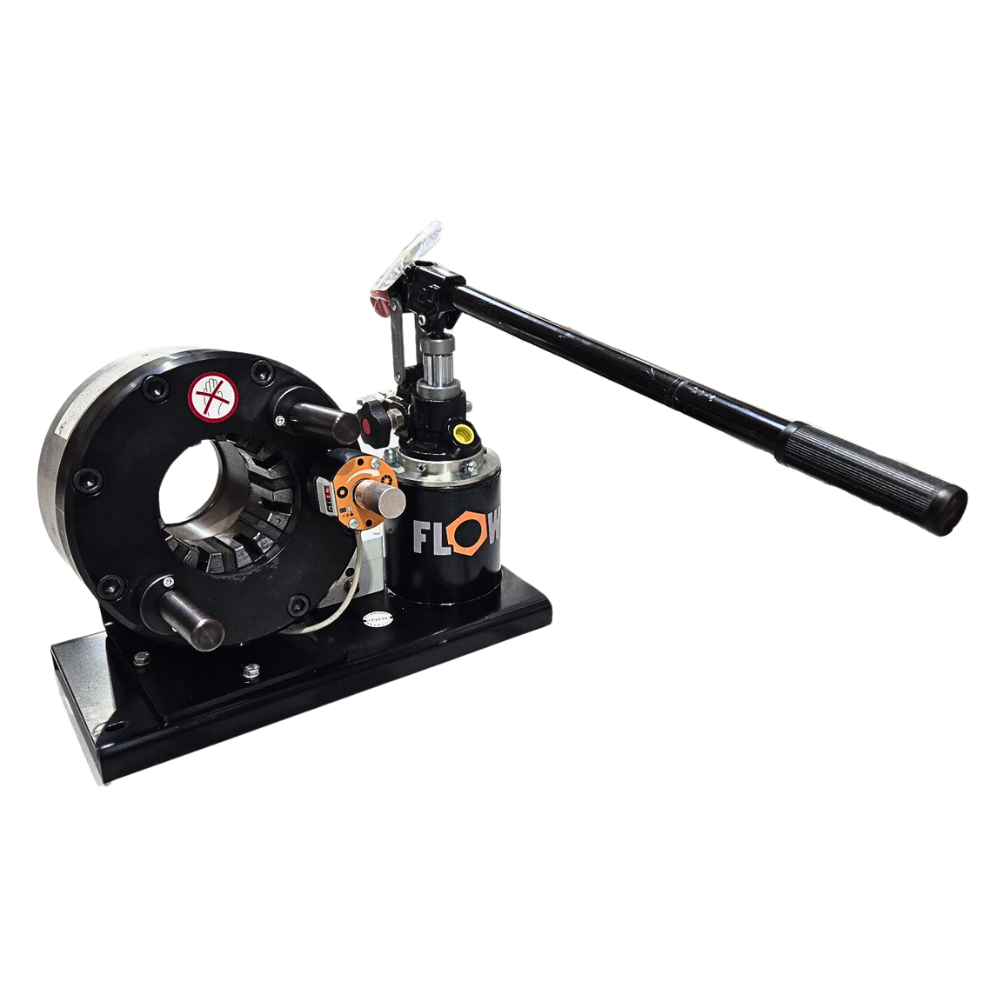

The FFH25 Manual Hose Crimping Machine (supplier model NKH-25) is a compact, workshop and field-ready crimper designed for reliable hydraulic hose assembly without the need for mains power. Operated using a double-stage hand pump, it delivers consistent, repeatable crimps with a high-precision vernier and crimp completion signalling.
Suitable for service hose assembly up to 1 1/2" 2-SN (DN38, -24), and up to 1 1/4" 4-SP (DN32, -20). Ideal for maintenance teams, workshops, and mobile repair work.
Key Features
- Manual operation – no power supply required
- Double-stage hand pump for fast approach and efficient crimp pressure
- High crimp force – 135 ton radial press force (at 340 bar)
- Precision vernier with sound & light crimp signal for repeatability
What’s Included
- Flowfit FFH25 Manual Hose Crimping Machine
- User manual / operating guidance
- Dies not included (sold separately)
| Technical specifications | |||
|---|---|---|---|
| 2-SN | 1 1/2" (DN38, -24) | 4-SP | 1 1/4" (DN32, -20) |
| 6-SP / Interlock | 1" (DN25, -16) | Radial crimp force | 135 tons (340 bar) |
| Hand pump | Double-stage, max. 340 bar 1st stage = Fast approach (25 cm3/stroke, max. 50 bar) 2nd stage = Crimp approach (5 cm3/stroke, max. 320 bar) |
||
| Die opening | Ø Die + 18 mm | Opening without dies | 90 mm |
| Dimensions (mm) | 500 × 300 × 550 | Net weight | 40 kg |
Recommended Die Numbers for Flowfit EN853 2SN Hose
When crimping Flowfit 2-wire EN 853 2SN hose , the following die numbers are typically recommended as a starting point:
| Die Number | Hose Diameter | Crimping |
|---|---|---|
| 18 | 1/4" | 18.7 mm |
| 18 | 5/16" | 19.6 mm |
| 21 | 3/8" | 21.5 mm |
| 24 | 1/2" | 24.7 mm |
| 27 | 5/8" | 28.8 mm |
| 30 | 3/4" | 32.2 mm |
| 39 | 1" | 41.6 mm |
Hose Compatibility
- 2-wire braid (EN 853 1SN / 2SN): up to 1 1/2" (DN38, -24)
- 4-wire spiral (4SP): up to 1 1/4" (DN32, -20)
- 6-wire spiral / Interlock: up to 1" (DN25, -16)
Hose examples: Tractor, Harvester, Lyteflex, Pilot, Equator, Rockmaster, Shieldmaster, Astro, Goldenspir/12 & 4SP, Rockmaster/12 & 4SP.
Need a Different Die Size?
If you’re not crimping 1" hose, you may need a different die set. Browse our individual die listings, or choose the complete die kit for the widest compatibility. If you’re unsure what you need, contact us and we’ll help match your hose, fittings and application.
