Filtrec R120C25B Filter Element
R120C25B
Filtrec
The Filtrec R120C25B Filter Element is our Flowfit Approved filter replacement. The Filter Element is designed to provide the same quality and performance, ensuring superior filtration performance and long-lasting durability.
Over its lifespan, the R120C25B provides reliable and consistent performance, even in extreme operating environments. You are getting a reliable and exceptional replacement filter that will keep your system operating safely and smoothly.
Photos are for representation only.Product Features:
Filtrec R120C25B Filter Element

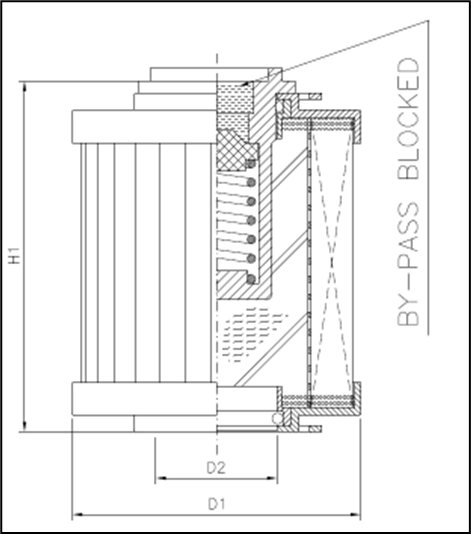

| OD (D1) (MM) | ID (D2) (MM) | LENGTH 1 (H1) (MM) | LENGTH 2 (H2) (MM) | THREAD SIZE | MEDIA/MICRON RATING | COLLAPSE PRESSURE (BAR) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | BYPASS FITTED | BYPASS SETTING (BAR) | FLOW DIRECTION | SEALS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | 29.5 | 85 | 0 | 0 | C25 | 10 | 0 | 0 | YES | 1.7 | OUT-IN | NBR |
Technical Information
Tank Top mounting design return line with reusable or disposable element.
Max flow rate: 150l/min
Max working pressure: As per NFPA T 3.10.5.1 8Bar (116psi)
Test pressure: As per NFPA T 3.10.5.1: 12 Bar (174psi)
Burst pressure: As per NFPA T 3.10.5.1: 16Bar (232psi)
Connection Ports: BSP, NPT, SAE J514b
By-pass setting: Visual and electrical
Indicator: Differential visul and differential electrical visual, 5 Bar (72.5 psi)setting
Working temperature: -25C + 100C
Materials:
Cover: nylon
Head: aluminium
Bowl: nylon
Seal: Buna-N/ Viton
Fluids compatibility: ISO 2943: Filter assembly compatible with mineral oils and some synthetic or vegetable oils. With other fluid applications please contact Filtrec S.p.A
Filter Element
Filter media: Microglass fiber 3,6,10,25 um
Cellulose: 10,25 um
Wire mesh: 60? 125 um
Collapse pressure: as per ISO 2941: 10 Bar (145?psi)
THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITY OF 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERRING TO THE TECHNICAL INFORMATION.
Manufacturers code: R120C25B
| MANUFACTURER | STOCK CODE |
|---|---|
| AIRFIL | AFPO35325 |
| BOSCH | 9455251257 |
| DIAMOND | CR5030 |
| DIAMOND | CR6030 |
| DIGOMA | DGMH603 |
| DOMANGE | CFDR20P25 |
| DONALDSON | CR50.3 |
| DONALDSON | CR60.3 |
| DONALDSON | P171522 |
| DONALDSON | P171528 |
| FAI FILTRI | F6P25 |
| FBN | FXRA5M30 |
| FBN | FXRA5M30C |
| FILTER MART | 013297 |
| FILTER MART | 13355 |
| FILTRATION GROUP | 7686413 |
| FILTRATION GROUP | 7686538 |
| FILTRATION GROUP | 852367MIC25 |
| FILTRATION GROUP | 852372MIC25 |
| FISPA | LI3171 |
| FISPA | LI3420 |
| FISPA | LI3421 |
| FLEETGUARD | HF7552 |
| FLUID POWER EXPRESS | LH070074 |
| IKRON | HEK0220077ASSP025VMB17B |
| IKRON | HHC01240 |
| IKRON | HHC03561 |
| LHA | TIE16251 |
| MAIN FILTER | MF0062275 |
| MP FILTRI | F620 |
| MP FILTRI | F6P20A |
| MP FILTRI | MF1001P25NB |
| OMT | CR111C25R |
| OMT | CR65B |
| OMT | CR65BN |
| SCHROEDER | SBFMF10025B |
| SEPARATION TECHNOLOGIES | ST1795 |
| SF-FILTER | HY18215 |
| SF-FILTER | HY18422 |
| SOFIMA HYDRAULICS | 48152 |
| SOFIMA HYDRAULICS | 52751 |
| SOFIMA HYDRAULICS | 52752 |
| SOFIMA HYDRAULICS | CRE015CV1 |
| SOFIMA HYDRAULICS | RE15CV1 |
| SOFIMA HYDRAULICS | S7642HO |
| SOFIMA HYDRAULICS | TE19CV1 |
| STAUFF | RTE25D20BS1 |
| STEP FILTERS | HID5379 |
| UFI | 7604200 |
| UFI | ERA31NCD |
| WOODGATE | WGH9507 |
| ZINGA | 3E30325 |
