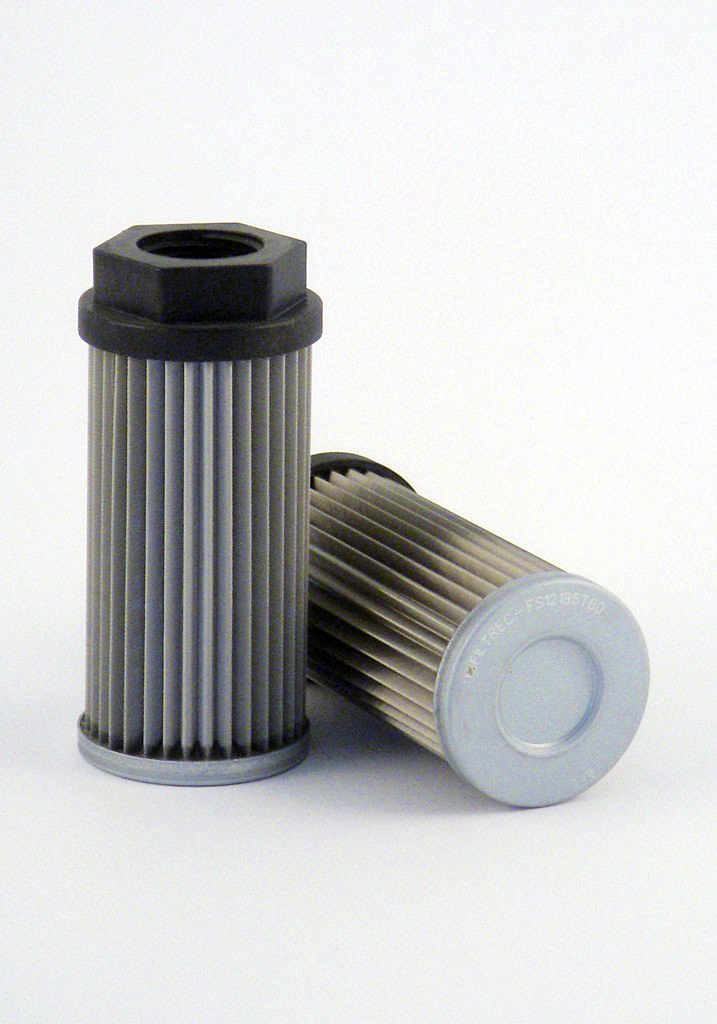

Filtrec FS121B5T125 Filter Element
FS121B5T125
Filtrec
The Filtrec FS121B5T125 Filter Element is our Flowfit Approved filter replacement. The Filter Element is designed to provide the same quality and performance, ensuring superior filtration performance and long-lasting durability.
Over its lifespan, the FS121B5T125 provides reliable and consistent performance, even in extreme operating environments. You are getting a reliable and exceptional replacement filter that will keep your system operating safely and smoothly.
Product Features:
Filtrec FS121B5T125 Filter Element
| OD (D1) (MM) | ID (D2) (MM) | LENGTH 1 (H1) (MM) | LENGTH 2 (H2) (MM) | THREAD SIZE | MEDIA/MICRON RATING | COLLAPSE PRESSURE (BAR) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | BYPASS FITTED | BYPASS SETTING (BAR) | FLOW DIRECTION | SEALS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 64 | 0 | 139 | 0 | G 1 | T125 | 1 | 0 | 0 | NO | 0 | OUT-IN | 0 |
FILTREC FS-1 SUCTION STRAINERS
Technical Information
Suction strainers for fluid reservoirs
Max flow rate: 500 l/min (132gpm)
Collapse pressure: 14,5 psi
Port Connection: BSP
By-pass: No by-pass or 0,25 bar (3.6 psi) setting
Working temperature: -25C + 100C
Materials: Head: nylon
Endcap: zinc plated carbon steel
By-pass: NBR
Filter media: Wire mesh 125 um (60 and 250 um on request)
Fluids compatibility: ISO 2943: Filter assembly compatible with mineral oils and some synthetic or vegetable oils.
THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITY OF CAST 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERING TO THE TECHNICAL INFORMATION.
Manufacturers code: FS121B5T125
| MANUFACTURER | STOCK CODE |
|---|---|
| AIRFIL | AFISE202 |
| ARC | ARC50L |
| ARGO-HYTOS | AS04001 |
| BALDWIN | PT9225 |
| BUCHER | 27990033 |
| CANFLO | CFSE10100 |
| CARQUEST | 84450 |
| DOMANGE | CRD121B5T125 |
| FAI FILTRI | 02542700 |
| FAI FILTRI | SUE43M125GS |
| FBN | HI204914 |
| FILPRO | ST100A |
| FILPRO | ST100ABB |
| FILTRATION GROUP | 72337087 |
| FLEETGUARD | HF6251 |
| FLUID POWER EXPRESS | LH070040 |
| GROOT | ST100AB |
| HYDAC | 01251193 |
| HYDAC | 02058638 |
| HYDAC | 0050S125W |
| HYDAC | SFE50G125A10 |
| IKRON | HHB07044 |
| LHA | LSE43 |
| MAIN FILTER | MF0062087 |
| MP FILTRI | STR0654SG1M90 |
| OMT | SF100GO |
| OMT | SF112DGO |
| OMT | SF64B100 |
| OMT | SF64B100GO |
| OMT | SP64B100GR125 |
| PARKER | H00714007 |
| PARKER | SS1B3A1AP |
| RACFIL | FA75 |
| RACFIL | FA75125 |
| RENAULT | X250903507 |
| ROQUET | 2FA50R125N |
| SF-FILTER | HY13276 |
| SF-FILTER | HY18565 |
| SOFIMA HYDRAULICS | MSZ2020MCVB10 |
| SOFIMA HYDRAULICS | MSZ2020MNB |
| STAUFF | SUS050B16P0125 |
| STEP FILTERS | HID19856 |
| STM | STM50112550 |
| UCC | UCSE1457 |
| UCC | UCSE75231210 |
| WOODGATE | WGSE1457 |
| WOODGATE | WGSE5102 |
