Dual Cross Line Relief Valve 30-180 bar For Danfoss OMP/OMR Motors, VAU 1/2" DE Standard

Product SKU:

V0500/180

as low as
£75.22
£90.27 incl. VAT
Quantity:
minus
minus
In Stock
12 Month Warrantly

Hydraulic Dual Cross Line Relief Valve 30-180 bar Flangable On Danfoss Motors OMP/OMR, VAU 1/2" DE Standard

Product Features:

Dual Cross Relief Valves
Max Flow 60L/min
1/2 BSP
Max Pressure 350Bar
Standard

BSP Dual Cross Hydraulic Line Relief Valves For Danfoss OMP/OMR Hydraulic Motors

USE AND OPERATION:

Made up by two cross port relief valves, these valves are used to limit the pressure in the both (DE) or one (SE) ports of a hydraulic motor to a certain setting. Direct flange mounting for Danfoss motors type OMP-OMR provides maximum safety, very low pressure drop and a robust installation.

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Leakage: Guided poppet - negligible leakage.

CONNECTIONS:

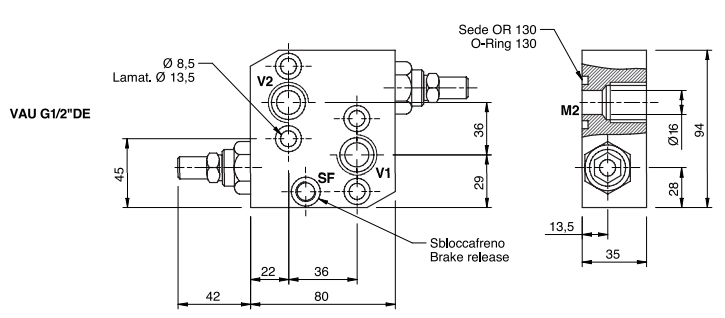

Flange M1 and M2 directly to the motor and connect ports V1 and V2 to the supply. The dotted line on the schematic relates to V0499/SF / V0500/SF, with brake release - SF.

ON REQUEST

  • different setting range (see the table)
  • other setting available (CODE/T000 please specify the desired setting)



 Oil temperature 50° C – Oil viscosity: 30 cST





Setting range (bar)

Pressure increase (bar/turn)

      Q= 4l/min

Standard setting

        (bar)

10-50*

7

30

20-100

12

75

30-180 standard

30

90°o:p>

50-250

45

130

80-300

50

150

*For setting less than 70 Bar: Q = 12l/min
