24V DC Single Acting Hydraulic Trailer Tipper Kit - 2.5 Tonne Lift, 600mm Stroke with Backup Hand Pump

Product SKU:

ZZ017773

as low as
£568.56
£682.27 incl. VAT
Quantity:
minus
minus
In Stock
12 Month Warrantly

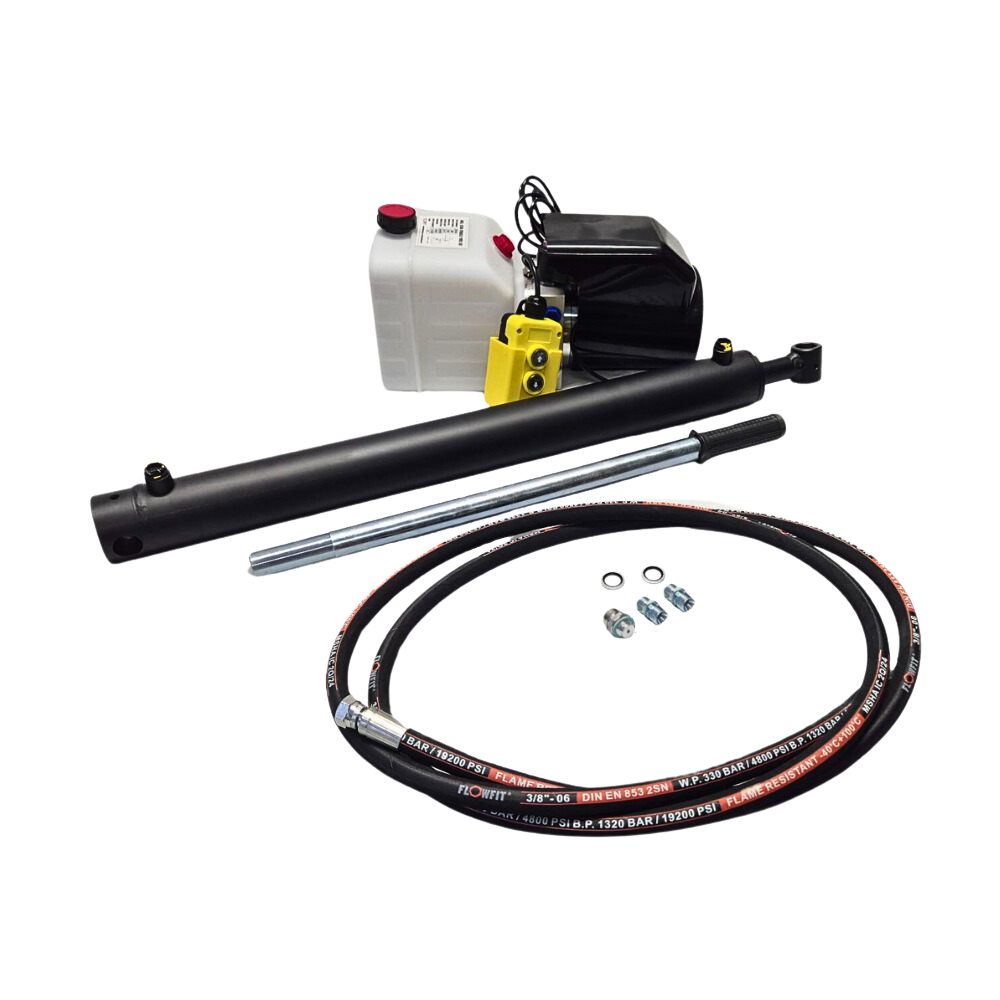

24V DC Single Acting Hydraulic Trailer Tipper Kit - 2.5 Tonne Lift, 600mm Stroke with Backup Hand Pump for 2.5 tonne lift applications with a 600mm cylinder stroke, supplied complete with hydraulic cylinder, hose, adaptors and fittings with backup hand pump.

Product Features:

2.5 tonne lift capacity
40mm Bore x 25mm Rod x 600mm Stroke with 770mm closed centre
24V DC power pack with backup hand pump
3 metres of Flowfit EN853 2SN 3/8" hose, pre-crimped and ready
4L/min max flow at 220 bar

Customers who bought this product also bought these

24V DC Electric Hydraulic Tipping Trailer Lift Kit - 2.5 Tonne Lift, 600mm Stroke with Emergency Backup Hand Pump

The Flowfit 24V DC single acting hydraulic trailer tipper kit is a complete mobile hydraulic kit designed for tipper trailers, tipping bodies and single-acting hydraulic cylinder applications with backup hand pump operation.

This model is rated for 2.5 tonne lift with a 600mm cylinder stroke, providing hydraulic pressure for lifting with controlled gravity return for lowering.

Common Uses

- Tipper trailers
- Tipping bodies
- Dump trailers
- Agricultural tipping trailers
- Plant and mobile machinery
- Mobile hydraulic lifting systems
- Single-acting hydraulic cylinder systems

Available Trailer Kit Options

Part Number Lift Capacity Cylinder Stroke
ZZ0177722.5 Tonne Lift400mm stroke
ZZ0177763.9 Tonne Lift400mm stroke
ZZ0177795.6 Tonne Lift400mm stroke
ZZ0177827.7 Tonne Lift400mm stroke
ZZ01778510 Tonne Lift400mm stroke
ZZ0177732.5 Tonne Lift600mm stroke
ZZ0177773.9 Tonne Lift600mm stroke
ZZ0177805.6 Tonne Lift600mm stroke
ZZ0177837.7 Tonne Lift600mm stroke
ZZ01778610 Tonne Lift600mm stroke
ZZ0177742.5 Tonne Lift700mm stroke
ZZ0177783.9 Tonne Lift700mm stroke
ZZ0177815.6 Tonne Lift700mm stroke
ZZ0177847.7 Tonne Lift700mm stroke
ZZ01778710 Tonne Lift700mm stroke

Technical Data

Specification Details
Kit Type Single acting hydraulic trailer tipper kit
Power / Control 24V DC hydraulic power pack
Control Method 12V/24V DC hydraulic power pack with 2-button pendant with backup hand pump
Operation Powered lift with controlled gravity return lowering
Cylinder 40mm Bore x 25mm Rod x 600mm Stroke
Closed Centre 770mm closed centre
Lift Capacity 2.5 Tonne Lift
Maximum Flow / Pressure 4L/Min @ 220Bar
Supplied With Hydraulic power pack, backup hand pump, hydraulic cylinder, 3 Metres of Flowfit EN853 2SN 3/8” Hydraulic Hose, Pre-crimped and ready to install, with ferrule and hose fittings included, adaptors and washers
Application Trailer tipping and hydraulic lifting systems

Application note: This kit is commonly used where powered trailer tipping is required with the added security of a backup hand pump for manual operation.

Important Information

- Designed for single-acting cylinder systems
- Requires a suitable high-capacity battery and inline fuse
- Please check the required lift capacity and cylinder stroke before ordering
- Lifting figures are based on a straight vertical lift

Note: Please check the required lift capacity, cylinder stroke and hydraulic system requirements before ordering to ensure the correct trailer tipper kit option is selected.
