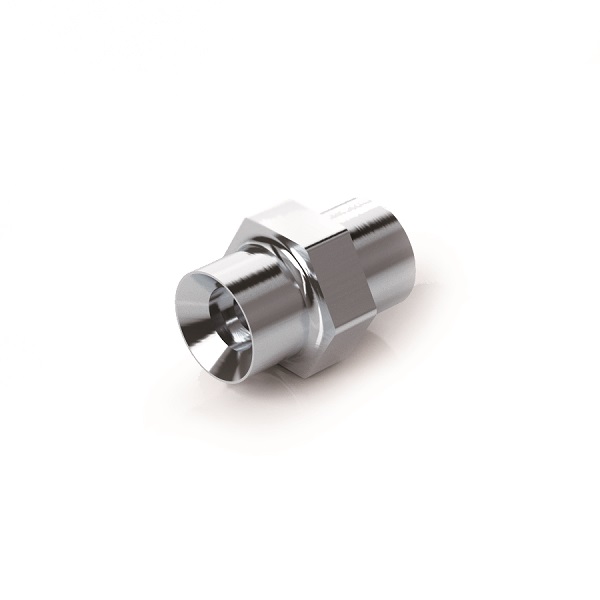

Hydraulic Male/Male Check Valve, 8 L/min, 1/4" BSP, 3 Bar, VU MM

Product Sku: V0594/3
Price: £11.56  exc VAT (£ 13.87 inc VAT)

Hydraulic Male/Male Check Valve, VU MM 1/4", 3 Bar, Flow Rate 8 L/min, Max Pressure 350 Bar, Cracking Pressure 3 Bar

Product Features:

    1/4" BSP


    Flow Rate 8 L/min


    Max Pressure 350 Bar


    Cracking Pressure 3 Bar

 Rollover images to enlarge
Flowfit Flowfit


Check valves allow free flow in one direction and is blocks the flow in the reverse direction, used to keep a hydraulic system pressurised.



Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Leakage: guided poppet - no leakage.

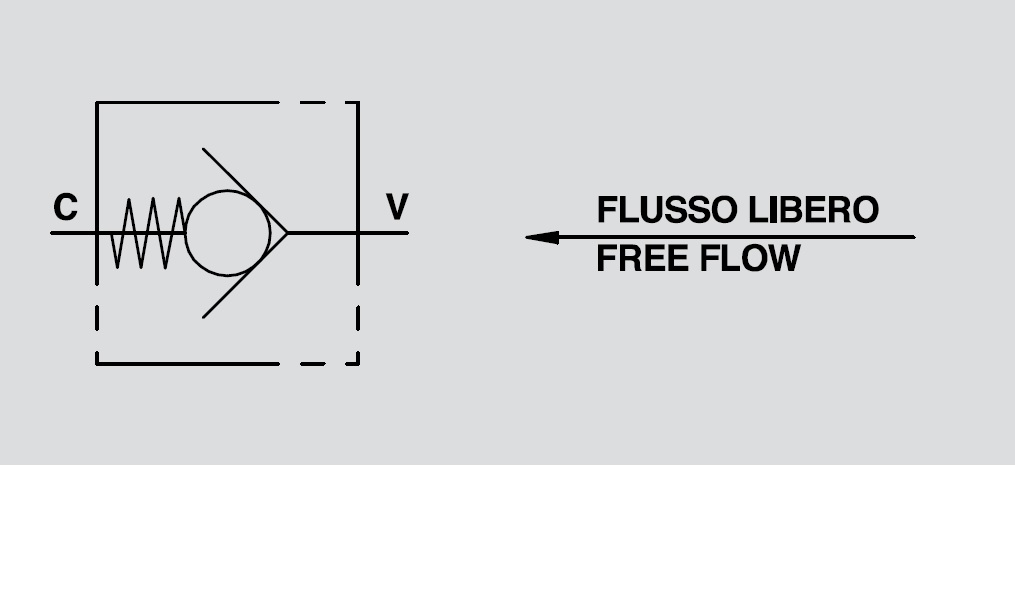

Connect V to the pressure flow and C to the actuator. Flow is free from V to C and blocked in the reverse direction.



  • Different cracking pressures: 1-3-6-9 bar (please specify the desired cracking pressure in the product descripition).
  • ;


     Oil temperature 50° C – Oil viscosity: 30 cST




    0.4/0.7 Bar

    1 Bar

    3 Bar 5 Bar 8 Bar

    VU 1/4"



    V0590/3 V0590/5 V0590/8

    VU 3/8"



    V0600/3 V0600/5 V0600/8

    VU 1/2"



    V0610/3 V0610/5 V0610/8

    VU 3/4"



    V0620/3 V0620/5 V0620/8

    VU 1"



    V0630/3 V0630/5 V0630/8
    VU 1 1/4" / V0631 V0631/3 V0631/5 V0631/8
    VU 1 1/2" / V0632 V0632/3 V0632/5 V0632/8
    VU 2" V0633 / / / /
