Solenoid Spool Diverter Valves
Flowfit 3 Way Hydraulic Solenoid Diverter 3/8" BSP Port Size, 12V DC, 80 L/Min Flows
Flowfit 6 Way Hydraulic Solenoid Diverter, 3/8" BSP Port Size, 12V DC, 50 L/Min Flows
Flowfit 6 Way Hydraulic Solenoid Diverter, 3/8" BSP, Internal Drained, 12V DC, 50 L/Min Flows
Flowfit 6 Way Solenoid Diverter, 1/2" BSP Port Size, 12V DC, 80 L/Min Flows
Walvoil push button on/off handlever microswitch for solenoid hydraulic diverters, M10 Thread Type, 250mm Length
Walvoil rocker switch on/off detent 2 position handlever microswitch for solenoid hydraulic diverters, M10 Thread Type, 250mm Length
Walvoil Microswitch & Rocker Switch (ON)/OFF/(ON) M10, 250mm Length, AL17
Precision Solenoid Spool Diverter Valves for Directional Hydraulic Control
Instantly manage fluid direction with our robust selection of solenoid spool diverter valves. Engineered for rapid, reliable switching between two or more hydraulic circuits, these valves are essential for expanding the functionality of mobile equipment and industrial machinery.
Maximise Your Machine's Functionality & Efficiency
Flowfit Solenoid Spool Diverter Valves come in 2 variants: 3
way spool valves and 6 way spool valves.

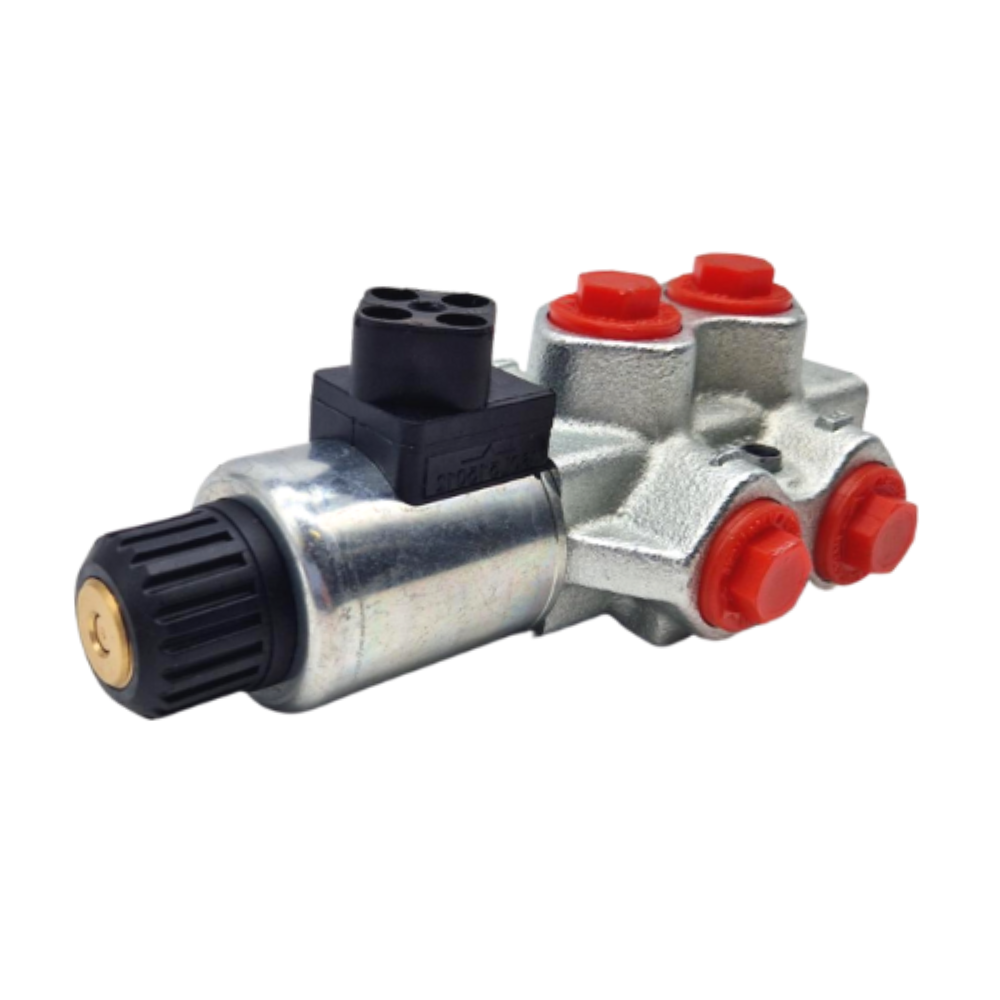

3 Way
Used to divert flow from one line to another – P to B >> P to A.
3/8” BSP and ½” BSP; rated at 80L/min at 210Bar, in 12vdc, 24vdc, 110vac & 220vac coil options.

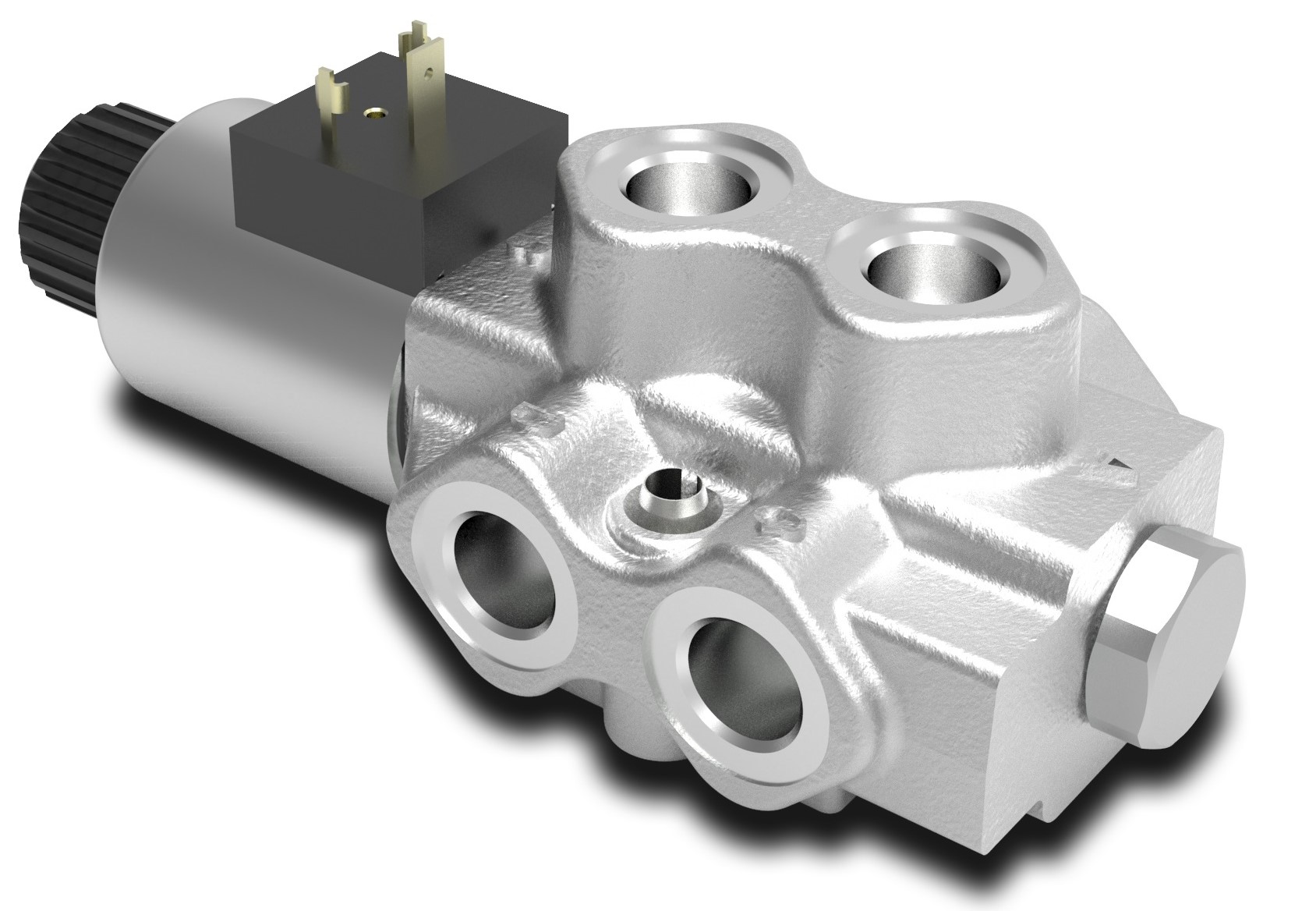

6 Way
Used to divert one double acting service to another – P1& P2 to C & D >> P1& P2 to A & B
3/8” BSP and ½” BSP; rated at 50L/min at 250Bar, in 12vdc, 24vdc, 110vac & 220vac coil options.
Internal and ¼” external drain options available.
1/2” BSP and 3/4” BSP; rated at 80L/min at 315Bar, in 12vdc, 24vdc, 110vac & 220vac coil options.
¼” external drain only.
Need Help Choosing the Right Diverter Valve?
Don't risk costly downtime due to incompatible parts. We understand hydraulic complexity. That's why our in-house experts are on standby to precisely match your machine's specifications to the ideal spool diverter valve. We guarantee the fitment and function for every component you purchase.
