Walvoil 3TPW Hydraulic Cast Iron Gear Pump, Group 3, 52CC, Clockwise, SAE J5-1, 39mm Inlet & 25mm Outlet, SAEC4F 4 Bolt 14T Spline
1GP30011179
Product Features:
Customers who bought this product also bought these
Walvoil 3TPW Hydraulic Cast Iron Gear Pump, Group 3, 52CC, Clockwise, SAE J5-1, 39mm Inlet & 25mm Outlet, SAEC4F 4 Bolt 14T Spline
Includes SAE J5-1 connections, a SAEC4F 4-bolt flange, and a 14T Spline shaft. Walvoil 3TPW cast iron gear pumps are engineered for demanding hydraulic applications where conventional aluminium pumps reach their performance limits. Ideal for mobile equipment exposed to heavy-duty operating cycles, these pumps offer superior durability and reliability under high pressure and mechanical stress.

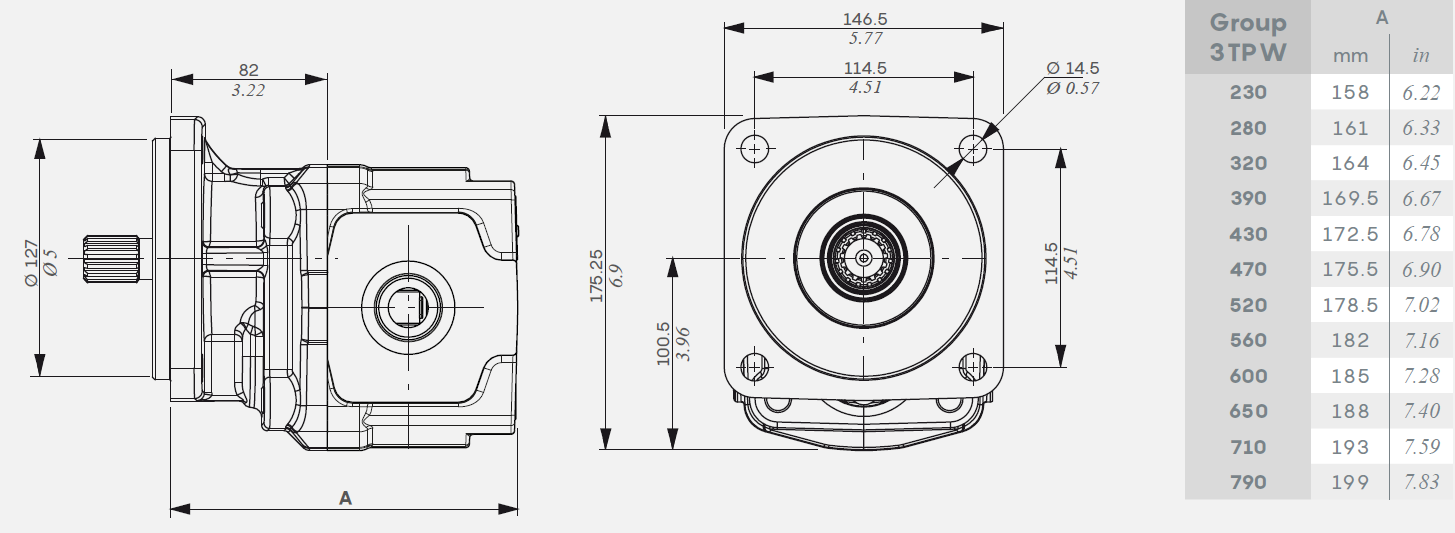

SAEC4F FLANGE (n. 4 holes)

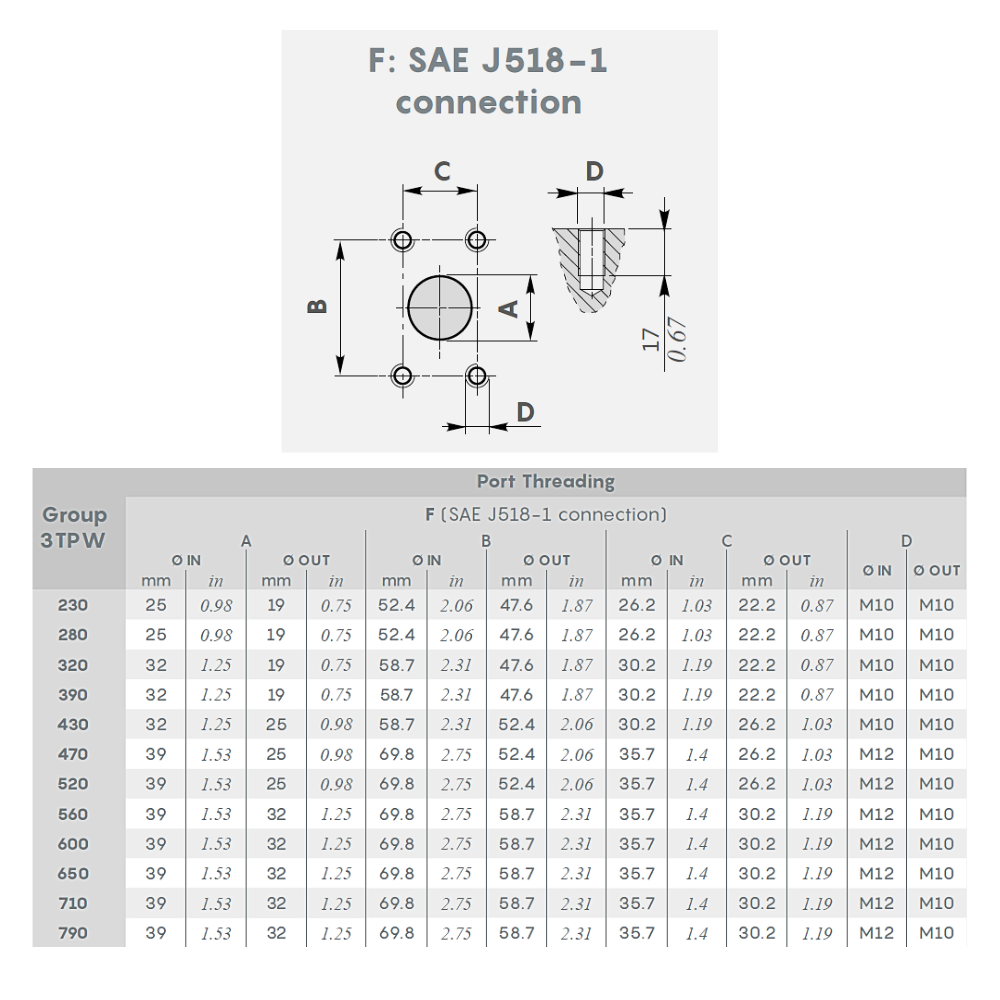

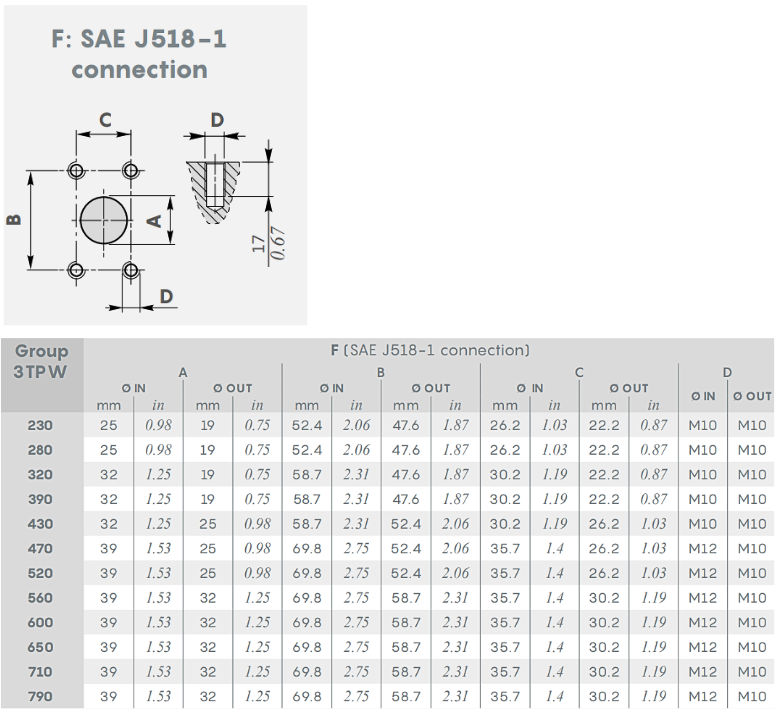

SAE J518-1 CONNECTION

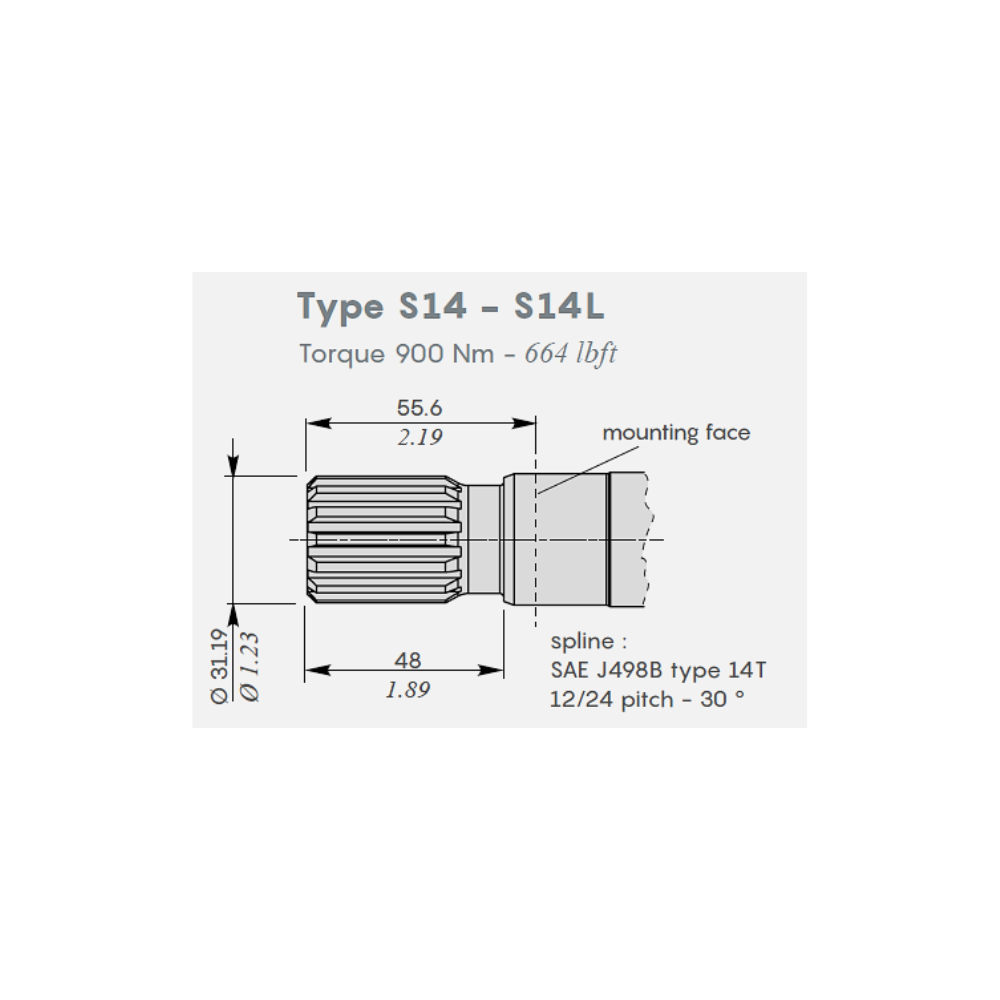

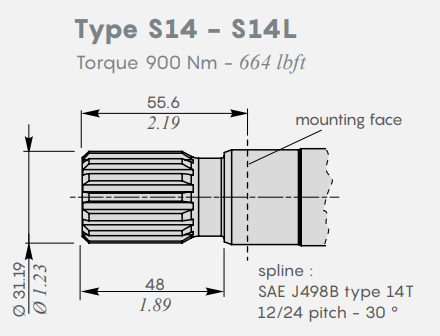

SHAFT
| GROUP 3TPW | DISPLACEMENT | MAX CONTINUOUS PRESSURE | MAX INTERMITTENT PRESSURE | MAX PEAK PRESSURE | MAX ROTATION SPEED | ||||
|---|---|---|---|---|---|---|---|---|---|
| cm3/rev | in3 /rev | Bar | PSI | Bar | PSI | Bar | PSI | RPM (MAX) | |
| 230 | 23.9 | 1.46 | 300 | 4,350 | 320 | 4,640 | 330 | 4,785 | 3000 |
| 280 | 28 | 1.71 | 300 | 4,350 | 320 | 4,640 | 330 | 4,785 | 3000 |
| 320 | 32.2 | 1.96 | 300 | 4,350 | 320 | 4,640 | 330 | 4,785 | 3000 |
| 390 | 39.7 | 2.42 | 300 | 4,350 | 320 | 4,640 | 330 | 4,785 | 3000 |
| 430 | 43.8 | 2.67 | 300 | 4,350 | 320 | 4,640 | 330 | 4,785 | 3000 |
| 470 | 47.9 | 2.92 | 290 | 4,205 | 310 | 4,495 | 320 | 4,640 | 3000 |
| 520 | 52 | 3.18 | 290 | 4,205 | 310 | 4,495 | 320 | 4,640 | 2800 |
| 560 | 56.8 | 3.47 | 290 | 4,205 | 310 | 4,495 | 320 | 4,640 | 2500 |
| 600 | 60.9 | 3.72 | 270 | 3,915 | 290 | 4,205 | 300 | 4,350 | 2500 |
| 650 | 65 | 3.97 | 250 | 3,625 | 270 | 3,915 | 280 | 2,060 | 2500 |
| 710 | 71.6 | 4.37 | 230 | 3,335 | 250 | 3,625 | 260 | 3,770 | 2500 |
| 790 | 79.8 | 4.87 | 210 | 3,045 | 230 | 3,335 | 240 | 3,480 | 2500 |
WORKING CONDITIONS
Fluid: Hydraulic mineral oil based
Fluid temperature
With NBR (buna N) seals: from -20 to +80 °C (from -4 to +176 °F)
Viscosity
Recommended: from 15 to 92 mm2/s (cSt)
Permitted for starting: 2000 mm2/s (cSt)
Max level of contamination
Recommended for operating pressure > 150 bar (2150 psi) - 20/18/15 ISO 4406 class 9 (NAS 1638)
Recommended for operating pressure < 150 bar (2150 psi) - 21/18/15 ISO 4406 class 10 (NAS 1638)
Note: For motor configuration, please contact Sales Department.
