Hydrotechnik WLB-DPG, Watchlog Bluetooth Digital Pressure Gauge Test Kit
DPG-TEST-KIT
Product Features:
Hydrotechnik WLB-DPG, Watchlog Bluetooth Digital Pressure Gauge Test Kit
The Hydrotechnik DPG Digital Pressure Gauge & Minimess® Test Kit offers accurate, real-time hydraulic and pneumatic pressure testing. Featuring Bluetooth® connectivity via the Watchlog app, the DPG gauge displays live and peak readings with 0.2% accuracy. Its rugged IP67-rated design, leak-free Minimess connections up to 630 bar, and complete kit with hoses and adaptors make it ideal for on-site diagnostics and industrial maintenance applications.
KIT CONTENTS
- 1 or 2x WLB-DPG series digital pressure gauges with 1620 male connection, selectable up to 1000 bar with bluetooth app datalogging capabilities.*
- 2 x SNA series Minimess Male/Swivel Female 1620 inline test point adaptors. 3/8" & 1/2" BSP.
- 2 x Minimess 1620 test points - G1/4" BSP and M10x1 male thread.
- 1x G1/4" BSP gauge female to Minimess 1620 female gauge adaptor.
- 1 or 2 x 630 bar rated Minimess microbore pressure test hose, 1.5 meters long.
- Additional 3/8" & 1/2" BSP male threaded adaptors & seals.
AVAILABLE MODELS
| Part Number | Measuring Range |
|---|---|
| WLB-DPG-V016 | -1 to +16 bar |
| WLB-DPG-0060 | 0 to 60 bar |
| WLB-DPG-0160 | 0 to 160 bar |
| WLB-DPG-0250 | 0 to 250 bar |
| WLB-DPG-0400 | 0 to 400 bar |
| WLB-DPG-0700 | 0 to 700 bar |
| WLB-DPG-1000 | 0 to 1000 bar |
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Pressure Ranges | Negative/Compound Pressure: Vacuum to 1 & 16 bar Low Pressure (on request): 0…0.1, 0.4 & 0.6 bar Medium Pressure: 0…60, 160 & 250 bar High Pressure: 0…400, 700 & 1000 bar |
| Overload Capacity | 200% of FS (up to 400 bar) 150% of FS (700 bar range) 120% of FS (1000 bar range) |
| Backlight Colour | White |

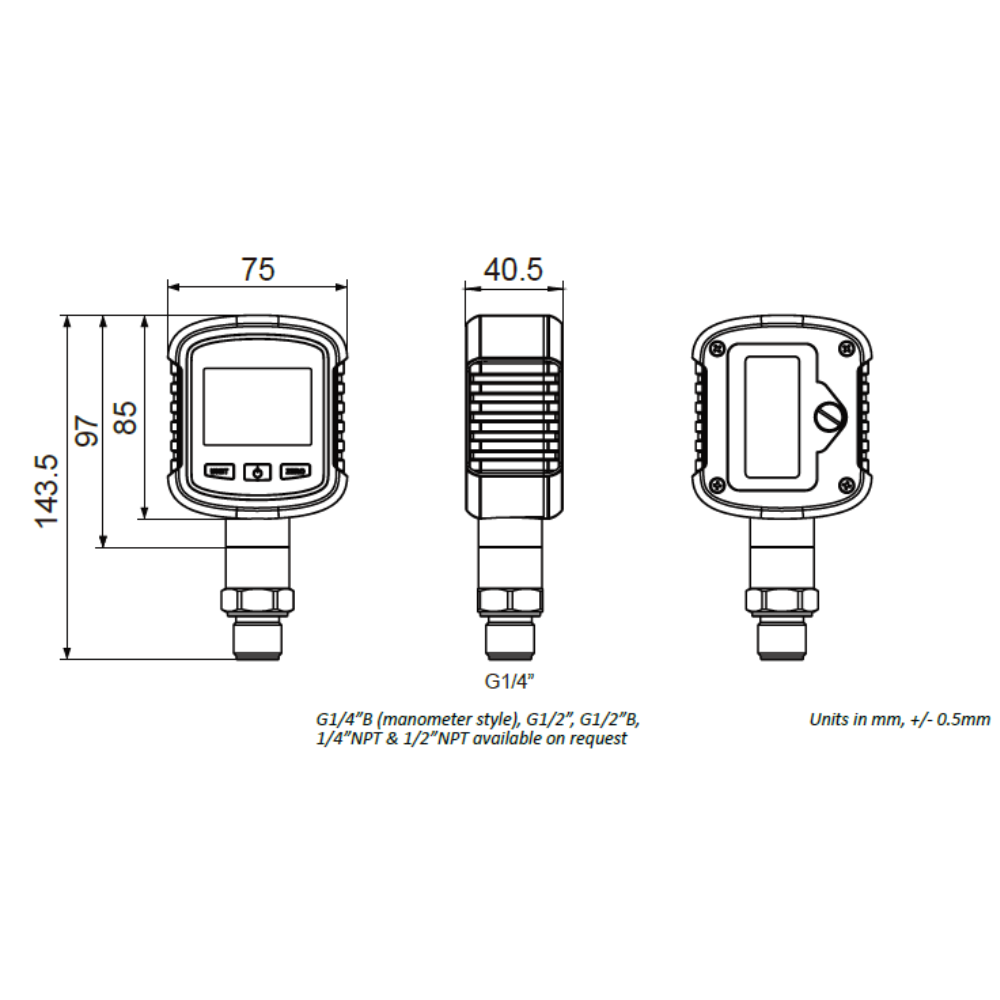

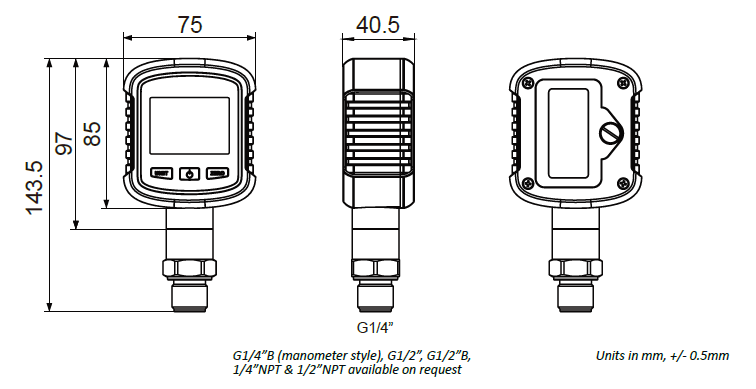

| Dimensions | 143.5 × 75 × 40.5 mm |
| Accuracy | ±0.2% FS |
| Long-term Stability | ±0.3% FS/year |
| Operating Temperature | -20°C to +65°C |
| Electrical Protection | Anti-electromagnetic interference design |
| Measuring Medium | Oil, water, gas, and other stainless-steel corrosion-free media |
| Pressure Connection | G1/4" BSP (alternative threads on request) |
| Connection Material | Sensor Body: 304L Measuring Cell: 316L |
| Shell Material | TPE + ABS |
| Product Functions | Power on/off, backlight, zero reset, clear, switch extreme value, record, Bluetooth connection |
| Power Supply | 3V (2× AA batteries) |
| Power Display | Four-section battery indicator |
| Display Dial | Rotatable 330° |
| Pressure Units | MPa, bar, kgf, mH₂O, PSI, kPa, mmHg, mBAR, mmH₂O, Pa, inWC |
| Protection Level | IP54 |
| Weight | 243g (without 2× AA batteries) |
