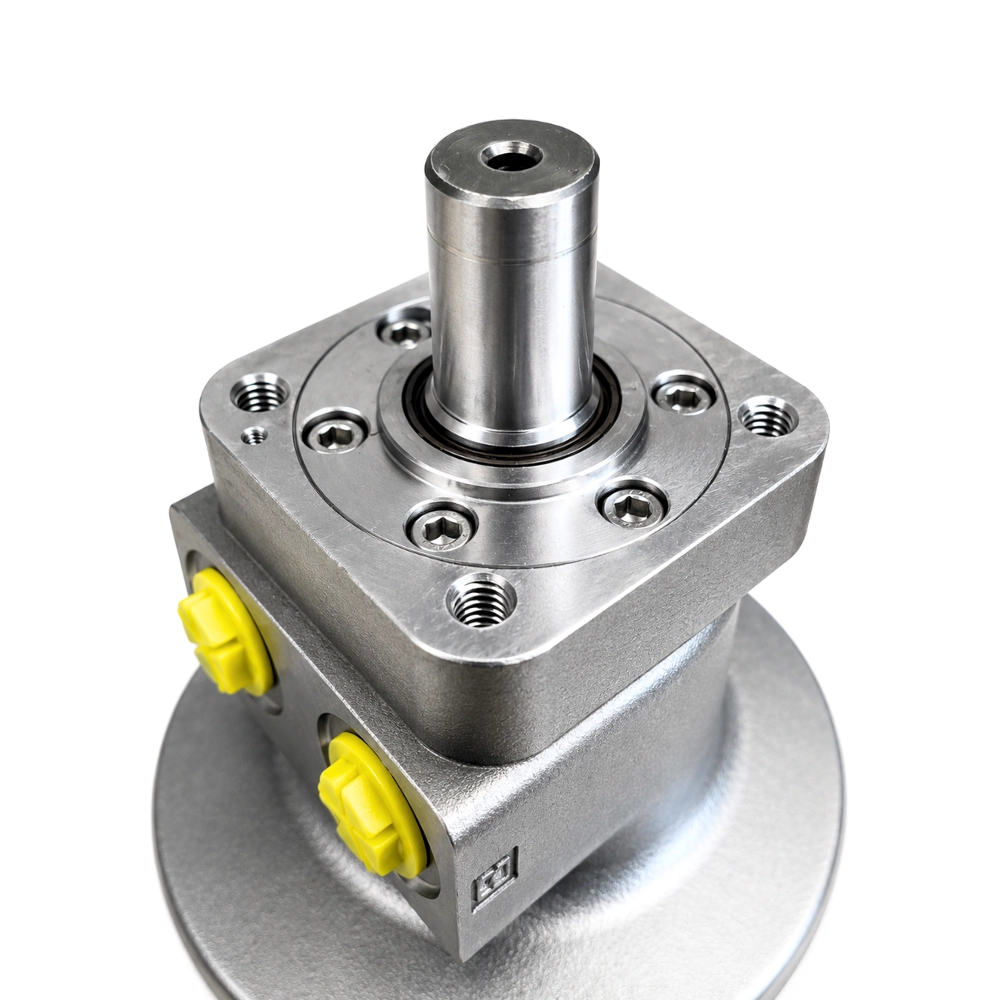

50CC Stainless Steel 4 Bolt Square Mount Hydraulic Motor, 1" Parallel Keyed Shaft, Low Speed High Torque
FFPMQSS50COD
Product Features:
50CC Stainless Steel Hydraulic Motor with 1" Keyed Shaft and 4 Bolt Mount
This 50cc stainless steel hydraulic motor is a compact low speed, high torque geroler motor designed for demanding hydraulic applications.
Featuring a stainless steel housing and output shaft, this motor provides improved corrosion resistance for wet, harsh, washdown, marine and outdoor environments.
Supplied with a 25.4mm / 1" parallel keyed shaft, 4 bolt square mount and 1/2" BSP ports, making it suitable for a wide range of hydraulic drive and replacement applications.
Product Specification
- Displacement: 50CC nominal / 51.7 ml/r actual

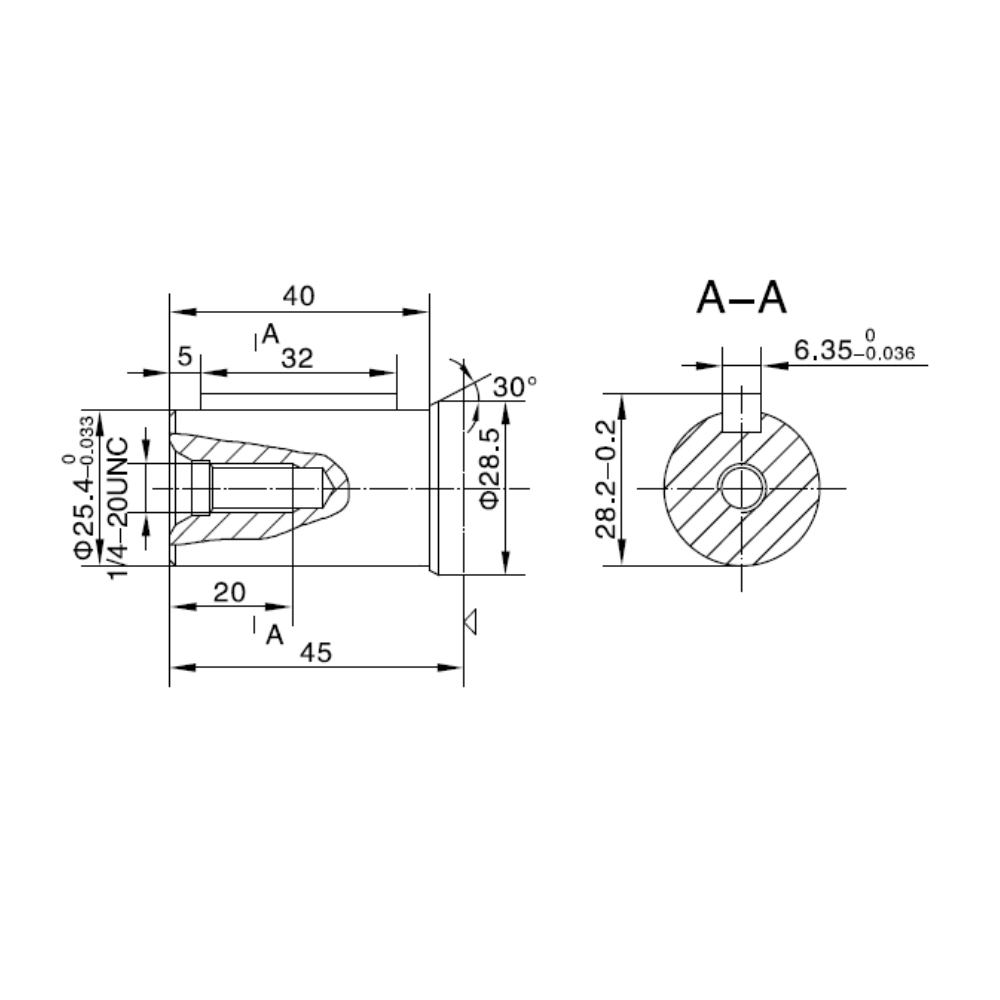

- Shaft: 25.4mm / 1" parallel keyed | Mount: 4 bolt square | Ports: 1/2" BSP
- Material: Stainless steel housing and output shaft
- Motor Type: Low speed, high torque geroler hydraulic motor
- Pressure Drop: 12.5 MPa continuous / 16.5 MPa intermittent
- Torque: 75 Nm continuous / 115 Nm intermittent
- Max. Speed: 675 r/min | Max. Flow: 35 L/min | Output Power: 4.5 kW
Technical Data
| Type | FFPMQSS -50 | FFPMQSS -80 | FFPMQSS -100 | FFPMQSS -125 | FFPMQSS -160 | FFPMQSS -200 | FFPMQSS -250 | FFPMQSS -315 | FFPMQSS -400 |
|---|---|---|---|---|---|---|---|---|---|
| Displacement ml/r | 51.7 | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 |
| Pressure Drop Cont. / MPa | 12.5 | 12.5 | 12.5 | 12.5 | 11.5 | 10 | 8 | 6.5 | 5 |
| Pressure Drop Int. / MPa | 16.5 | 16.5 | 16.5 | 14 | 11.5 | 10 | 8 | 6.5 | 5 |
| Torque Cont. / Nm | 75 | 125 | 150 | 200 | 230 | 230 | 230 | 230 | 230 |
| Torque Int. / Nm | 115 | 175 | 220 | 230 | 230 | 230 | 230 | 230 | 230 |
| Speed Cont. / r/min | 675 | 430 | 445 | 355 | 275 | 220 | 175 | 135 | 110 |
| Flow Cont. / L/min | 35 | 35 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Output Power Cont. / kW | 4.5 | 4.8 | 6 | 6.3 | 5.6 | 4.5 | 3.5 | 3 | 2.5 |
Suitable Applications
- Marine and wet environment hydraulic systems
- Agricultural machinery
- Construction and plant equipment
- Conveyor drives
- Winches and rotary drives
- Brush cutters, sweepers and attachments
- General low speed, high torque hydraulic applications
Note: Please check shaft size, mounting pattern, port size, displacement and pressure requirements before ordering to ensure compatibility with your hydraulic system.
