OMP/OMR Hydraulic Motor Bearing Support – 2 Bolt SAE A 25mm Input/Output
KS30003-1
Product Features:
Customers who bought this product also bought these
Hydraulic Motor Overhung Load Adaptor for OMP/OMR Hydraulic Motors – SAE A 2-Bolt, 25mm Shaft

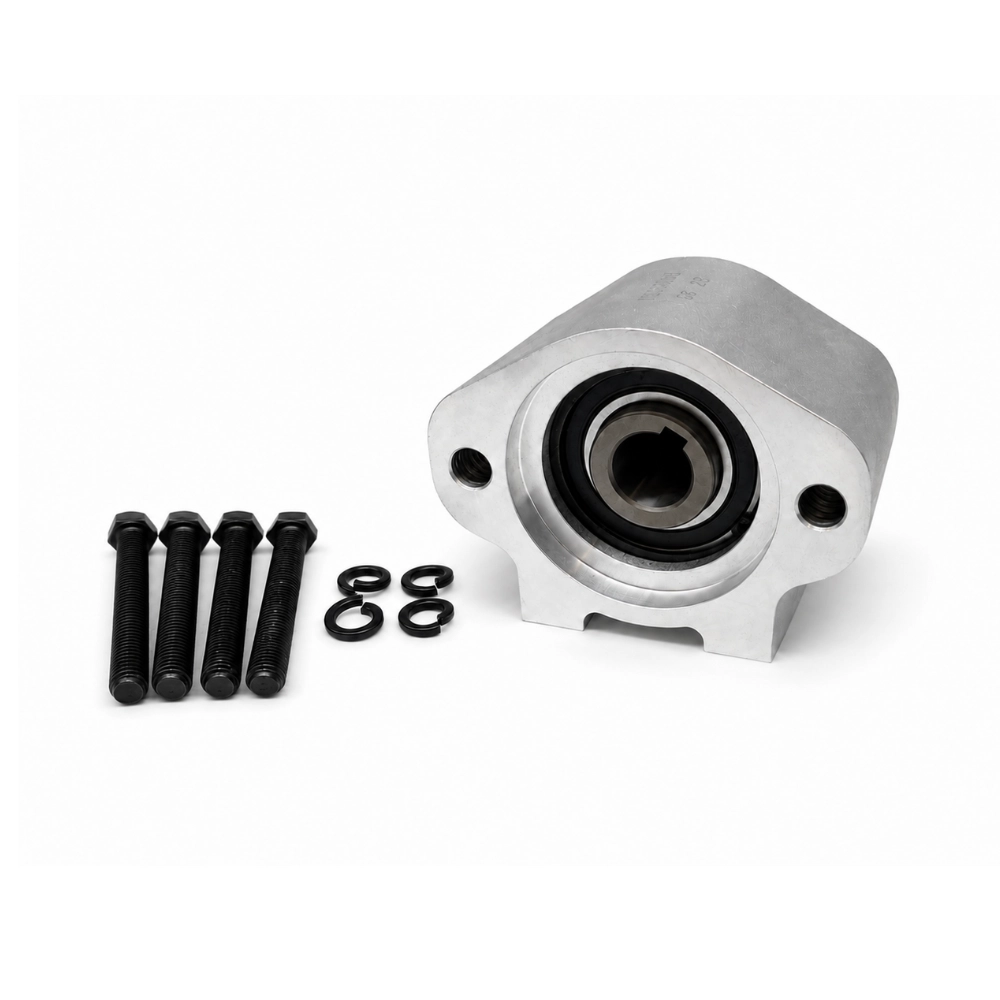

The OMP/OMR Hydraulic Motor Bearing Support – SAE A 2-Bolt, 25 mm Shaft is an overhung load adaptor designed for compatible OMP and OMR orbital hydraulic motors. It is also suitable for Flowfit FFPM and FFPRM hydraulic motors fitted with the CD shaft option, featuring a 25mm parallel keyed shaft.

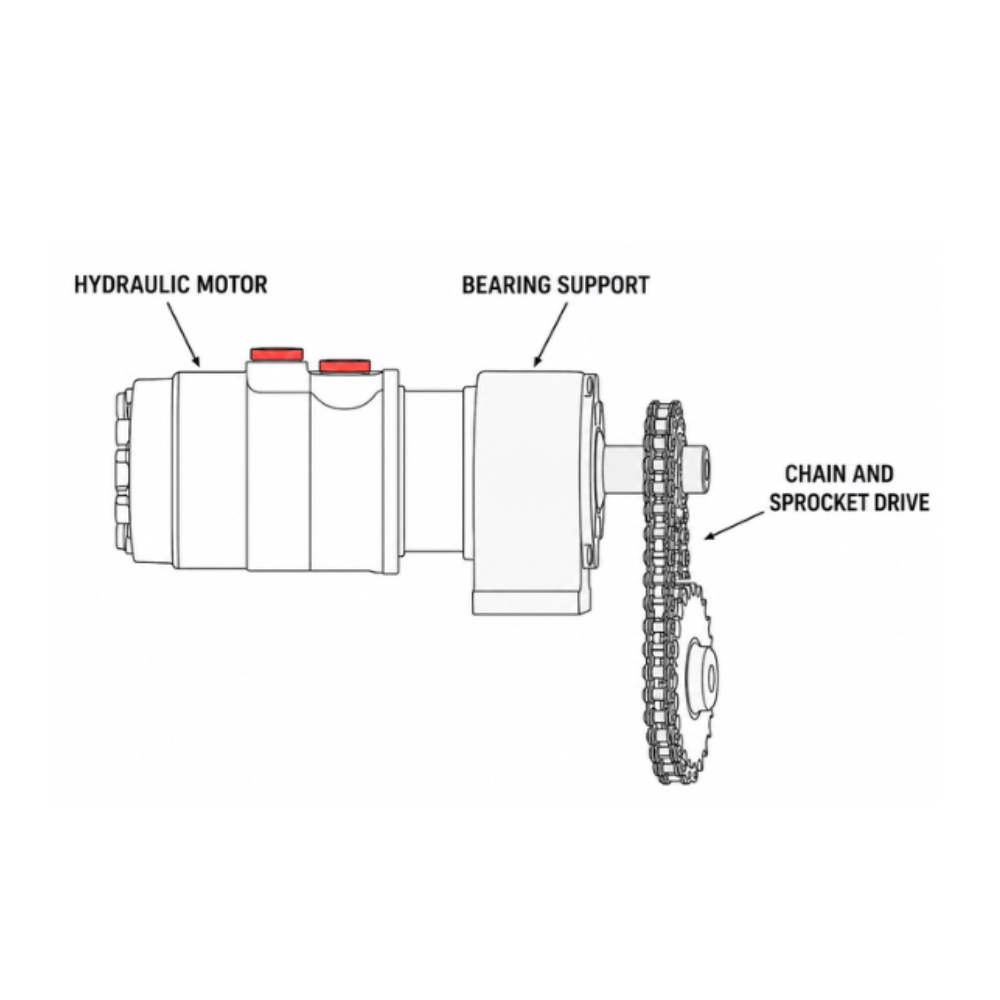

The external bearing arrangement supports radial and axial loads created by pulleys, sprockets, gears and other driven components. This helps reduce loading on the hydraulic motor shaft, bearings and shaft seal, improving drivetrain stability and helping to prevent premature motor wear.
| Specification | Details |
|---|---|
| Product type | Hydraulic motor bearing support and overhung load adaptor |
| Motor compatibility | Compatible OMP and OMR motors, plus Flowfit FFPM and FFPRM motors |
| Mounting interface | SAE A 2-bolt mounting pattern |
| Shaft compatibility | 25mm parallel keyed shaft |
| Primary function | Supports external radial and axial loads |
| Typical driven components | Pulleys, sprockets, gears, couplings and mechanical drive assemblies |
Key benefits
Helps isolate the hydraulic motor from demanding overhung loads generated by belt, chain and gear-driven equipment.
Reduces stress on the motor shaft, bearings and shaft seal, helping to minimise unwanted movement, leakage and premature wear.
Provides a stable mounting point for driven components and may allow the hydraulic motor to be removed without disturbing connected gears, pulleys or sprockets.
Typical applications
| Application | Function |
|---|---|
| Belt and pulley drives | Supports radial loads created by belt tension. |
| Chain and sprocket systems | Reduces the load transferred from chain tension to the motor shaft. |
| Gear-driven machinery | Provides additional shaft support and helps maintain alignment. |
| Mobile and industrial equipment | Helps protect the hydraulic motor in demanding drive installations. |
Compatibility and installation
Compatible with suitable OMP and OMR hydraulic motors, as well as Flowfit FFPM and FFPRM motors fitted with the CD shaft option (25 mm parallel keyed shaft).
Before installation, confirm the SAE A 2-bolt mounting pattern, pilot diameter and shaft configuration. Correct alignment between the motor, bearing support and driven component is essential to minimise vibration, loading and premature wear.

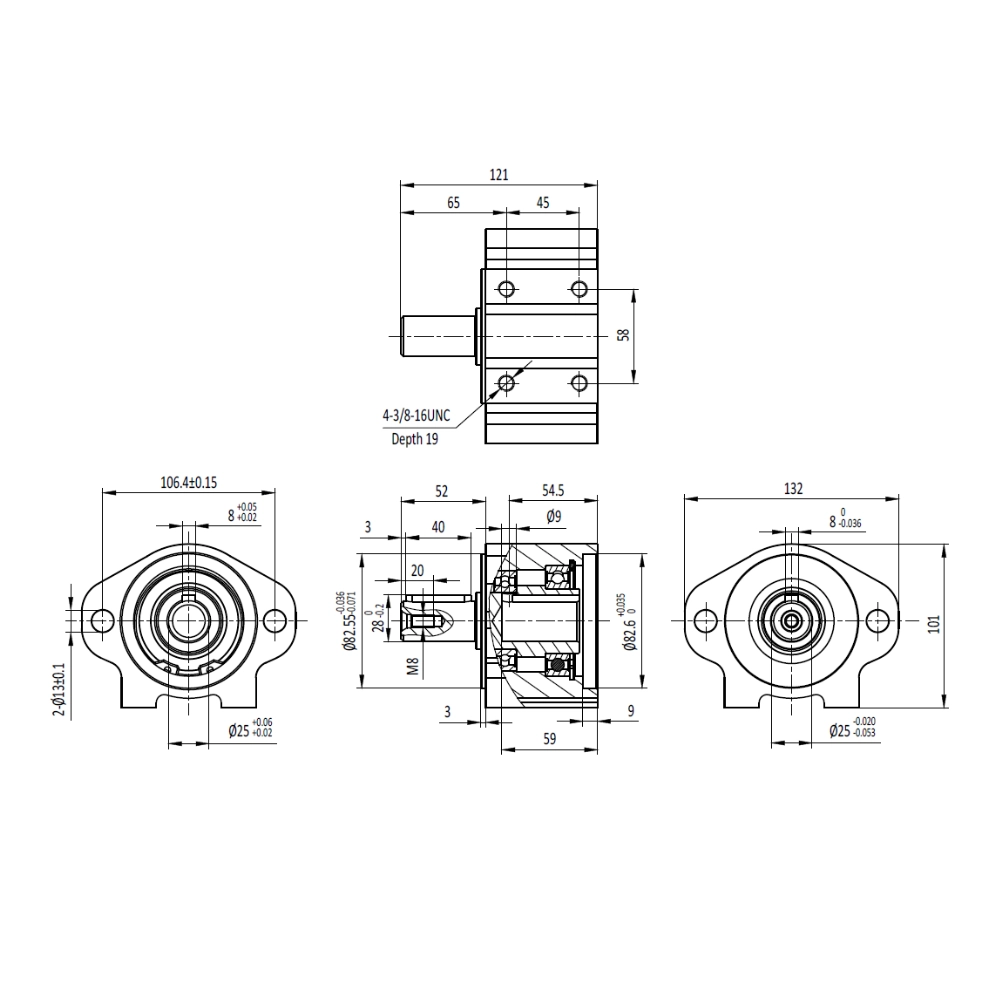

Selection note: Permissible radial and axial loads depend on operating speed, load position, drive arrangement and application duty. Refer to the technical drawing and confirm suitability before installation.
