Walvoil 2XM Hydraulic Gear Motor, Group 2, 4.1CC, Reversible (External Drain), 1/2" BSP Inlet & Outlet, EU 4 Bolt 1/8 Taper
1GM20013686
Walvoil introduces its new 2XM Gear Motor series, featuring an aluminium body and cast iron flanges. This range includes BSP inlets and outlets, a European 4-bolt flange, and a 1/8 taper shaft.
Product Features:
Customers who bought this product also bought these
Walvoil 2XM Hydraulic Gear Motor, Group 2, 4.1CC, Reversible (External Drain), 1/2" BSP Inlet & Outlet, EU 4 Bolt 1/8 Taper
Walvoil introduces the innovative 2XM Motor series, designed with an aluminium body and cast iron flanges. Hydraulic gear motors are ideal for applications requiring high torque output, compact design, and durability in harsh environments. They are commonly used in industrial and mobile machinery such as construction equipment, agricultural machinery, and forestry equipment. In heavy-duty vehicles, they power mining equipment, marine applications like winches and cranes, and railway maintenance vehicles.

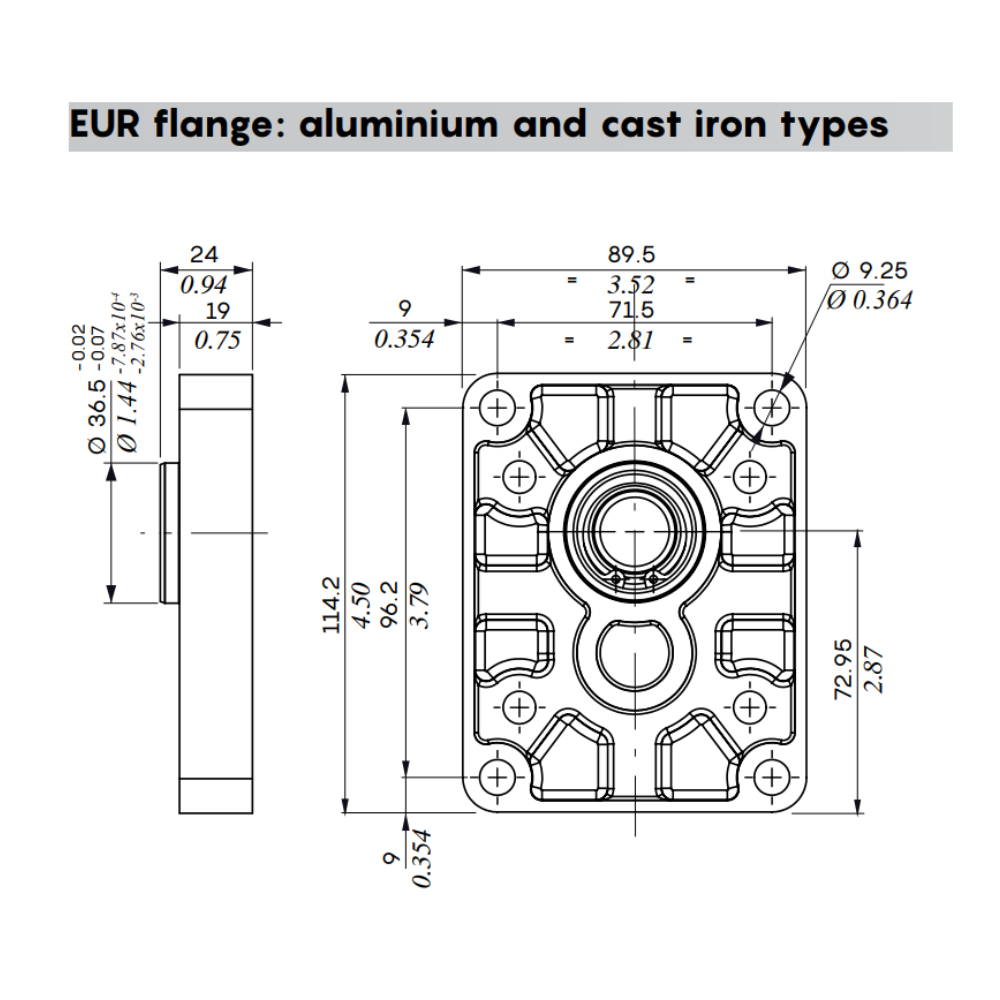

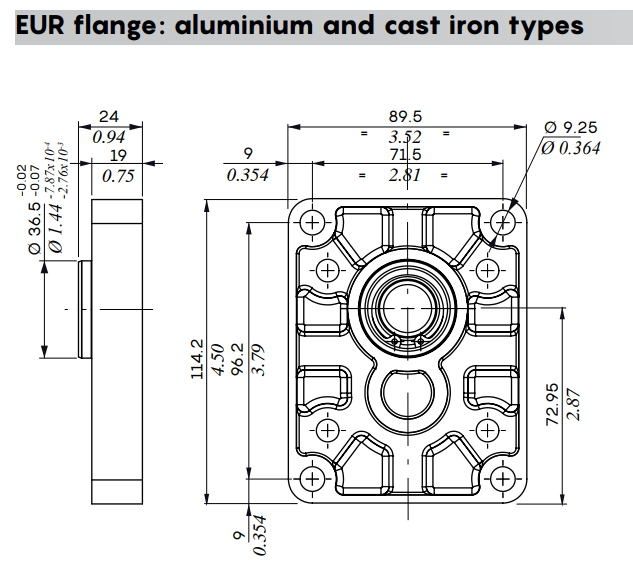

FLANGE

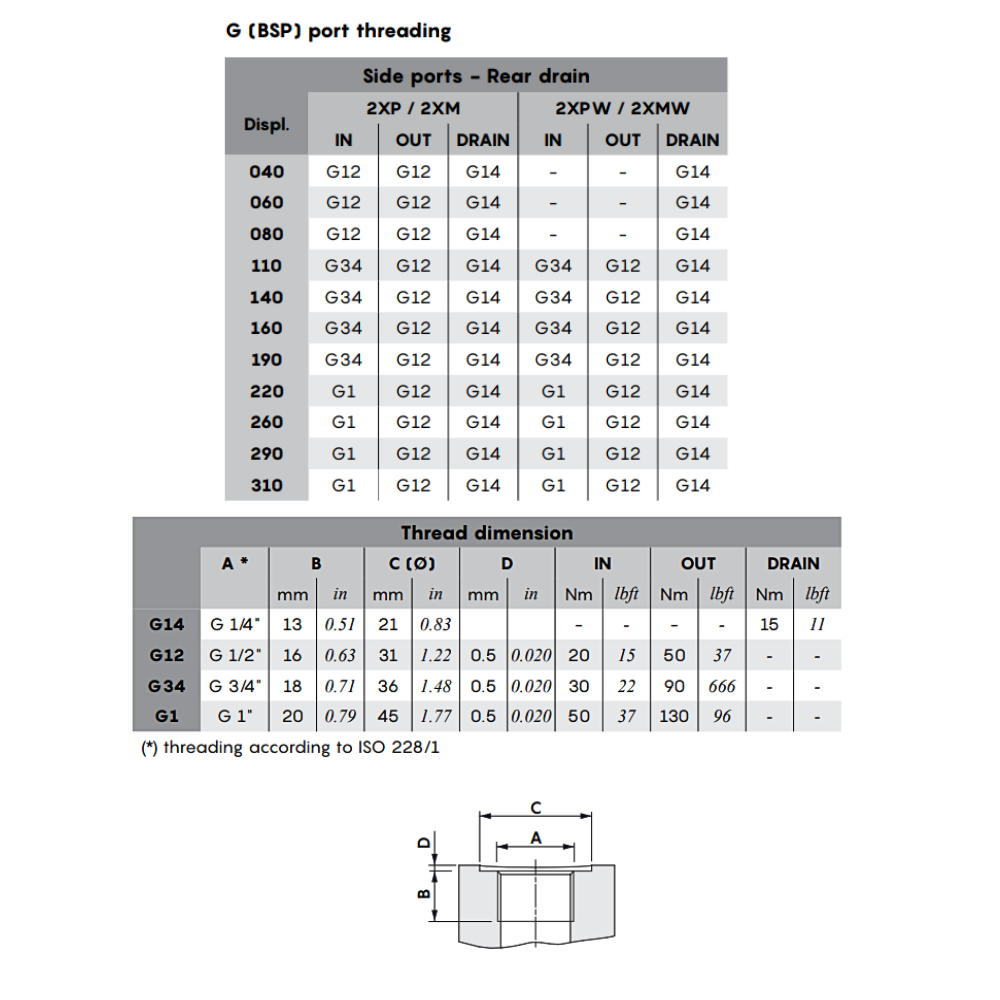

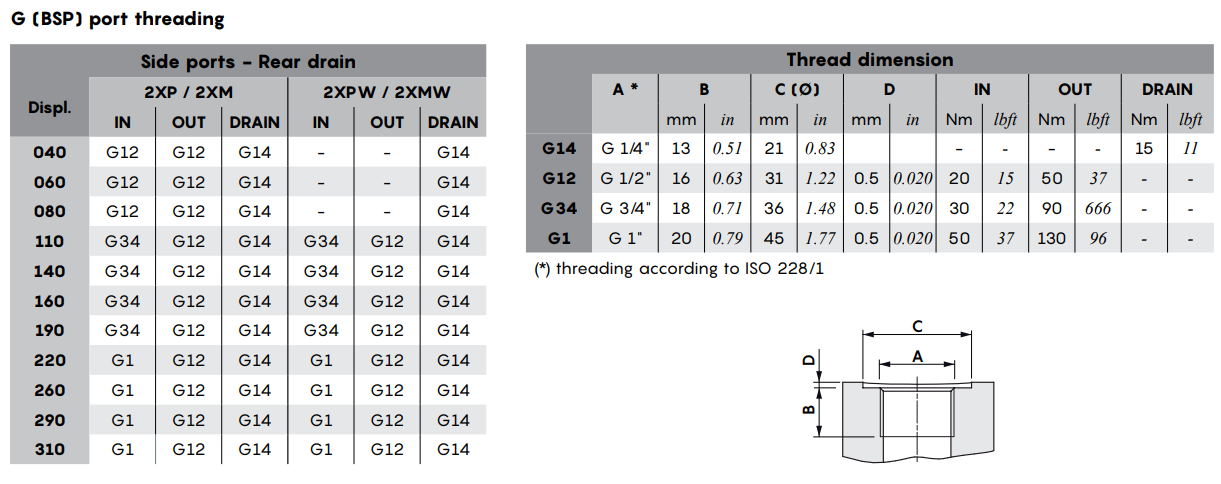

BSP PORTS

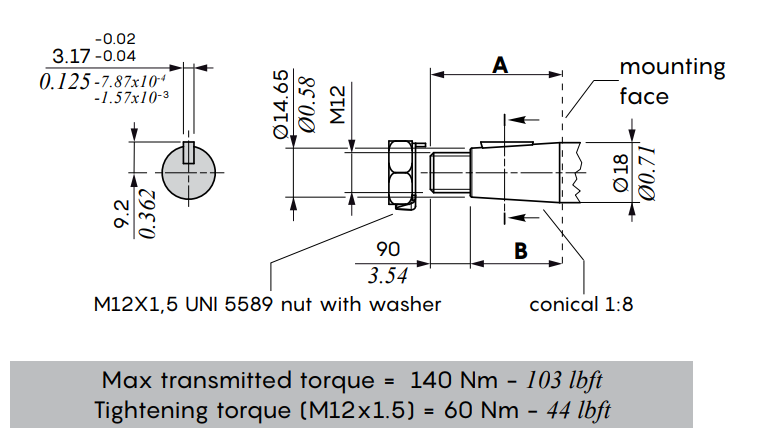

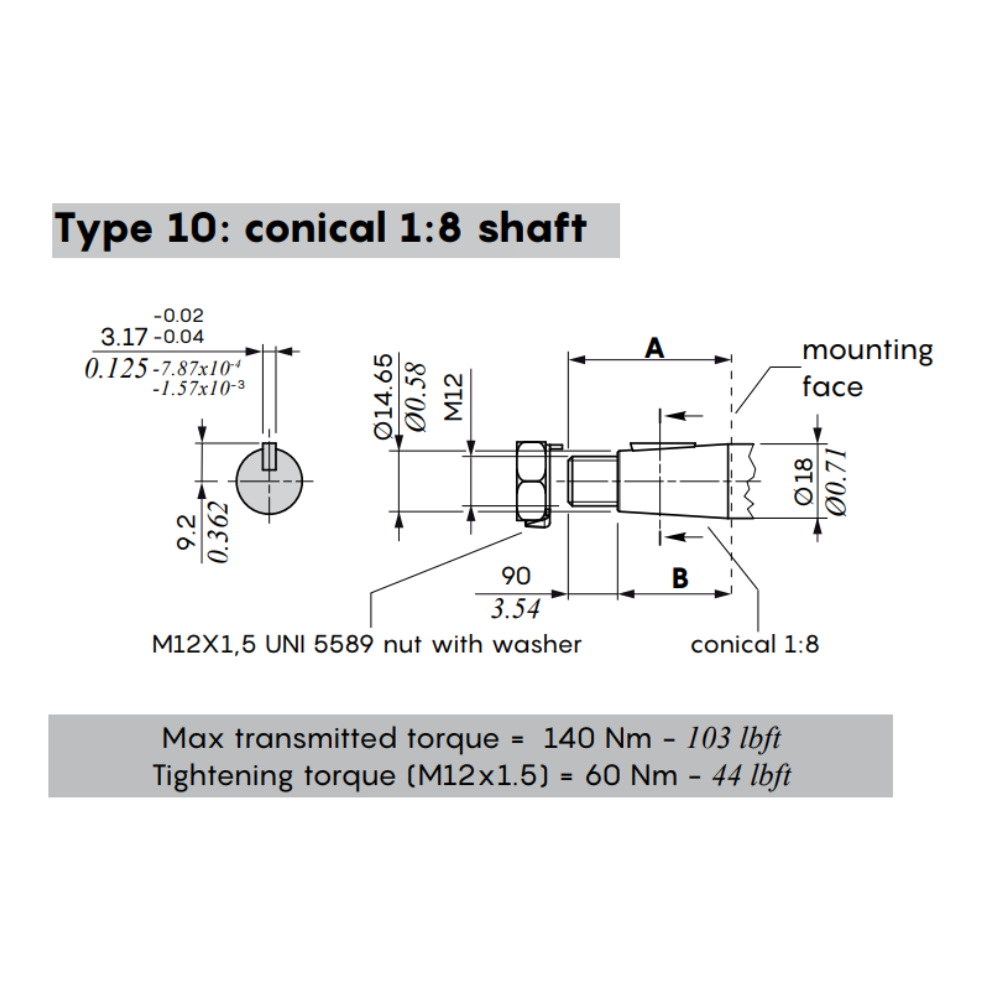

SHAFT
| Type | Displacement | P1 Max continuous pressure | P2 Max continuous pressure | P3 Max peak pressure | Rotation speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| cm3/rev | in3 /rev | Bar | PSI | Bar | PSI | Bar | PSI | Max (rpm) | Min (rpm) | |
| 2XM 040 | 4.1 | 0.25 | 250 | 3600 | 270 | 3900 | 290 | 4200 | 4000 | 500 |
| 2XM 060 | 6.1 | 0.37 | 250 | 3600 | 270 | 3900 | 290 | 4200 | 4000 | 500 |
| 2XM 080 | 8.7 | 0.53 | 250 | 3600 | 270 | 3900 | 290 | 4200 | 3500 | 500 |
| 2XM 110 | 11.2 | 0.68 | 250 | 3600 | 270 | 3900 | 290 | 4200 | 3500 | 500 |
| 2XM 140 | 14.2 | 0.86 | 250 | 3600 | 270 | 3900 | 290 | 4200 | 3500 | 500 |
| 2XM 160 | 16.8 | 1.02 | 230 | 3350 | 240 | 3500 | 250 | 3600 | 3500 | 500 |
| 2XM 190 | 19.8 | 1.2 | 210 | 3050 | 220 | 3200 | 230 | 3350 | 3500 | 500 |
| 2XM 220 | 22.9 | 1.39 | 190 | 2750 | 200 | 2900 | 210 | 3050 | 3000 | 500 |
| 2XM 260 | 26.4 | 1.61 | 170 | 2450 | 180 | 2600 | 190 | 2750 | 3000 | 500 |
| 2XM 290 | 29.1 | 1.77 | 150 | 2150 | 160 | 2300 | 170 | 2450 | 2500 | 500 |
| 2XM 310 | 31.5 | 1.92 | 130 | 1900 | 140 | 2000 | 150 | 2150 | 2500 | 500 |
WORKING CONDITIONS
Fluid: Hydraulic mineral oil based
Fluid temperature
With NBR (buna N) seals: from -20 to +80 °C (from -4 to +176 °F)
With FPM (viton) seals: from -15 to +100 °C (from +5 to +212 °F)
Viscosity
Recommended: from 15 to 92 mm2/s (cSt)
Permitted for starting: 2000 mm2/s (cSt)
Max level of contamination
Recommended for operating pressure > 150 bar (2150 psi) - 20/18/15 ISO 4406 class 9 (NAS 1638)
Recommended for operating pressure < 150 bar (2150 psi) - 21/18/15 ISO 4406 class 10 (NAS 1638)
Note: For motor configuration, please contact Sales Department.
