Bucher Solenoid Coil for EHI/EHE Pilot Electrovalves – 12V DC
200.6749.1003.0
Product Features:
Customers who bought this product also bought these
Solenoid Coil 12V DC for Bucher EHI/EHE Pilot Electrovalves (200.6749.1003.0)
The Bucher 200.6749.1003.0 solenoid coil is a 12V DC coil designed for EHI / EHE pilot electrovalves, commonly fitted to Bucher directional control valve assemblies. Rated for continuous operation (ED 100%), it’s an ideal replacement coil for demanding mobile and industrial hydraulic applications.
Built with Class F insulation (VDE 0580) and a sealed IP65 protection rating (DIN 40050), this coil offers dependable performance where dust and moisture are present. It also features a ±10% voltage tolerance and a 70°C stabilized temperature rating to help maintain consistent performance under load.
Typical Applications / Compatibility
Suitable for Bucher HDS15, HDS30, HDM18, and HDM25 valve assemblies when equipped with EHI or EHE pilot electrovalves.
Coil Characteristics
- Wire class: F (VDE 0580)
- Coil insulation / protection: IP65 (DIN 40050)
- Duty rating: ED 100% (continuous duty)
- Stabilized temperature: 70 °C
- Voltage tolerance: ±10%
Main Technical Table
| Supply Voltage | Nominal Coil Voltage | Power (W) | Resistance (Ω) Ambient temp. |
Resistance (Ω) Stabilized temp. |
Current (A) Ambient temp. |
Current (A) Stabilized temp. |
Coil Code |
|---|---|---|---|---|---|---|---|
| 12 V DC | 12 V DC | 18.7 | 7.7 | 10.8 | 1.56 | 1.11 | 200.6749.1003.0 |
| 24 V DC | 24 V DC | 18.6 | 31 | 41.4 | 0.77 | 0.58 | 200.6749.2003.0 |
| 110 V AC | 98 V DC | 15.6 | 630 | 825 | 0.157 | 0.120 | 200.6748.4003.0 |
| 220 V AC | 198 V DC | 15.7 | 2500 | 3300 | 0.08 | 0.06 | 200.6748.6003.0 |

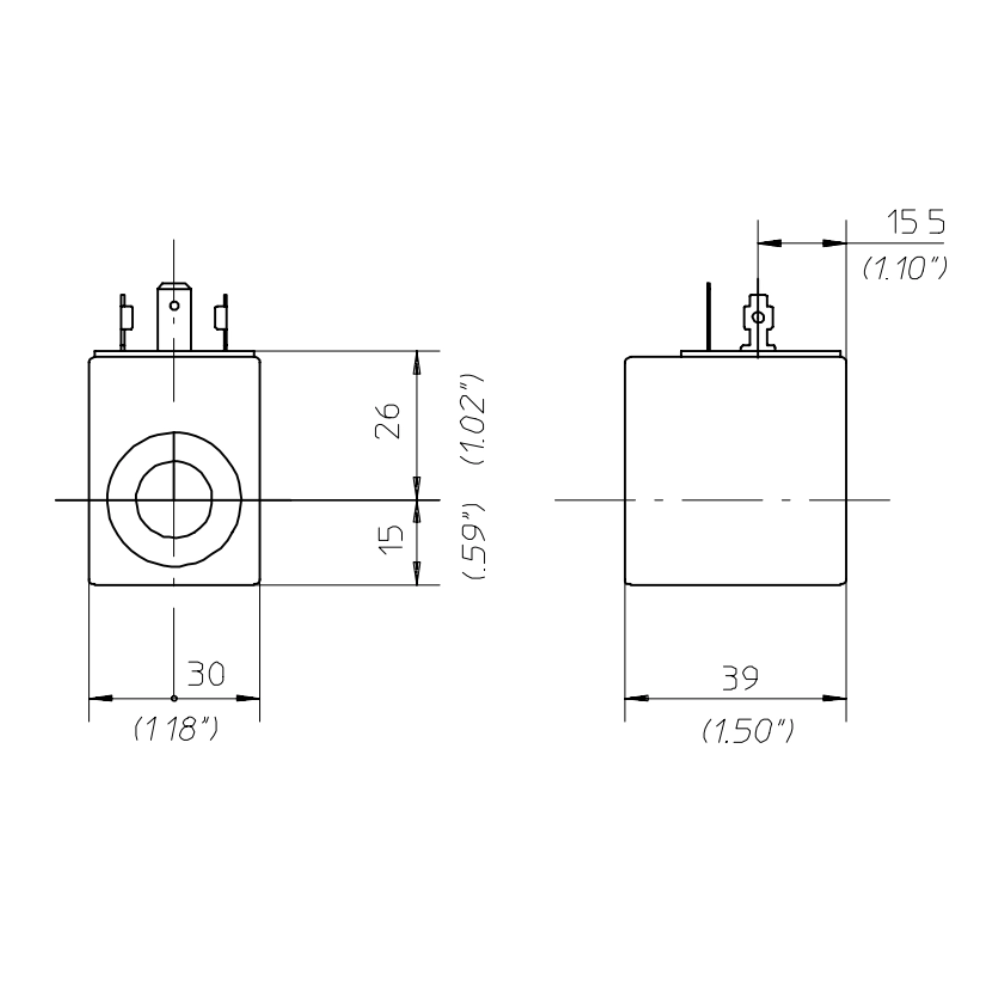

Dimensional Reference
- Width: 30 mm
- Height: 26 mm
- Depth: 39 mm
- Terminal height: 15.5 mm
