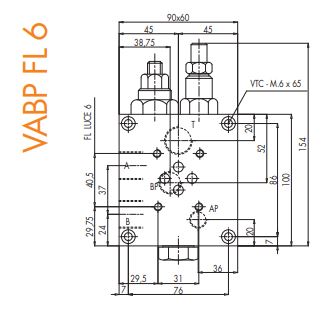

Hydraulic Two Pump "Hi-Low" Unloading Valve, Cetop 3 Manifold, VABP FL 6
V0518
Hydraulic Two Pump "Hi-Low" Unloading Valve, Flangeable (BASE NG6-NG10 AND NG16), VABP FL 6, Max Flow AP 20 L/min, BP 40 L/min BP, T 60 L/min, Max Pressure 350 bar, Low Pressure Max 100 Bar
Product Features:
Two Pump "Hi-Low" Hydraulic Unloading Valves
USE AND OPERATION:
In a circuit which is supplied by two parallel pumps, this valve unloads the larger pump to tank once the setting has been reached. From this point the actuator will only be supplied by the smaller pump at a higher pressure, therefore consuming less energy. It is designed for direct flange mounting onto solenoid valves.
MATERIALS AND FEATURES:
Body: burnished steel.
Internal components: grounded and hardened steel.
Seals: BUNA N standard
Leakage: Guided poppet - negligible leakage.
CONNECTIONS:
Fit the valve to the power pack by connecting BP to the high flow pump, AP to the low flow pump, T to the tank and M to the eventual manometer. Flange the solenoid valve to the VABP and connect ports A and B to the actuator.
Oil temperature 50° C – Oil viscosity: 30 cST
Valve | BP (Bar) | AP (Bar)
|
VABP FL 6 | 20-80 | 50-350 |
VABP FL 10 | 20-80 | 50-350 |
VABP 16 | 20-80 | 50-350 |
