Stainless Steel Hydraulic 90° Degree Rotating Coupling, 1/4" BSP
GX0990
Product Features:
Stainless Steel Hydraulic 90° Degree Rotating Coupling, 1/4" BSP
The Stainless Steel Hydraulic 90° Degree Rotating Coupling is designed to protect flexible hoses from torsion and rotational stress in hydraulic systems. With a maximum flow rate of 25 L/min, rotation pressure up to 200 bar, and maximum working pressure of 400 bar, this coupling ensures smooth operation and long-lasting reliability even under demanding conditions.
Mounted between the end of a flexible hose and a fixed component, this 90° swivel fitting compensates for hose movements, reducing wear and preventing damage. It’s ideal for hydraulic applications involving moderate rotational movement — not suitable for fast or continuous rotation.
Built from premium stainless steel, it offers superior corrosion resistance and mechanical strength, making it suitable for industrial, agricultural, marine, and construction environments.

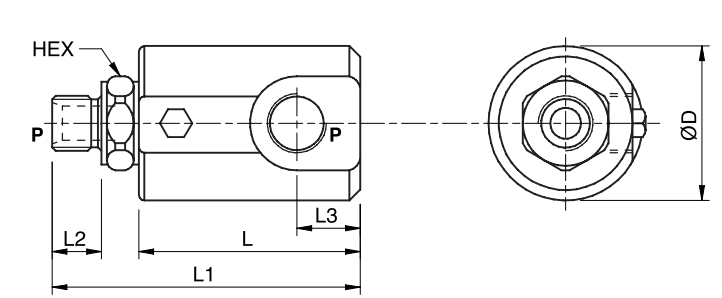

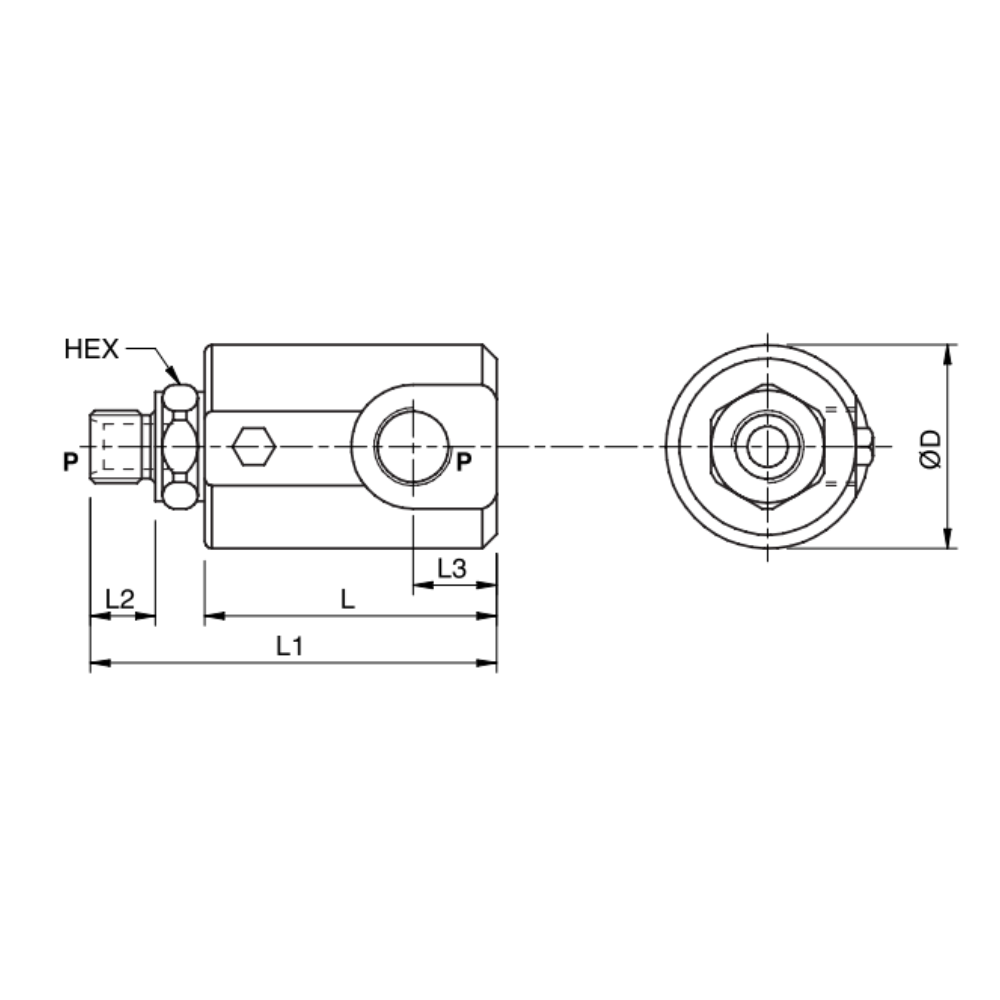

| Codice (Code) | Sigla (Type) | P (Gas) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | HEX (mm) | ØD (mm) | Peso (Weight Kg) |
|---|---|---|---|---|---|---|---|---|---|
| GX0990 | GG 90° 1/4" | 1/4" | 50 | 69 | 11 | 11 | 19 | 34 | 0.312 |
| GX1010 | GG 90° 3/8" | 3/8" | 54 | 76 | 14 | 13 | 24 | 38 | 0.418 |
| GX1020 | GG 90° 1/2" | 1/2" | 63 | 87 | 15 | 14 | 27 | 40 | 0.522 |
| GX1030 | GG 90° 3/4" | 3/4" | 74 | 104 | 19 | 19.5 | 34 | 54.5 | 0.898 |
| GX1040 | GG 90° 1" | 1" | 87 | 119 | 21 | 24 | 41 | 60 | 1.430 |
| GX1042 | GG 90° 1" 1/4 | 1 1/4" | 84 | 119.5 | 52 | 82 | 50 | 63 | 1.746 |
| GX1043 | GG 90° 1" 1/2 | 1 1/2" | 102 | 140 | 62 | 55 | 55 | 77 | 3.070 |
| GX1044 | GG 90° 2" | 2" | 107 | 151 | 64 | 107 | 65 | 84 | 3.300 |
