Hydraulic Single Pilot Operated Check Valve Flangeable, VBPSE 1/4" FL
V0268
Hydraulic Single Pilot Operated Check Valve Flangeable, VBPSE 1/4" FL, Pilot Ratio 1:8, Max Flow 20 l/min, Max Pressure 350 Bar, Cracking Pressure 4.5 Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Single Pilot Operated Check Valve Flangeable, VBPSE 1/4" FL

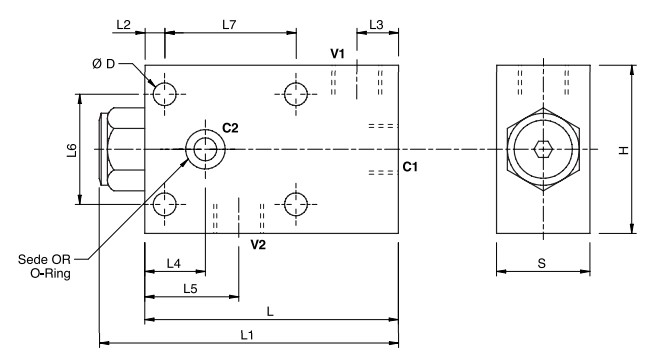

| CODE | TYPE | PILOT RATIO | MAX FLOW Lt. / min |
MAX PRESSURE Bar |
CRACKING PRESSURE Bar |
V1-V2 C1 |
C2 mm |
D mm |
L mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L5 mm |
L6 mm |
L7 mm |
H mm |
S mm |
O-RING mm |
WEIGHT Kg |
| V0268 | VBPSE 1/4” FL | 1:5 | 20 | 350 | 3 | G 1/4” | Ø5 | 6.5 | 70 | 74.5 | 6.5 | 13 | 15.5 | 27 | 35 | 35 | 50 | 30 | 1.78 X 11,11 | 1.028 |
| V0269 | VBPSE 3/8“ FL | 1:5 | 30 | 350 | 4.5 | G 3/8” | Ø6,5 | 6.5 | 75 | 88 | 10 | 14 | 14 | 29 | 40 | 35 | 60 | 30 | 1.78 X 11,11 | 0.924 |
| V0270 | VBPSE 1/2” FL | 1:4,5 | 55 | 350 | 5.5 | G 1/2” | Ø9 | 8.5 | 100 | 116 | 10.5 | 18 | 18 | 32 | 40 | 40 | 80 | 30 | 2.62 X 15.54 | 1.9 |
USE AND OPERATION:
These valves are used to block the cylinder in one direction. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. This valve can be fixed directly onto the cylinder.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: Guided poppet – negligible leakage.
CONNECTIONS:

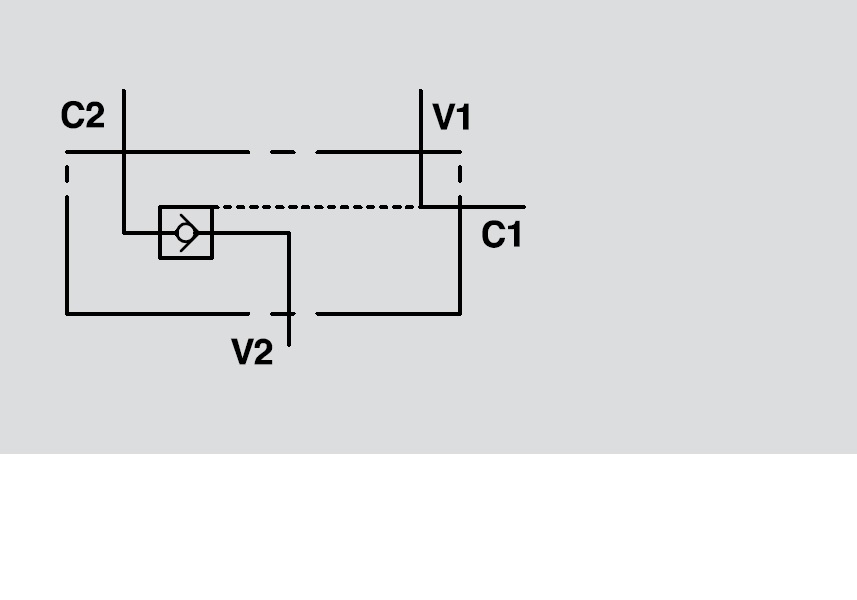

Connect V1 and V2 to the supply, C1 to the free flow side of the actuator and C2 to the actuator side you want the flow to be blocked.
ON REQUEST
- Without seal on pilot piston
- 1 Bar spring
- 8 Bar spring
Oil temperature: 50° C – Oil viscosity: 30 cSt
